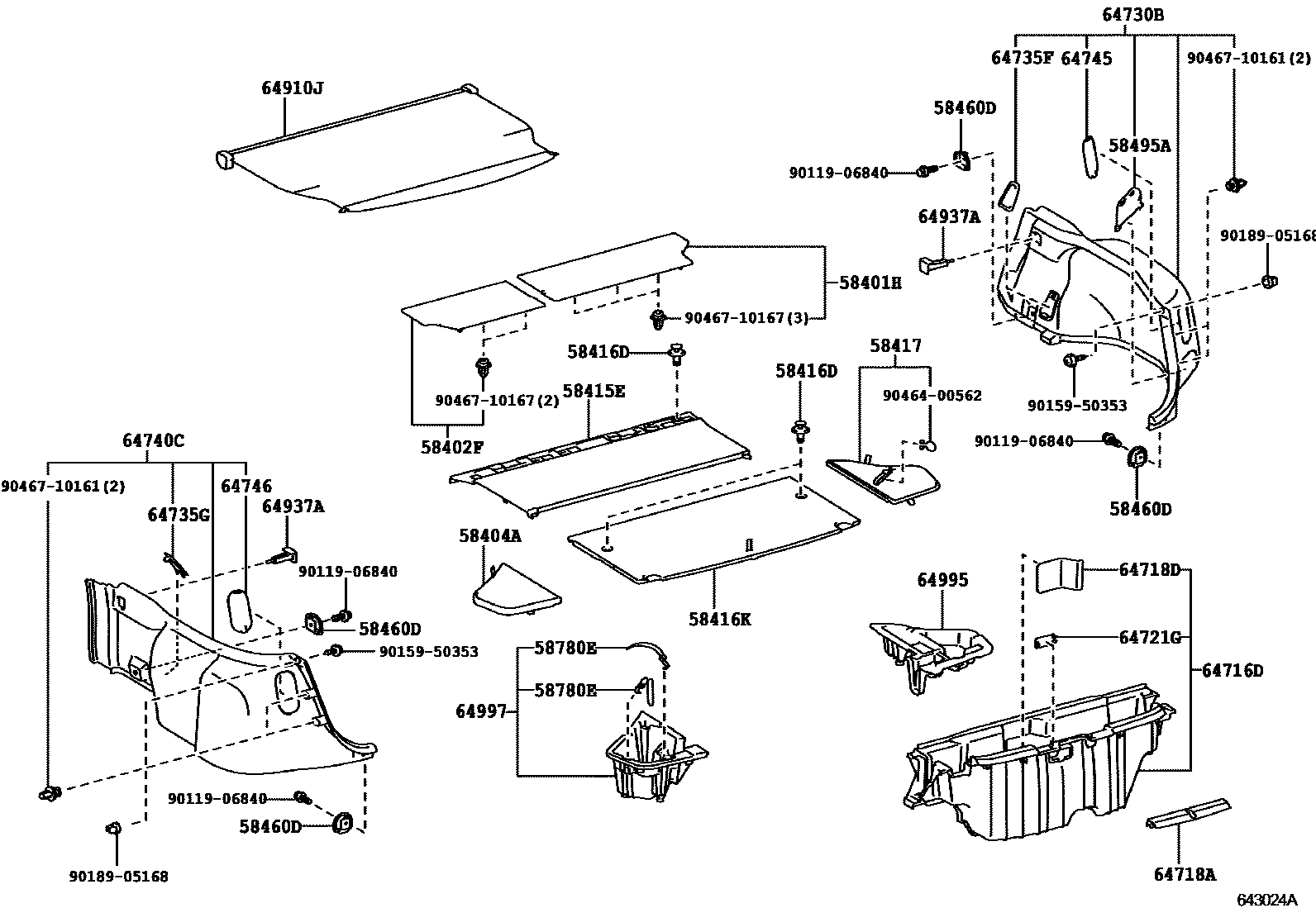

DECK BOARD & DECK TRIM COVER
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
LT.GRAY,TRIM2#,6#
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
LT.GRAY,TRIM2#,6#
58404ABOARD SUB-ASSY, REAR FLOOR, NO.4
LT.GRAY,TRIM2#,6#
58415EBOARD, REAR FLOOR, NO.1
LT.GRAY,TRIM2#,6#
58416DCLIP, REAR FLOOR BOARD
LT.GRAY,TRIM2#,6#
58416KBOARD, REAR FLOOR, NO.2
LT.GRAY,TRIM2#,6#
58417BOARD, REAR FLOOR, NO.3
LT.GRAY,TRIM2#,6#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58495APLATE, REAR FLOOR BOARD, UPPER NO.3
LT.GRAY,TRIM2#,6#
58780EBAND ASSY, TOOL BOX
64716DCOVER, DECK TRIM, REAR
LT.GRAY,TRIM2#,6#
64718ACOVER, DECK TRIM SERVICE HOLE
LT.GRAY,TRIM2#,6#
64718DCOVER, DECK TRIM SERVICE HOLE
LT.GRAY,TRIM2#,6#
64721GCOVER, DECK TRIM, NO.1
LT.GRAY,TRIM2#,6#
64730BPANEL ASSY, DECK TRIM SIDE, RH
LT.GRAY,TRIM2#,6#
64735FCOVER, DECK TRIM SIDE SERVICE HOLE, RH
LT.GRAY,TRIM2#,6#
64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH
LT.GRAY,TRIM2#,6#
64740CPANEL ASSY, DECK TRIM SIDE, LH
LT.GRAY,TRIM2#,6#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
LT.GRAY,TRIM2#,6#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
LT.GRAY,TRIM2#,6#
64910JCOVER ASSY, TONNEAU
64937ACAP, TONNEAU COVER HOLDER, NO.1
LT.GRAY,TRIM2#,6#
64995BOX, DECK FLOOR, RH
LT.GRAY,TRIM2#,6#
64997BOX, DECK FLOOR, LH
LT.GRAY,TRIM2#,6#
9011906840
main90119-06840
9015950353
main90159-50353
9018905168
main90189-05168
9046400562
main90464-00562
9046710161
main90467-10161
9046710167
main90467-10167
30 parts on this diagram · 1 diagram in section
