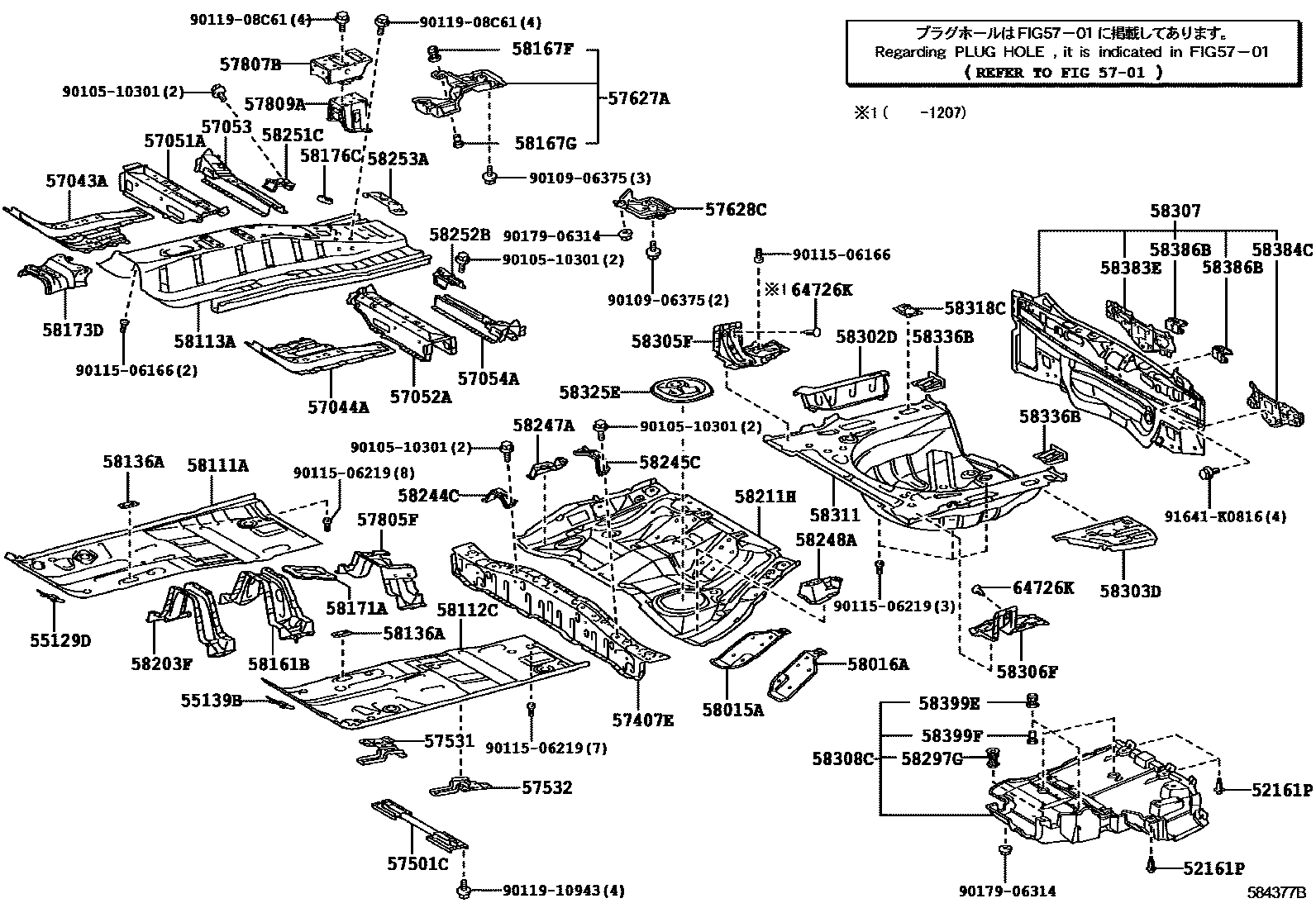

FLOOR PAN & LOWER BACK PANEL
52161PPIECE, REAR BUMPER
sub52161-0K040
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57627ACOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58167FCLIP, NO.1(FOR FLOOR UNDER COVER)
SUPER WHITE 2
58167GCLIP, NO.2(FOR FLOOR UNDER COVER)
BLACK
BLACK
58171AREINFORCE, PARKING BRAKE BASE
58173DBRACKET, COMPUTER MOUNTING, NO.4
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58211HPAN, CENTER FLOOR
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253ABRACKET, PARKING CABLE CLAMP
58297GRETAINER, FLOOR CLAMP
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308CCOVER SUB-ASSY, REAR FLOOR STEP UNDER
58311PAN, REAR FLOOR
58318CBRACKET, REAR FLOOR CROSSMEMBER
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58399ECLIP, NO.1(FOR FLOOR UNDER COVER)
SUPER WHITE 2
58399FCLIP, NO.2(FOR FLOOR UNDER COVER)
BLACK
BLACK
64726KCLIP, LUGGAGE TRIM, REAR
9010510301
main90105-10301
9010906375
main90109-06375
9011506166
main90115-06166
9011506219
main90115-06219
9011908C61
main90119-08C61
9011910943
main90119-10943
9017906314
main90179-06314
91641K0816
main91641-K0816
65 parts on this diagram · 1 diagram in section
