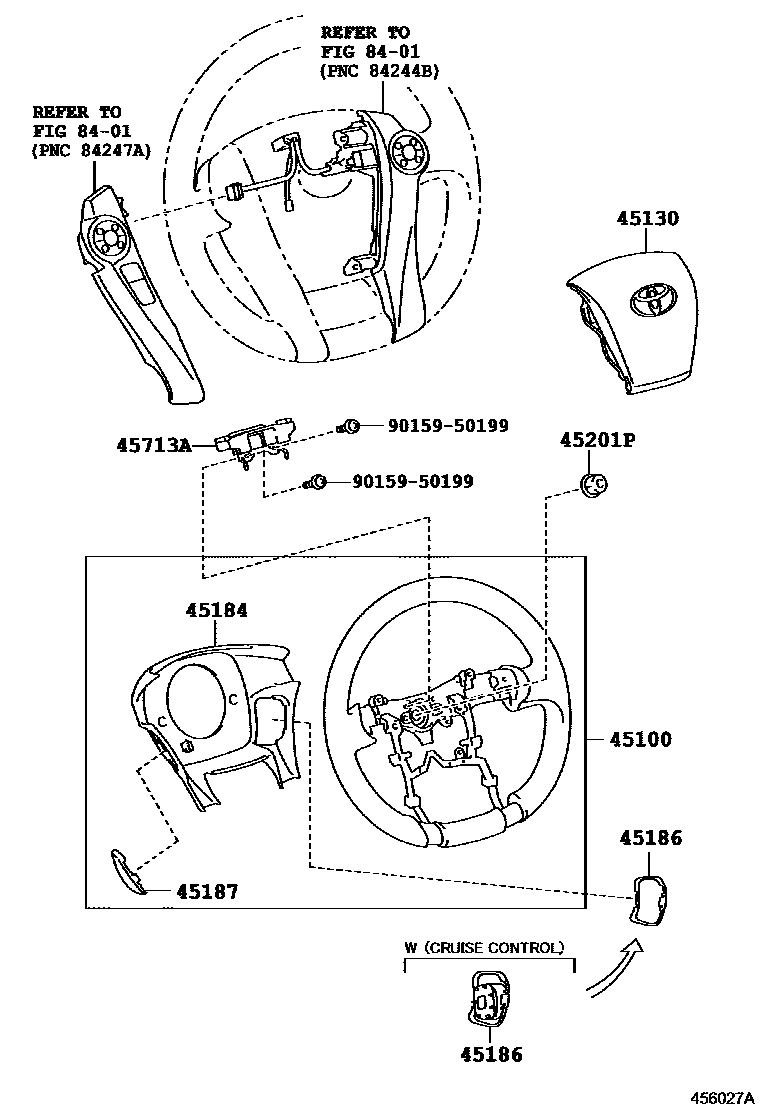

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47130-C0iZVW35201205-201310

4-SPOKE,LEATHER,BLACK,TRIM2#,6#

main45100-47210-C0iZVW35201310-201604

4-SPOKE,LEATHER,BLACK,TRIM2#,6#

45130BUTTON ASSY, HORN

main45130-47100-C0iZVW35201205-201604

BLACK,TRIM2#,6#

sub45130-47100

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47010-C0iZVW35201205-201604

BLACK,TRIM2#,6#

sub45184-47010

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47030-C0iZVW35201205-201604

BLACK,TRIM2#,6#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47010-C0iZVW35201205-201604

BLACK,TRIM2#,6#

sub45187-47010

45201PNUT, STEERING WHEEL SET

main90179-12071iZVW35201205

45713ADAMPER, STEERING SHAKE

main45713-47030iZVW35201205

8401

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
