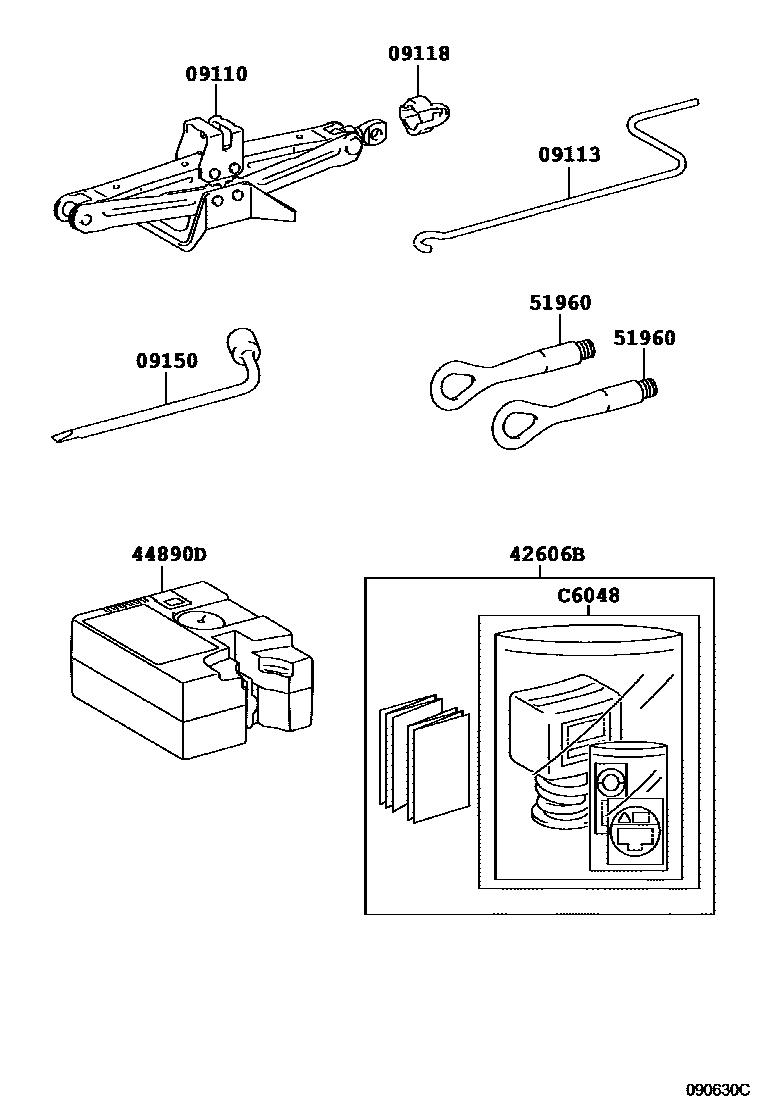

STANDARD TOOL

09110JACK ASSY

main09111-30190iZVW35201208

main09111-33030iZVW35201205-201207

sub09111-76010

09113HANDLE, JACK

main09113-52031iZVW35201205

09118COVER, JACK

main09118-47020iZVW35201301

09150WRENCH, HUB NUT BOX

main09150-35070iZVW35201205-201303

main09150-76010iZVW35201304

42606BREPAIR KIT, TUBELESS TIRE

main42606-47060iZVW35201205

44890DCOMPRESSOR ASSY, AIR

main44890-74021iZVW35201205-201209

sub44890-74022

main44890-74022iZVW35201210

51960HOOK ASSY, FRONT

main51961-50041iZVW35201205-201305

sub51961-50042

main51961-50042iZVW35201305

C6048REPAIR SET, TIRE

mainC604874041iZVW35201205-201209

subC6048-74042

mainC604874042iZVW35201210-201405

subC6048-74043

mainC604874043iZVW35201406

sub42606-47060

8 parts on this diagram · 1 diagram in section
