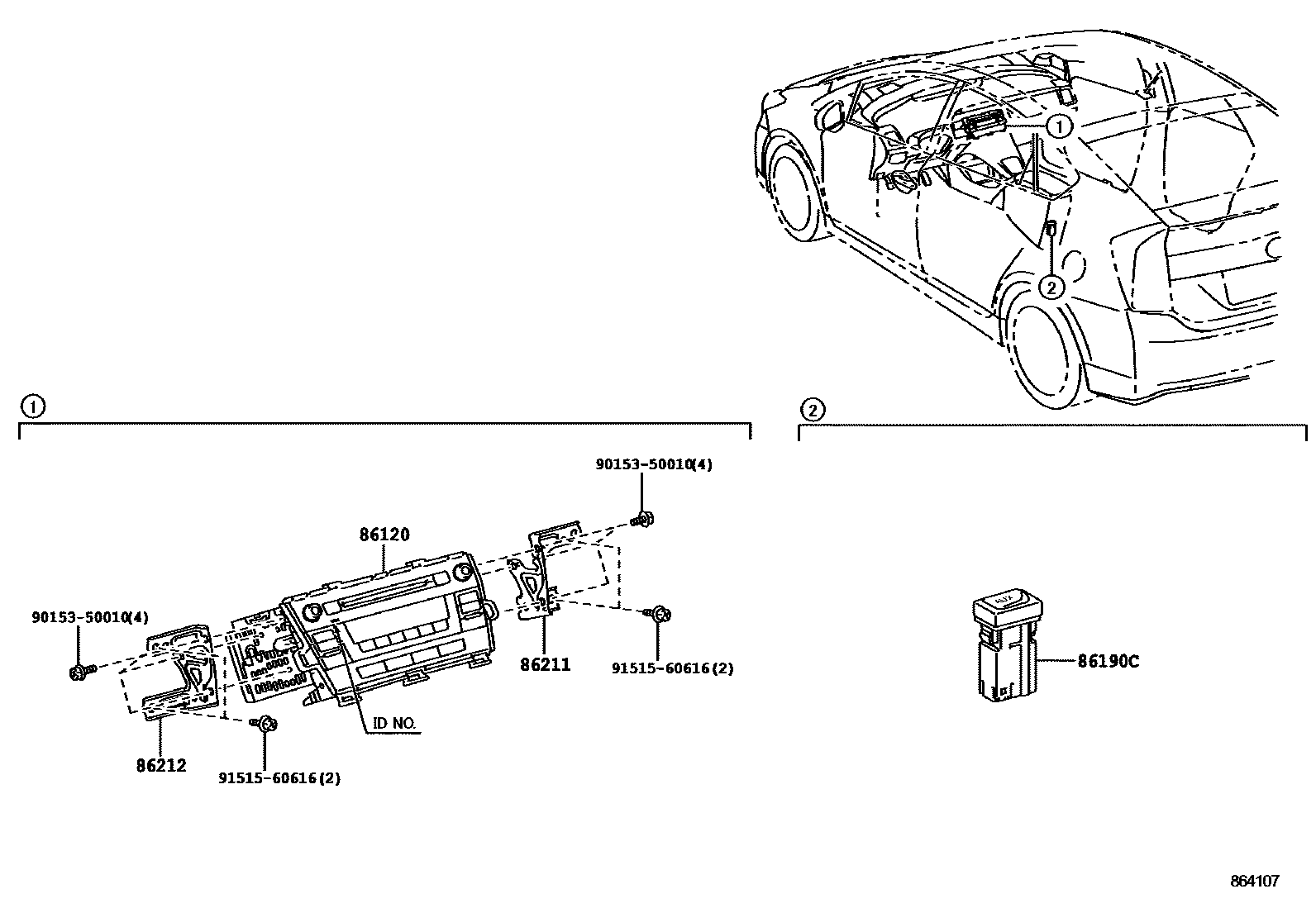

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-47300iZVW35..RHD200912-201007

FUJITSU TEN,ID=13825

main86120-47301iZVW35..RHD201008

FUJITSU TEN,ID=13847

main86120-47330iZVW35..LHD200912-201007

FUJITSU TEN,ID=13822

main86120-47331iZVW35..LHD201008

FUJITSU TEN,ID=13846

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48010iZVW35200912-201010

86211BRACKET, RADIO, NO.1

main86211-47060iZVW35200912-201010

86212BRACKET, RADIO, NO.2

main86212-47060iZVW35200912-201010

9015350010

main90153-50010

9151560616

main91515-60616

6 parts on this diagram · 2 diagrams in section
