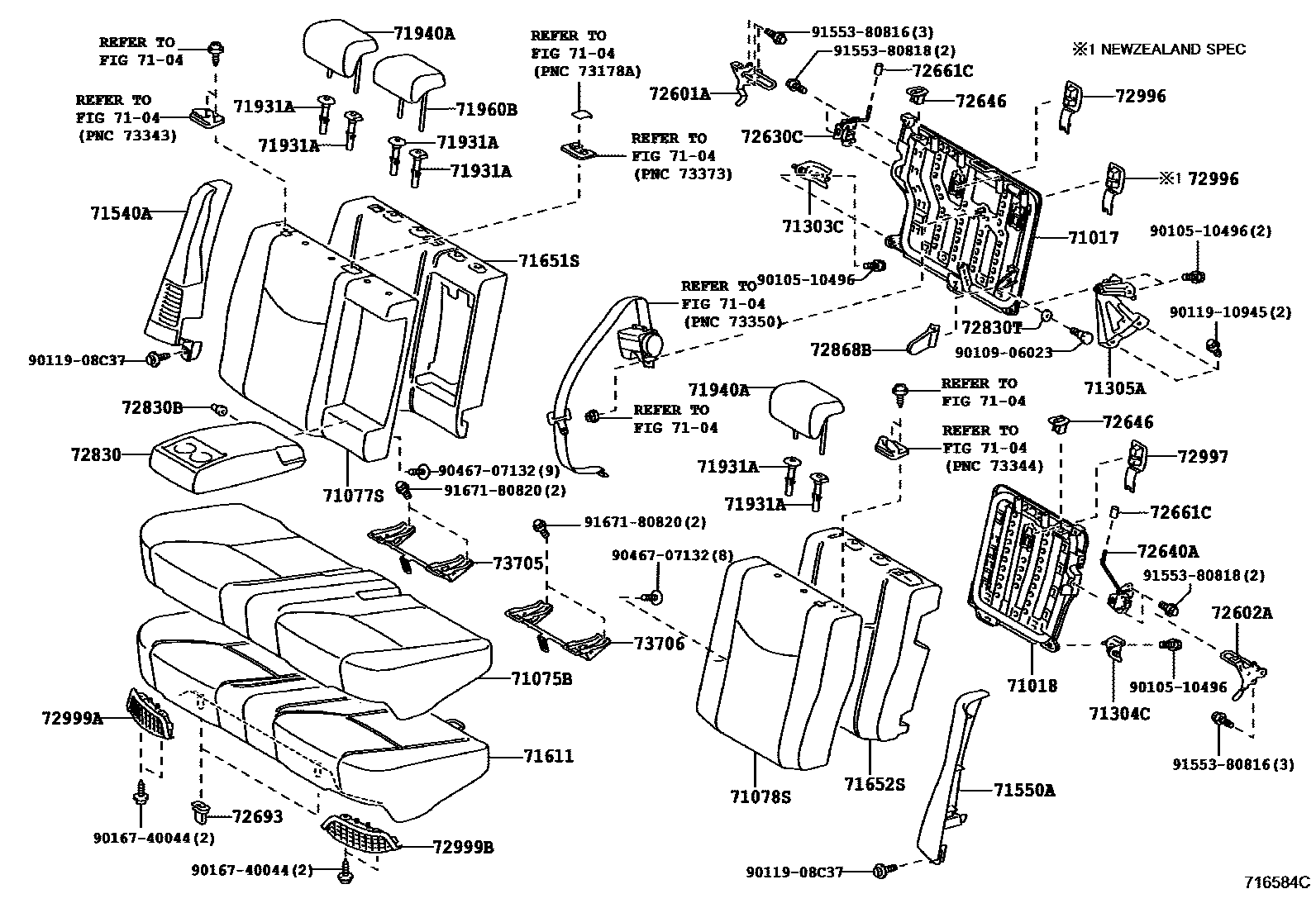

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47090iZVW35200912-201010

main71017-47110iZVW35..RHD200912-201010

NEW ZEALAND SPEC

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47050iZVW35200912-201010

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47160-G1iZVW35200912-201010

AQUA,TRIM6#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47340-G0iZVW35200912-201010

AQUA/LT.GRAY,TRIM6#

main71077-47360-G0iZVW35..RHD200912-201010

NEW ZEALAND SPEC,AQUA/LT.GRAY,TRIM6#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47220-G0iZVW35200912-201010

AQUA/LT.GRAY,TRIM6#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47020iZVW35200912-201010

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47020iZVW35200912-201010

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47030iZVW35200912-201010

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-47040-G1iZVW35200912-201010

AQUA,TRIM6#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-47040-G1iZVW35200912-201010

AQUA,TRIM6#

71611PAD, REAR SEAT CUSHION

main71503-47070iZVW35200912-201010

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47120iZVW35200912-201010

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47060iZVW35200912-201010

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020-G0×3iZVW35200912-201010

W(LOCK),AQUA,TRIM6#

main71931-47020-G0×3iZVW35200912-201010

W/O(LOCK),AQUA,TRIM6#

71940AHEADREST ASSY, REAR SEAT

main71940-47120-G1×2iZVW35200912-201010

AQUA,TRIM6#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47070-G1iZVW35200912-201010

AQUA,TRIM6#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47030iZVW35200912-201010

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47020iZVW35200912-201010

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47030iZVW35200912-201010

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47030iZVW35200912-201010

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-47010-G0×2iZVW35200912-201010

AQUA,TRIM6#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-G1×2iZVW35200912-201010

AQUA,TRIM6#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iZVW35200912-201010

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47080-G1iZVW35200912-201010

AQUQ,TRIM6#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010iZVW35200912-201010

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020iZVW35200912-201010

72868BCOVER, CENTER ARMREST HINGE

main72868-47020-G0iZVW35200912-201010

AQUA,TRIM6#

72996COVER, REAR SEATBACK, RH

main72996-47030-B0iZVW35200912-201010

LT.GRAY,TRIM1#,6#

72997COVER, REAR SEATBACK, LH

main72996-47030-B0iZVW35200912-201010

LT.GRAY,TRIM1#,6#

72999ACOVER, REAR SEAT CUSHION SIDE, RH

main72999-47030-G0iZVW35200912-201010

AQUA,TRIM6#

72999BCOVER, REAR SEAT CUSHION SIDE, LH

main72999-47040-G0iZVW35200912-201010

AQUA,TRIM6#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47040iZVW35200912-201010

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47050iZVW35200912-201010

9010510496

main90105-10496

9010906023

main90109-06023

9011908C37

main90119-08C37

9011910945

main90119-10945

9016740044

main90167-40044

9046707132

main90467-07132

9155380816

main91553-80816

9155380818

main91553-80818

9167180820

main91671-80820

43 parts on this diagram · 1 diagram in section
