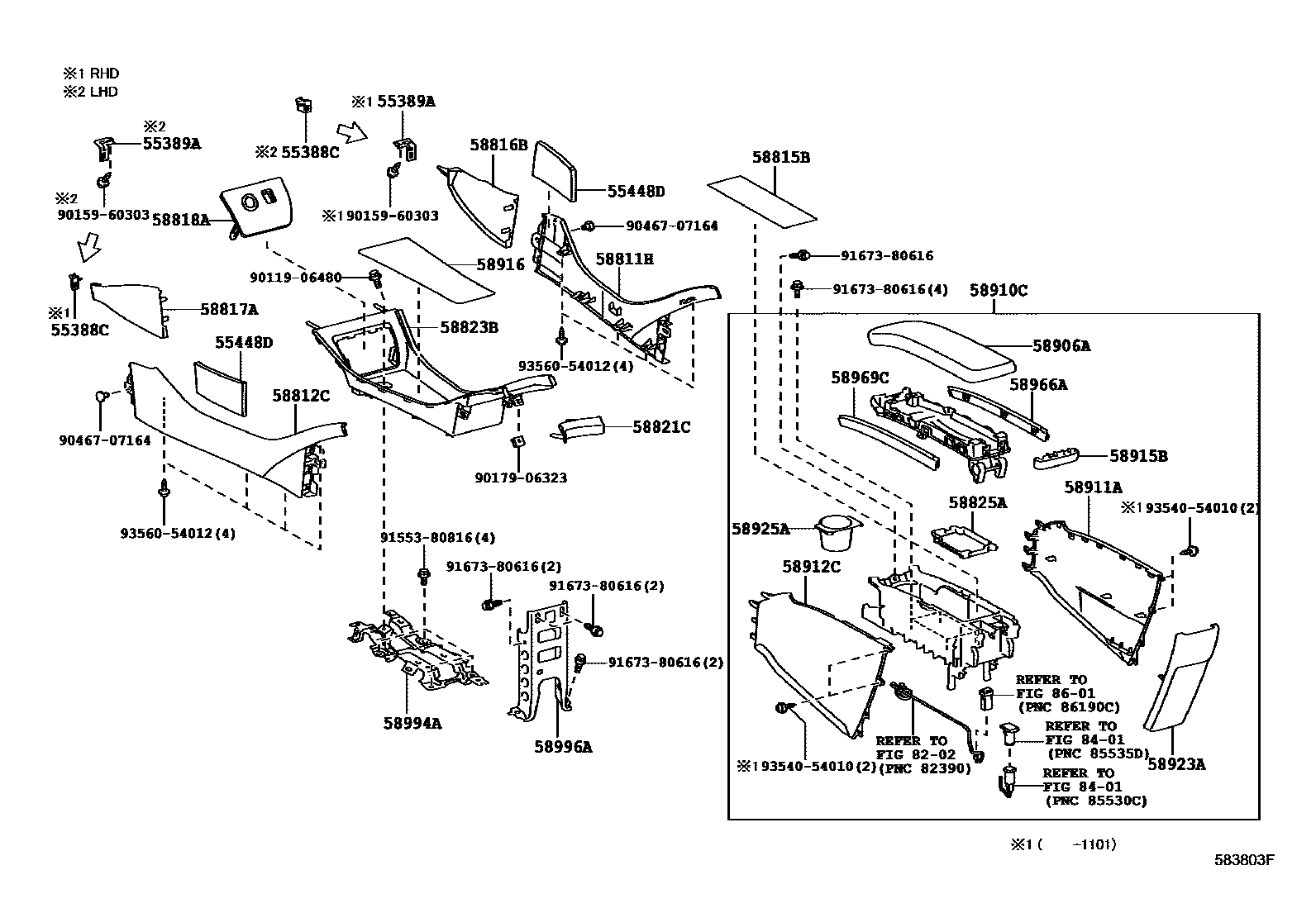

CONSOLE BOX & BRACKET
55448DCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
58811HBOX, CONSOLE, RH
AQUA,TRIM6#
58812CBOX, CONSOLE, LH
AQUA,TRIM6#
58815BCARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
AQUA,TRIM6#
AQUA,TRIM6#
58817AINSERT, CONSOLE BOX, FRONT NO.2
AQUA,TRIM6#
AQUA,TRIM6#
58818ACOVER, CONSOLE BOX, FR
AQUA,TRIM6#
AQUA,TRIM6#
58821CPANEL, CONSOLE, UPPER
58823BBOX, CONSOLE COMPARTMENT
AQUA,TRIM6#
58825APOCKET, CONSOLE BOX
58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
MIST GRAY,TRIM6#
58910CBOX ASSY, CONSOLE, REAR
58911APANEL, BOX SIDE, NO.1
58912CPANEL, BOX SIDE, NO.2
58915BCOVER, CONSOLE COMPARTMENT DOOR BOX, REAR
AQUA,TRIM6#
58916MAT, BOX BOTTOM
GRAY,TRIM6#
58923APANEL, CONSOLE REAR END
58925APOCKET, CONSOLE BOX, REAR
58966AINSERT, CONSOLE COMPARTMENT DOOR, NO.1
AQUA,TRIM6#
58969CINSERT, CONSOLE COMPARTMENT DOOR, NO.2
AQUA,TRIM6#
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8202
8401
8601
9011906480
main90119-06480
9015960303
main90159-60303
9017906323
main90179-06323
9046707164
main90467-07164
9155380816
main91553-80816
9167380616
main91673-80616
9354054010
main93540-54010
9356054012
main93560-54012
35 parts on this diagram · 1 diagram in section
