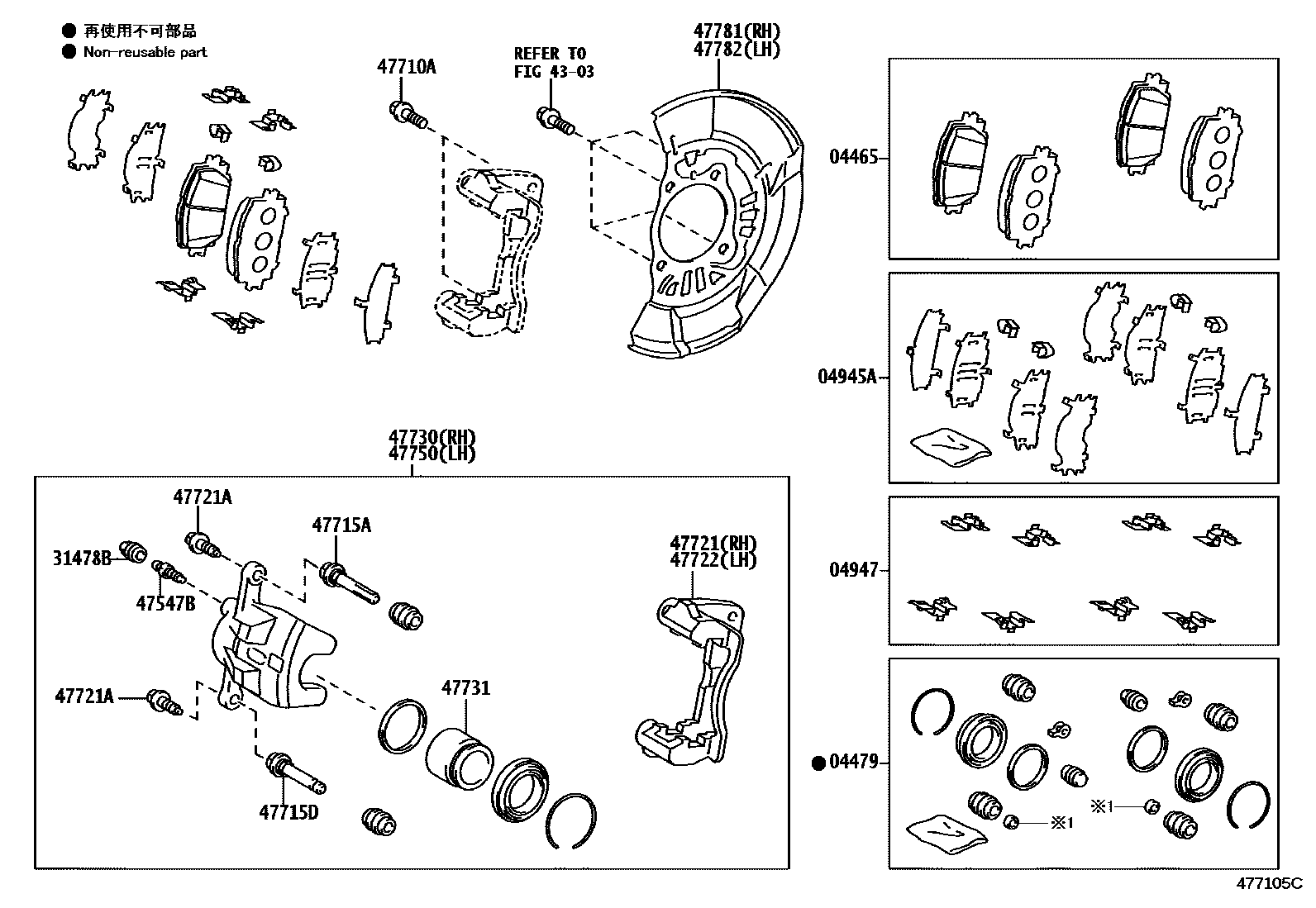

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W141iZVW35200912

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-47010iZVW35200912-201010

sub04478-47040

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-47020iZVW35200912-201010

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZVW35200912-201011

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-50020iZVW35200912

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZVW35200912

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-C1250iZVW35200912

*12-1.25PX50-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZVW35200912

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZVW35200912

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-47060iZVW35200912

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZVW35200912

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-47060iZVW35200912

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-47060iZVW35200912

47731PISTON, FRONT DISC BRAKE

main47731-47060iZVW35200912

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-47060iZVW35200912

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-47030iZVW35200912

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-47020iZVW35200912

18 parts on this diagram · 1 diagram in section
