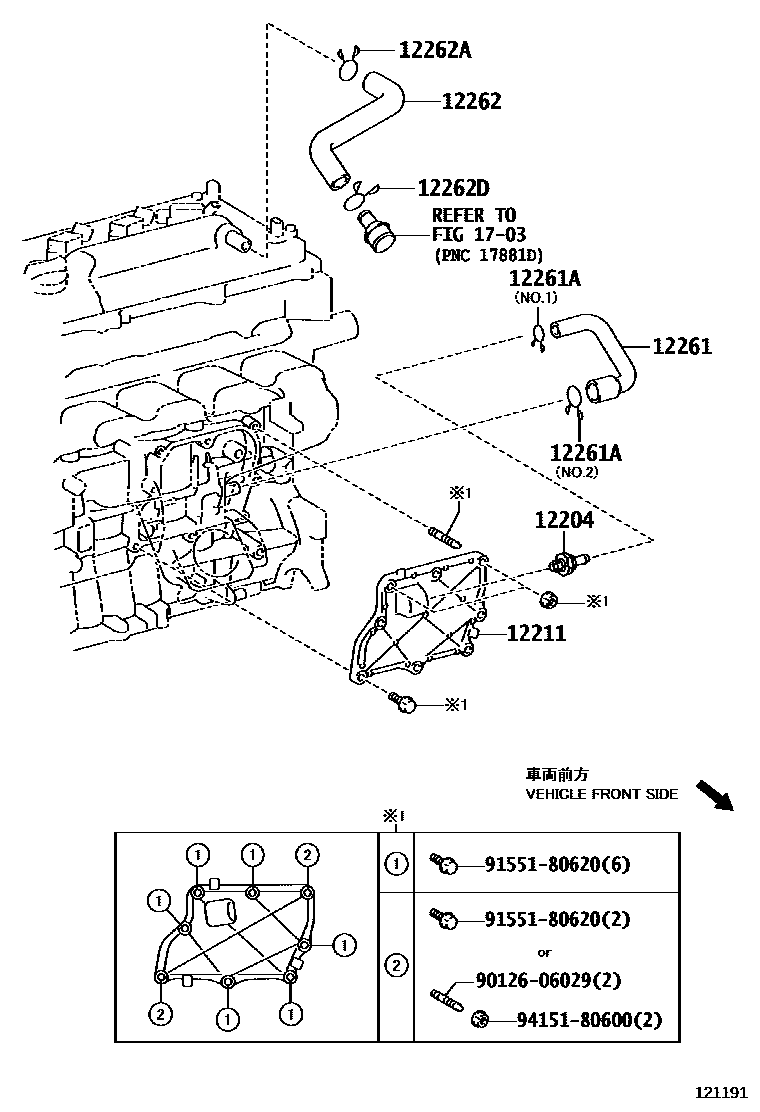

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-37010i2ZRFXE..ZVW35200912

12211CASE, VENTILATION, NO.1

main12211-37010i2ZRFXE..ZVW35200912

12261HOSE, VENTILATION

main12261-37060i2ZRFXE..ZVW35200912

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i2ZRFXE..ZVW35200912

NO.1

main90467-23002i2ZRFXE..ZVW35200912

NO.2

12262HOSE, VENTILATION, NO.2

main12262-37040i2ZRFXE..ZVW35200912-201003

main12262-37041i2ZRFXE..ZVW35201003

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE..ZVW35200912

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE..ZVW35200912

1703AIR CLEANER

→ Go to FIG 17-03

9012606029

main90126-06029

9155180620

main91551-80620

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
