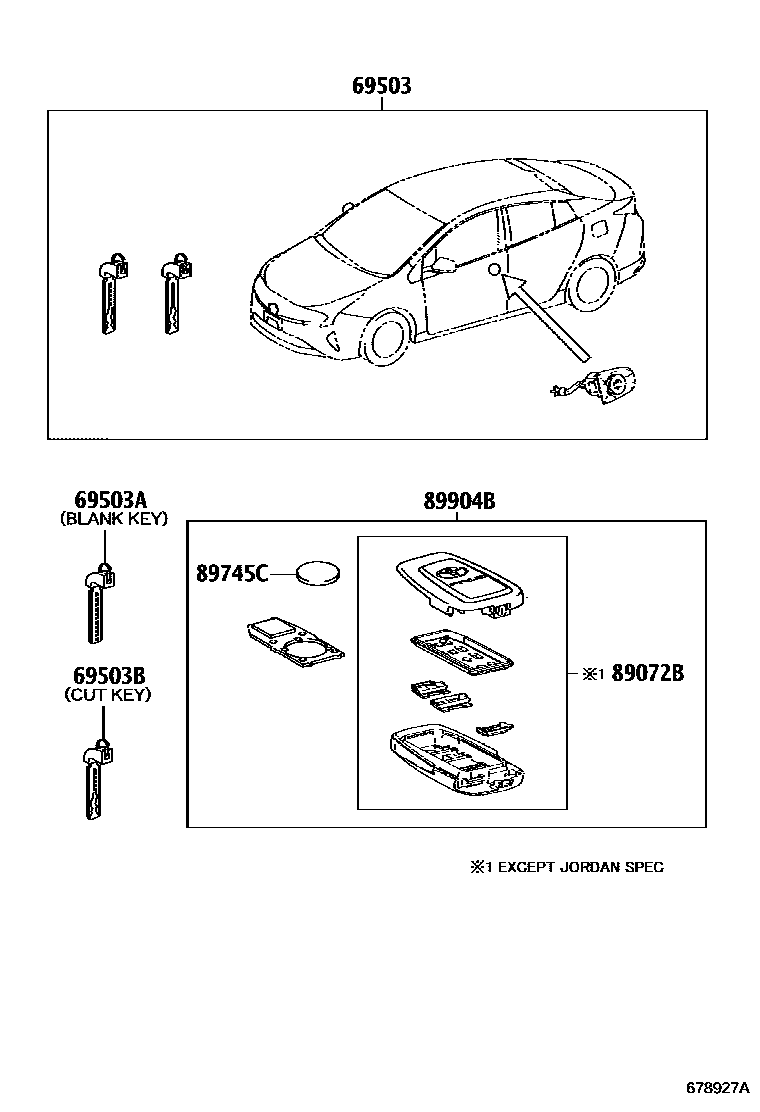

LOCK CYLINDER SET
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
MASTER KEY,W(*68)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
BRASIL SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT; CHILE SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT
BRAZIL SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(DRIVER) & W(PANIC BUTTON)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ); TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&INDIA SPEC&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM&SPARE TIRE-GROUND TIRE
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&INDONESIA SPEC&TIRE& DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
89745CBATTERY, TRANSMITTER
CR2032
CR2032,BRASIL SPEC&SPARE TIRE-GROUND TIRE&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITHOUT; CR2032,CHILE SPEC&SPARE TIRE-GROUND TIRE&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITHOUT; CR2032,TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(DRIVER) & W(PANIC BUTTON)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ); CR2032,TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
BRASIL SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT; CHILE SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT
JORDAN SPEC&SPARE TIRE-GROUND TIRE&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&PAKISTAN SPEC&TIRE& DISC WHEEL-195/65R15,6.5J,ALUMINUM&SPARE TIRE-GROUND TIRE&SMART ENTRY-W(FRONT DOOR & BACK DOOR)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&INDIA SPEC&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM&SPARE TIRE-GROUND TIRE
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&PAKISTAN SPEC&TIRE& DISC WHEEL-195/65R15,6.5J,ALUMINUM,INDIA&SPARE TIRE-GROUND TIRE&SMART ENTRY-W(FRONT DOOR & BACK DOOR)
BRAZIL SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&HONG KONG,MACAO SPEC&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
CHILE SPEC&SPARE TIRE-GROUND TIRE&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ); CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17)&SMART ENTRY-W(FRONT DOOR & BACK DOOR)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SMART ENTRY-W(FRONTDOOR & BACK DOOR)
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&INDONESIA SPEC&TIRE& DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
6 parts on this diagram · 2 diagrams in section
