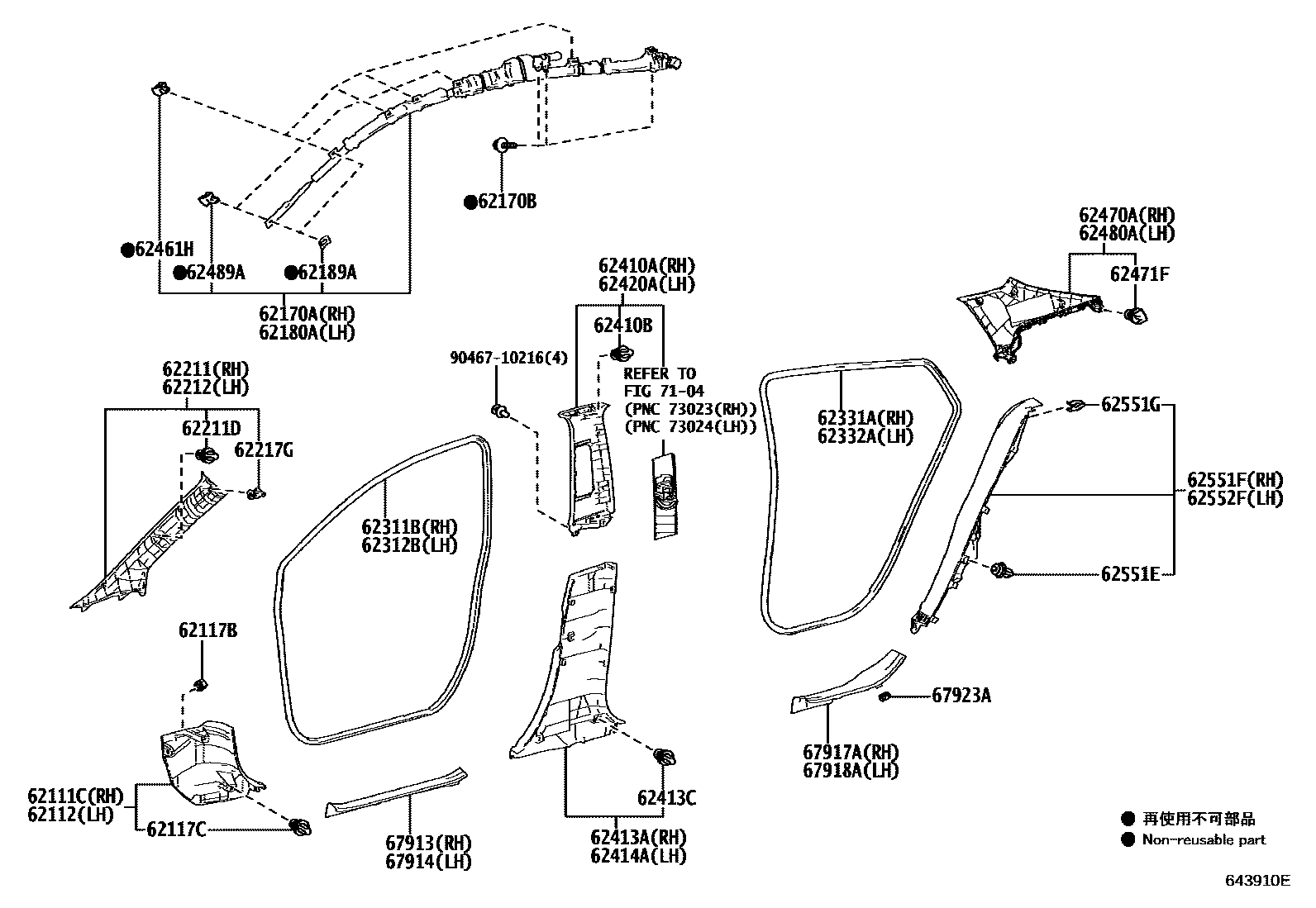

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#,2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170BBOLT, W/WASHER
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
COOL GRAY,TRIM1#,2#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
COOL GRAY,TRIM1#,2#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
62410BCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#
62420AGARNISH ASSY, CENTER PILLER, LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
62489ACLIP, ROOF SIDE INNER GARNISH
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM1#,2#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM1#,2#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
9046710216
main90467-10216
38 parts on this diagram · 1 diagram in section
