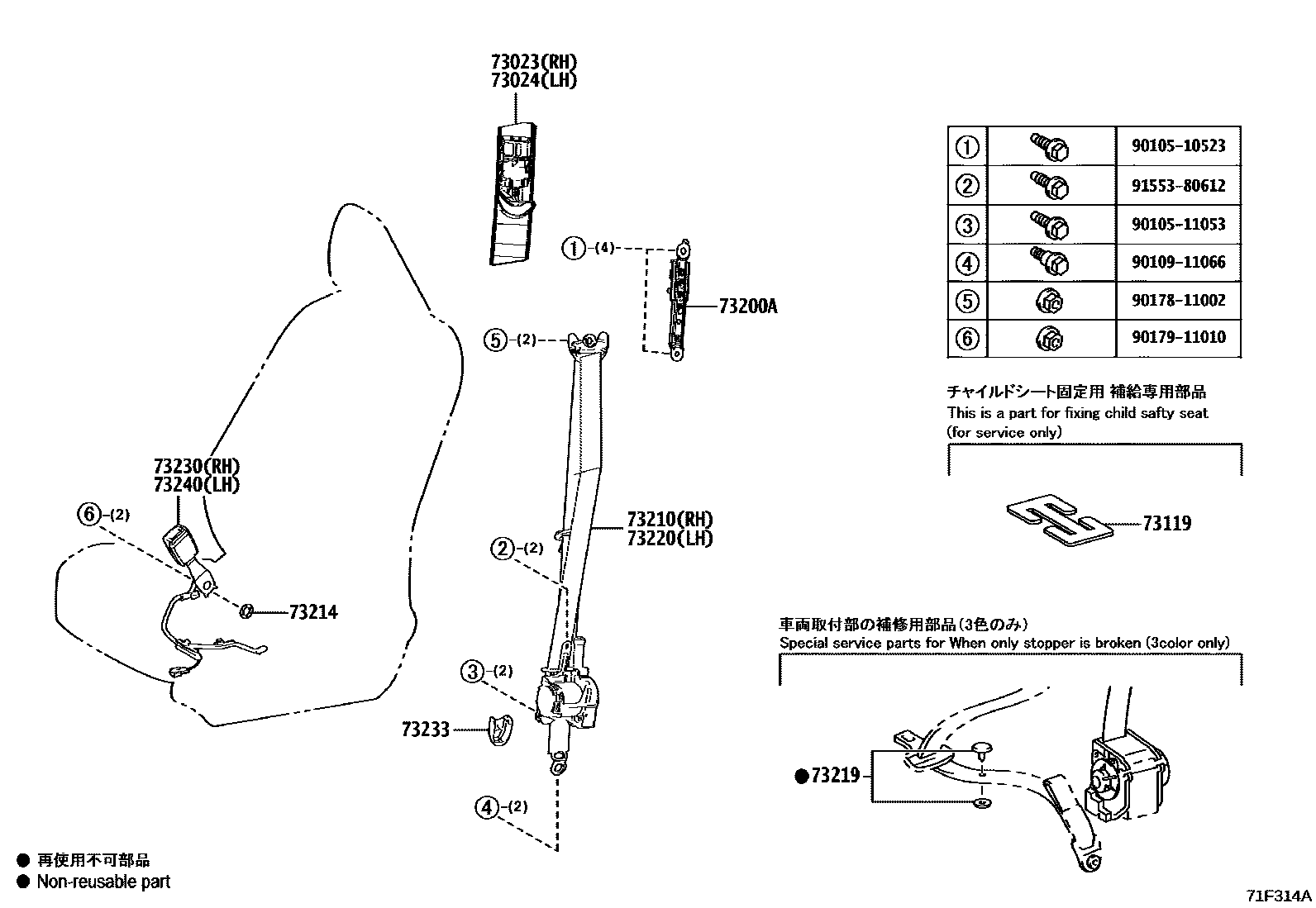

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iZVW60;MXWH61..H202212

BLACK,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iZVW60;MXWH61..H202212

BLACK,TRIM1#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMXWH61,ZVW60202212

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iMXWH61,ZVW60202212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47282-C7iZVW60;MXWH61..H202212

BLACK/BLACK,TRIM1#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iMXWH61,ZVW60202212

73219STOPPER, TONGUE PLATE

main73219-33010iMXWH61,ZVW60202212

BLACK

main73219-33020iMXWH61,ZVW60202212

GRAY

main73219-33030iMXWH61,ZVW60202212

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47222-C7iZVW60;MXWH61..H202212

BLACK/BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47570-C0iZVW60..RHD202212

BLACK,TRIM1#,2#

main73230-47600-C0iZVW60..LHD202212

BLACK,TRIM1#,2#

main73230-47610-C0supersedes 73230-47590-C0iMXWH61..RHD..H202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iZVW60;MXWH61..H202212

BLACK,TRIM1#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-47600-C0iZVW60..RHD;MXWH61..RHD..H202212

BLACK,TRIM1#,2#

main73240-47120-C0iZVW60..LHD202212

BLACK,TRIM1#,2#

main73240-47180-C0supersedes 73240-47120-C0iMXWH61..LHD..E; MXWH61..LHD..H202303

BLACK,TRIM2#; FRONT SEAT-*DRS(POWER SEAT),SPORTY,BLACK,TRIM2#

main73240-47190-C0iMXWH61..LHD..H202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

17 parts on this diagram · 2 diagrams in section
