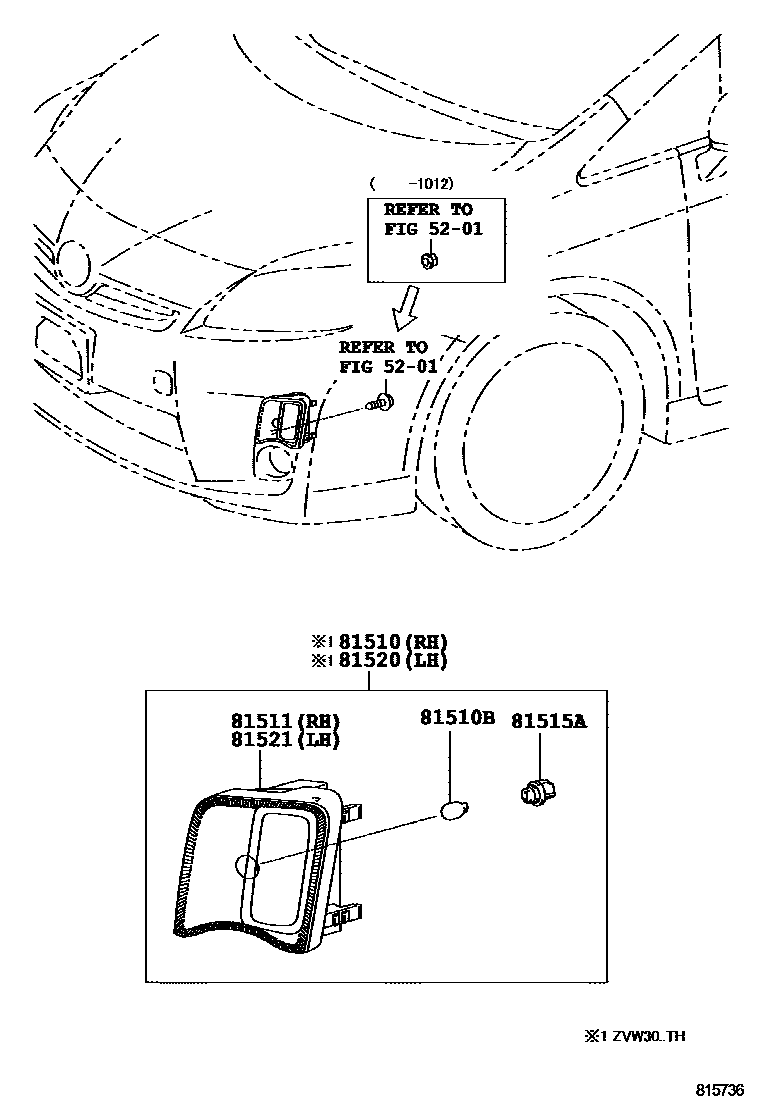

FRONT TURN SIGNAL LAMP

0001 1 0003 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-47011iZVW30..TH201012-201102

main81510-47012iZVW30..TH201102-201204

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZVW30..ARL,EUR200904-201112

12V 21W,AMBER

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-47010iZVW30200904-200907

main81511-47011iZVW30..TH201012-201102

main81511-47012iZVW30..TH201102-201204

main81511-47040iZVW30..TH201204

main81511-47050iZVW30..ARL,EUR201112

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-60028×2iZVW30..ARL,EUR200904-201112

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-47011iZVW30..TH201012-201102

main81520-47012iZVW30..TH201102-201204

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-47010iZVW30200904-200907

main81521-47011iZVW30..TH201012-201102

main81521-47012iZVW30..ARL,EUR201012-201112

main81521-47040iZVW30..TH201204

main81521-47050iZVW30..ARL,EUR201112

7 parts on this diagram · 2 diagrams in section
