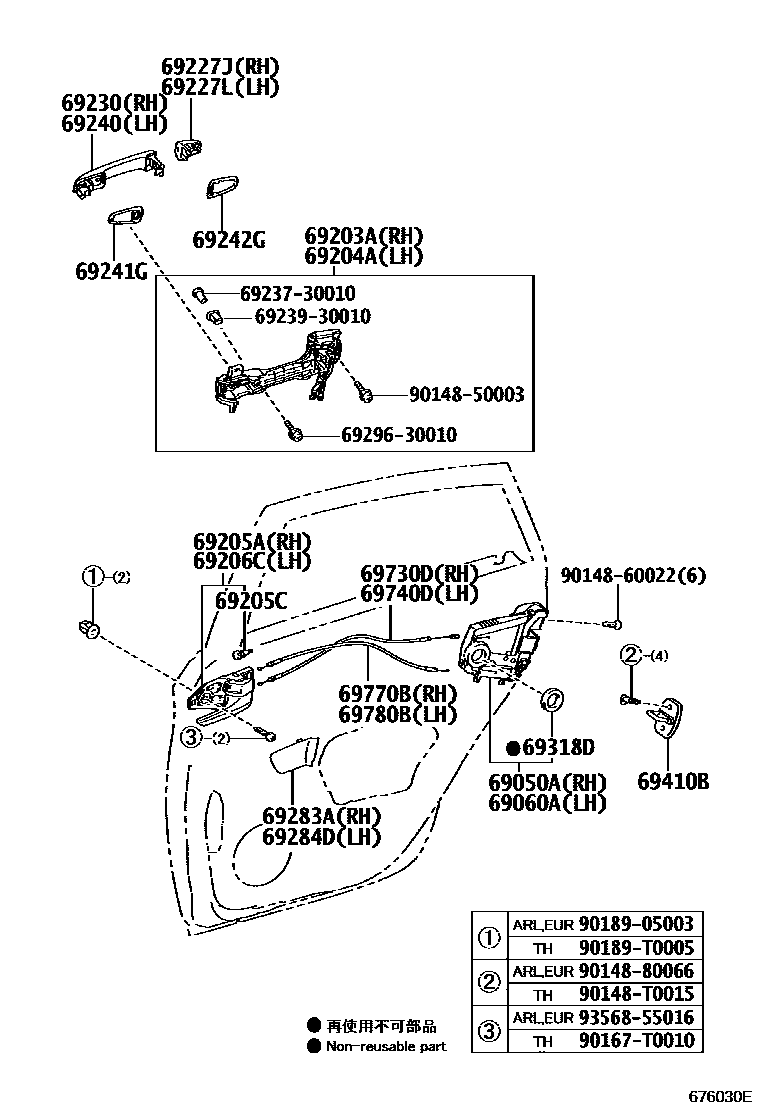

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
(L)
(J)
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
(L)
(J)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,6#
BLACK,TRIM1#
BLACK,TRIM2#,6#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#
BLACK,TRIM1#,6#
BLACK,TRIM2#,6#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#,6#
DK.GRAY,TRIM1#
BLACK,TRIM2#
AQUA,TRIM6#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#,6#
DK.GRAY,TRIM1#
BLACK,TRIM2#
AQUA,TRIM6#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
90167T0010
main90167-T0010
9018905003
main90189-05003
90189T0005
main90189-T0005
9356855016
main93568-55016
32 parts on this diagram · 1 diagram in section
