E
EPC Data

FRONT DOOR LOCK & HANDLE

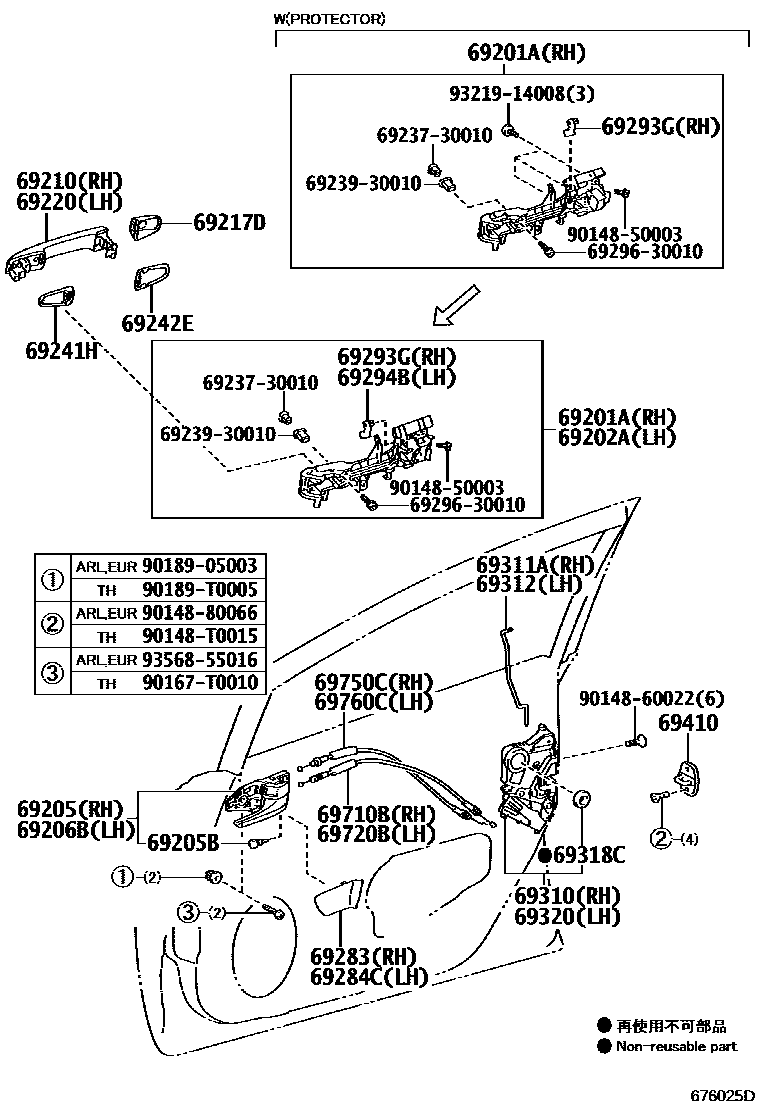

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-30071i200904-201112
main69201-47060i200904-201204
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-30061i200904-201204
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-47040-C0i200904-201112
BLACK,TRIM1#,6#
main69205-47040-C0i201012-201204
BLACK,TRIM1#
main69205-47050-C0i201112-201511
BLACK,TRIM2#,6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i200904-201204
main90541-04027i201112
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-47040-C0i200904-201112
BLACK,TRIM1#,6#
main69206-47040-C0i201012-201204
BLACK,TRIM1#
main69206-47050-C0i201112-201511
BLACK,TRIM2#,6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-74030-A0i200904-201511
WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A1i200904-201511
SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),SUPER WHITE 2,040
sub69210-74030
main69210-74030-B0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i200904-201511
SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),SILVER ME.,1F7
sub69210-74030
main69210-74030-B8i201012-201204
SILVER ME.,1D4
sub69210-74030
main69210-74030-C0i200904-201511
BLACK,202
sub69210-74030
main69210-74030-C0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,BLACK,202
sub69210-74030
main69210-74030-C0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACK,202
sub69210-74030
main69210-74030-C0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),BLACK,202
sub69210-74030
main69210-74030-C0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),BLACK,202
sub69210-74030
main69210-74030-C0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),BLACK,202
sub69210-74030
main69210-74030-C1i201012-201204
BLACK MC.,209
sub69210-74030
main69210-74030-C2i201204
ATTITUDE BLACK MC.,218
sub69210-74030
main69210-74030-D0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,RED M.M.,3R3
sub69210-74030
main69210-74030-D0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i200904-201511
RED M.M.,3R3
sub69210-74030
main69210-74030-D0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),RED M.M.,3R3
sub69210-74030
main69210-74030-D2i201012-201204
BLACKISH RED MC.,3R0
sub69210-74030
main69210-74030-D4i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-D4i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-D4i201112-201511
DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-D4i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-E1i200904-201112
BEIGE ME.,4T8
sub69210-74030
main69210-74030-E1i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),BEIGE ME.,4T8
sub69210-74030
main69210-74030-E1i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BEIGE ME.,4T8
sub69210-74030
main69210-74030-J0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J0i201112-201511
DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J1i200904-201112
DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J1i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J1i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J3i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i200904-201511
ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J6i201012-201204
LIGHT BLUE MICA METALLIC,8U8
sub69210-74030
main69210-74030-R0i201204
TRUE BLUE M.M.,8W1
sub69210-74030
main69211-74020-A0i200904-201511
WHITE PEARL CS.,070
sub69211-74020
main69211-74020-A1i200904-201511
SUPER WHITE 2,040
sub69211-74020
main69211-74020-B0i200904-201511
SILVER ME.,1F7
sub69211-74020
main69211-74020-C0i200904-201511
BLACK,202
sub69211-74020
main69211-74020-D0i200904-201511
RED M.M.,3R3
sub69211-74020
main69211-74020-D5i201112-201511
DEEP RED M.M.,3R9
sub69211-74020
main69211-74020-E1i200904-201112
BEIGE ME.,4T8
sub69211-74020
main69211-74020-J0i201112-201511
DK.BLUE MC.,8S6
sub69211-74020
main69211-74020-J1i200904-201112
DK.BLUE MC.,8T5
sub69211-74020
main69211-74020-J3i200904-201511
ABYSS GRAY ME.,8V1
sub69211-74020
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-74010-A0i200904-201511
WHITE PEARL CS.,070,DRIVER SIDE
sub69217-74010
main69217-74010-A1i200904-201511
SUPER WHITE 2,040,DRIVER SIDE
sub69217-74010
main69217-74010-B0i200904-201511
SILVER ME.,1F7,DRIVER SIDE
sub69217-74010
main69217-74010-C0i200904-201511
BLACK,202,DRIVER SIDE
sub69217-74010
main69217-74010-D0i200904-201511
RED M.M.,3R3,DRIVER SIDE
sub69217-74010
main69217-74010-D5i201112-201511
DEEP RED M.M.,3R9,DRIVER SIDE
sub69217-74010
main69217-74010-E1i200904-201112
BEIGE ME.,4T8,DRIVER SIDE
sub69217-74010
main69217-74010-J0i201112-201511
DK.BLUE MC.,8S6,DRIVER SIDE
sub69217-74010
main69217-74010-J1i200904-201112
DK.BLUE MC.,8T5,DRIVER SIDE
sub69217-74010
main69217-74010-J3i200904-201511
ABYSS GRAY ME.,8V1,DRIVER SIDE
sub69217-74010
main69217-74901i201012-201204
LESS COLOR,DRIVER SIDE
main69250-74010-A0i200904-201511
SUPER WHITE 2,040,PASSENGER SIDE
sub69250-74010
main69250-74010-A1i200904-201511
WHITE PEARL CS.,070,PASSENGER SIDE
sub69250-74010
main69250-74010-B0i200904-201511
SILVER ME.,1F7,PASSENGER SIDE
sub69250-74010
main69250-74010-B9i201012-201204
SILVER ME.,1D4,PASSENGER SIDE
sub69250-74010
main69250-74010-C0i200904-201511
BLACK,202,PASSENGER SIDE
sub69250-74010
main69250-74010-C1i201012-201204
BLACK MC.,209,PASSENGER SIDE
sub69250-74010
main69250-74010-C2i201204
ATTITUDE BLACK MC.,218,PASSENGER SIDE
sub69250-74010
main69250-74010-D0i200904-201511
RED M.M.,3R3,PASSENGER SIDE
sub69250-74010
main69250-74010-D3i201012-201204
BLACKISH RED MC.,3R0,PASSENGER SIDE
sub69250-74010
main69250-74010-D5i201112-201511
DEEP RED M.M.,3R9,PASSENGER SIDE
sub69250-74010
main69250-74010-E0i200904-201112
BEIGE ME.,4T8,PASSENGER SIDE
sub69250-74010
main69250-74010-J0i200904-201112
DK.BLUE MC.,8T5,PASSENGER SIDE
sub69250-74010
main69250-74010-J2i200904-201511
ABYSS GRAY ME.,8V1,PASSENGER SIDE
sub69250-74010
main69250-74010-J4i201112-201511
DK.BLUE MC.,8S6,PASSENGER SIDE
sub69250-74010
main69250-74010-J5i201012-201204
LIGHT BLUE MICA METALLIC,8U8,PASSENGER SIDE
sub69250-74010
main69250-74010-J8i201204
TRUE BLUE M.M.,8W1,PASSENGER SIDE
sub69250-74010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-74030-A0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i200904-201511
WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A1i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i200904-201511
SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),SUPER WHITE 2,040
sub69210-74030
main69210-74030-B0i200904-201511
SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),SILVER ME.,1F7
sub69210-74030
main69210-74030-B8i201012-201204
SILVER ME.,1D4
sub69210-74030
main69210-74030-C0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,BLACK,202
sub69210-74030
main69210-74030-C0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),BLACK,202
sub69210-74030
main69210-74030-C0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACK,202
sub69210-74030
main69210-74030-C0i200904-201511
BLACK,202
sub69210-74030
main69210-74030-C0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),BLACK,202
sub69210-74030
main69210-74030-C0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),BLACK,202
sub69210-74030
main69210-74030-C1i201012-201204
BLACK MC.,209
sub69210-74030
main69210-74030-C2i201204
ATTITUDE BLACK MC.,218
sub69210-74030
main69210-74030-D0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i200904-201511
RED M.M.,3R3
sub69210-74030
main69210-74030-D0i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),RED M.M.,3R3
sub69210-74030
main69210-74030-D0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,RED M.M.,3R3
sub69210-74030
main69210-74030-D2i201012-201204
BLACKISH RED MC.,3R0
sub69210-74030
main69210-74030-D4i201112-201511
DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-D4i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-D4i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-D4i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,DEEP RED M.M.,3R9
sub69210-74030
main69210-74030-E1i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BEIGE ME.,4T8
sub69210-74030
main69210-74030-E1i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),BEIGE ME.,4T8
sub69210-74030
main69210-74030-E1i200904-201112
BEIGE ME.,4T8
sub69210-74030
main69210-74030-J0i201112-201511
DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J0i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),DK.BLUE MC.,8S6
sub69210-74030
main69210-74030-J1i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J1i200904-201112
DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J1i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J3i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN,ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i200904-201511
ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i200904-201112
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i200904-201112
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J3i201112-201511
SMART ENTRY-W(FRONT & BACK DOOR),ABYSS GRAY ME.,8V1
sub69210-74030
main69210-74030-J6i201012-201204
LIGHT BLUE MICA METALLIC,8U8
sub69210-74030
main69210-74030-R0i201204
TRUE BLUE M.M.,8W1
sub69210-74030
main69211-74020-A0i200904-201511
WHITE PEARL CS.,070
sub69211-74020
main69211-74020-A1i200904-201511
SUPER WHITE 2,040
sub69211-74020
main69211-74020-B0i200904-201511
SILVER ME.,1F7
sub69211-74020
main69211-74020-C0i200904-201511
BLACK,202
sub69211-74020
main69211-74020-D0i200904-201511
RED M.M.,3R3
sub69211-74020
main69211-74020-D5i201112-201511
DEEP RED M.M.,3R9
sub69211-74020
main69211-74020-E1i200904-201112
BEIGE ME.,4T8
sub69211-74020
main69211-74020-J0i201112-201511
DK.BLUE MC.,8S6
sub69211-74020
main69211-74020-J1i200904-201112
DK.BLUE MC.,8T5
sub69211-74020
main69211-74020-J3i200904-201511
ABYSS GRAY ME.,8V1
sub69211-74020
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-30110i201105-201108
sub69241-30111
main69241-30111i200904-201204
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-30090i201105-201108
sub69242-30091
main69242-30091i200904-201003
main69242-47020i201004-201204
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-47010-B2i201012-201204
DK.GRAY,TRIM1#
main69283-47010-B2i200904-201112
DK.GRAY,TRIM1#,6#
main69283-47010-C0i201112-201511
BLACK,TRIM2#
main69283-47010-G0i201112-201511
AQUA,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-47010-B2i201012-201204
DK.GRAY,TRIM1#
main69284-47010-B2i200904-201112
DK.GRAY,TRIM1#,6#
main69284-47010-C0i201112-201511
BLACK,TRIM2#
main69284-47010-G0i201112-201511
AQUA,TRIM6#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i200904-201204
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200904-201204
69310LOCK ASSY, FRONT DOOR, RH
main69030-0Q010i201204
main69030-47070i200904-201204
main69030-47081i200904-201211
main69030-47100i201211
main69030-47120i201211
main69030-52290i200904-201211
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-47040i200904-201204
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-47040i200904-201204
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-47010i200904-201204
69320LOCK ASSY, FRONT DOOR, LH
main69040-0Q010i201204
main69040-47070i200904-201204
main69040-47090i200904-201211
main69040-47100i201211
main69040-47120i201211
main69040-52340i200904-201211
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-0K010i201204
main69410-33010i200904-201204
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-47030i200904-201204
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-47030i200904-201204
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-47040i200904-201204
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-47040i200904-201204
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
90167T0010
main90167-T0010
9018905003
main90189-05003
90189T0005
main90189-T0005
9321914008
main93219-14008
9356855016
main93568-55016

36 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
