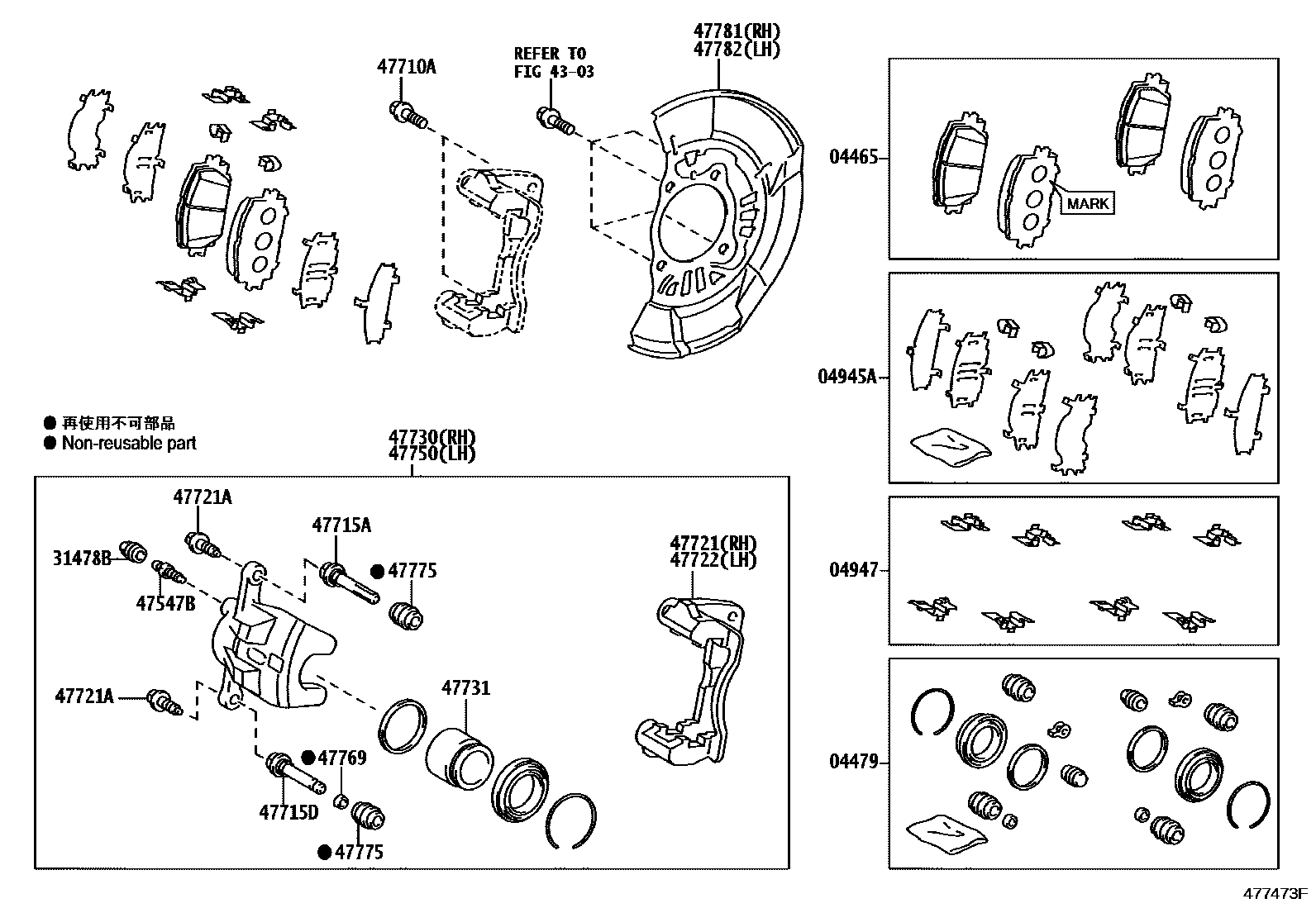

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK TEXTAR T4146,MARK=47746-0W180
MARK TEXTAR T4146
MARK TEXTAR T4146,MARK=47746-0W181
MARK ADVICS PV565H,SINGAPORE SPEC
MARK ADVICS PV565H,THAILAND SPEC
MARK ADVICS PV565H,TAIWAN SPEC
MARK ADVICS PV565H,INDONESIA SPEC
MARK ADVICS PV565H,MALAYSIA SPEC
MARK ADVICS PV565H,INDIA SPEC
MARK ADVICS PV565H
MARK ADVICS PV565H,HONG KONG SPEC
MARK ADVICS PV565H,BRUNEI SPEC
MARK ADVICS PV565H,PHILIPPINE SPEC
MARK ADVICS PV565H,NEW CALEDONIA OR TAHITI SPEC
04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)
04947FITTING KIT, DISC BRAKE, FRONT
TAIWAN SPEC
INDONESIA SPEC
MALAYSIA SPEC
INDIA SPEC
HONG KONG SPEC
BRUNEI SPEC
PHILIPPINE SPEC
SINGAPORE SPEC
NEW CALEDONIA OR TAHITI SPEC
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
4303
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX50-30
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
*8-1.00PX23-15
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
20 parts on this diagram · 1 diagram in section
