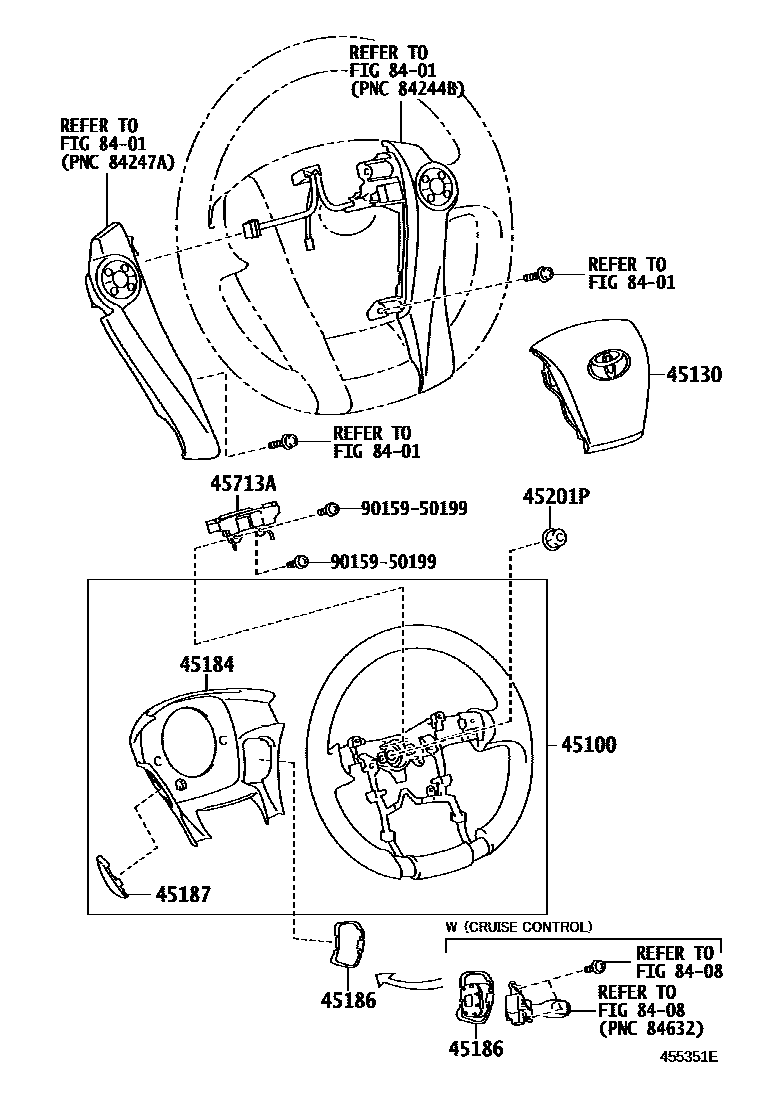

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,EXPORT SIMPLE PACKAGE,MIST GRAY,TRIM6#
sub45100-47120
4-SPOKE,URETHANE,EXPORT SIMPLE PACKAGE,BLACK,TRIM1#,2#,6#
sub45100-47120
4-SPOKE,URETHANE,EXPORT SIMPLE PACKAGE,BLACK,TRIM1#
sub45100-47120
4-SPOKE,LEATHER,EXPORT UPPER PACKAGE,MIST GRAY,TRIM6#
4-SPOKE,LEATHER,MIST GRAY,TRIM6#
4-SPOKE,LEATHER,EXPORT UPPER PACKAGE,BLACK,TRIM1#
4-SPOKE,LEATHER,BLACK,TRIM1#
4-SPOKE,LEATHER,BLACK,TRIM1#,2#,6#
4-SPOKE,LEATHER,EXPORT UPPER PACKAGE,BLACK,TRIM1#,2#,6#
4-SPOKE,LEATHER,BLACK,TRIM2#,6#
4-SPOKE,LEATHER,EXPORT UPPER PACKAGE,BLACK,TRIM2#,6#
4-SPOKE,LEATHER,BLACK,TRIM2#,6#
45130BUTTON ASSY, HORN
45184COVER, STEERING WHEEL BOSS, LOWER
45186COVER, STEERING WHEEL, LOWER NO.2
MIST GRAY,TRIM6#
BLACK,TRIM1#
BLACK,TRIM1#,2#,6#
BLACK,TRIM2#,6#
45187COVER, STEERING WHEEL, LOWER NO.3
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401
8408
9015950199
main90159-50199
10 parts on this diagram · 1 diagram in section
