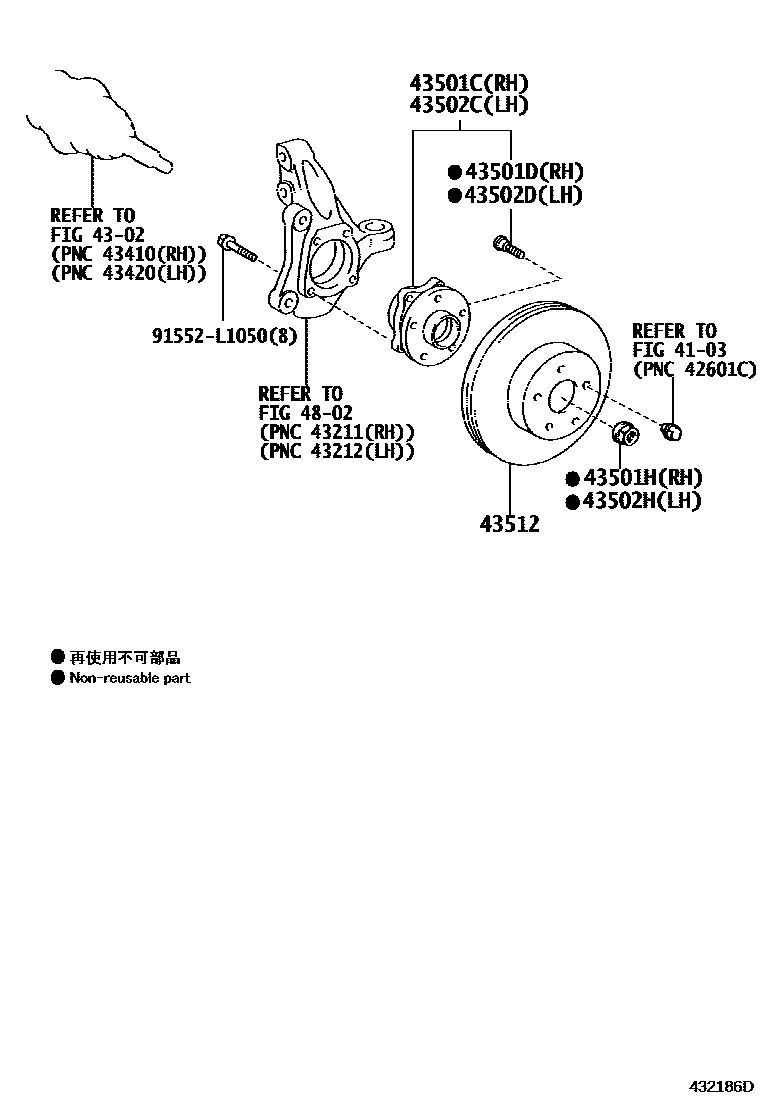

FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47010iZVW30..ARL,EUR200904-201206

sub43550-47011

main43550-47011iZVW30..ARL,EUR201207-201511

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZVW30..ARL,EUR200904-201204

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW30..ARL,EUR200904-201204

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47010iZVW30..ARL,EUR200904-201206

sub43550-47011

main43550-47011iZVW30..TH201207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZVW30..TH200904-201204

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW30..ARL,EUR200904-201204

43512DISC, FRONT

main43512-47040iZVW30..RHD..EUR201112-201511

INDIA SPEC

main43512-47040iZVW30..LHD201112-201511

HONG KONG SPEC

main43512-47040iZVW30..LHD201112-201511

BRUNEI SPEC

main43512-47040iZVW30..LHD201112-201511

PHILIPPINE SPEC

main43512-47040iZVW30..LHD201112-201511

SINGAPORE SPEC

main43512-47040iZVW30..LHD201112-201511

NEW CALEDONIA OR TAHITI SPEC

main43512-47040iZVW30..LHD201112-201511

TAIWAN SPEC

main43512-47040iZVW30..LHD201112-201511

INDONESIA SPEC

main43512-47040iZVW30..LHD201112-201511

MALAYSIA SPEC

main43512-47040iZVW30..TH201012-201204

main43512-47040iZVW30..EUR200904-201112

REFER47-05:PNC 04465

main43512-47050iZVW30..EUR201112-201511

main43512-47050iZVW30..EUR200907-201112

REFER47-05:PNC 04465

4802

91552L1050

main91552-L1050

11 parts on this diagram · 1 diagram in section
