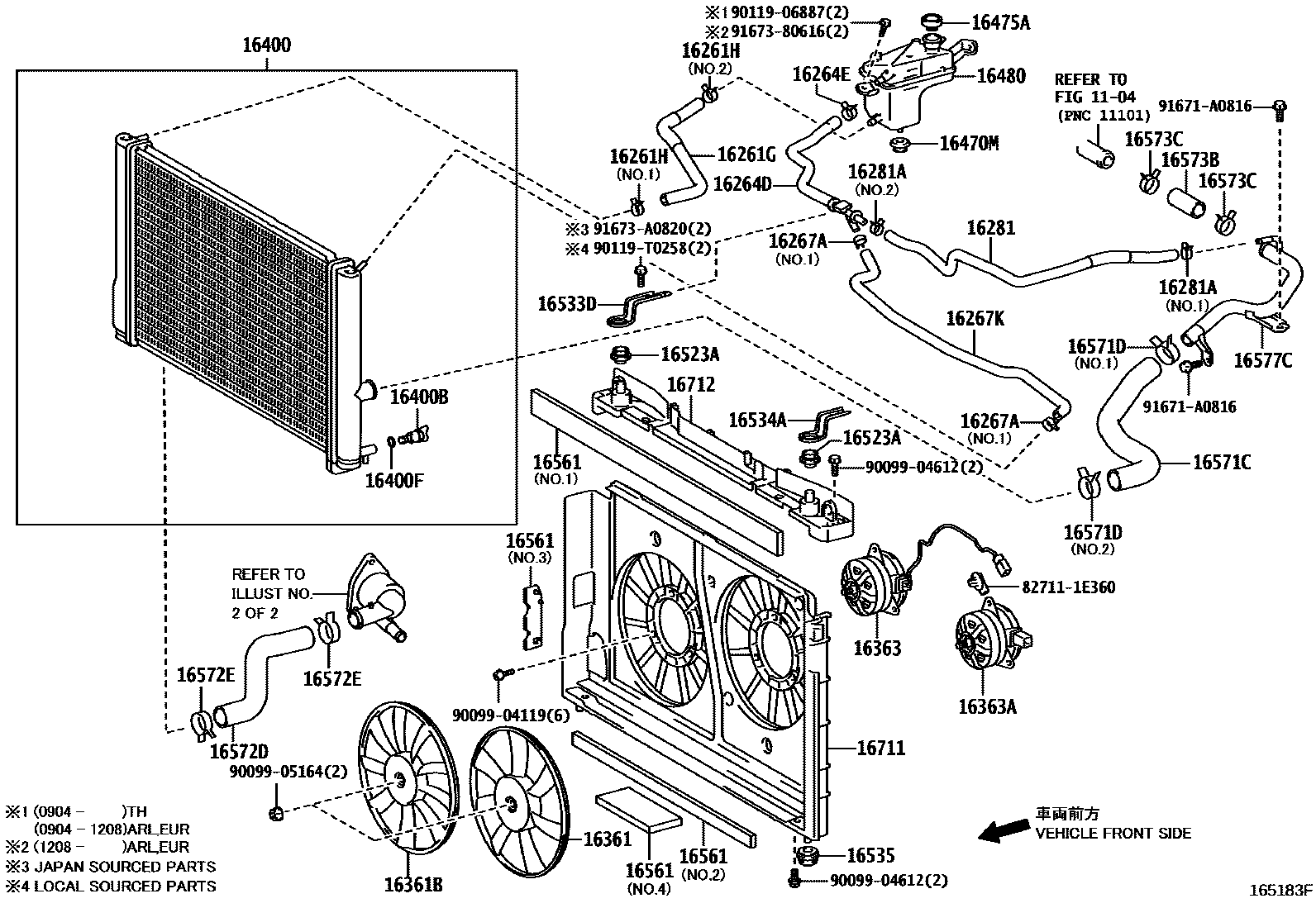

RADIATOR & WATER OUTLET
1104
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.1
NO.2
NO.1
NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
ENGINE-2ZR-FXE(MADE IN UK)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
NO.1
NO.2
16267KHOSE, WATER BY-PASS, NO.3
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
NO.2
NO.2
NO.1
NO.1
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
sub16400-37240
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16480RESERVE TANK ASSY, RADIATOR W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533DSUPPORT, RADIATOR, RH
16534ASUPPORT, RADIATOR, LH
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.1
NO.2
NO.3
NO.4
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
16712SHROUD, FAN, NO.2
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9011906887
main90119-06887
90119T0258
main90119-T0258
91671A0816
main91671-A0816
9167380616
main91673-80616
91673A0820
main91673-A0820
45 parts on this diagram · 3 diagrams in section
