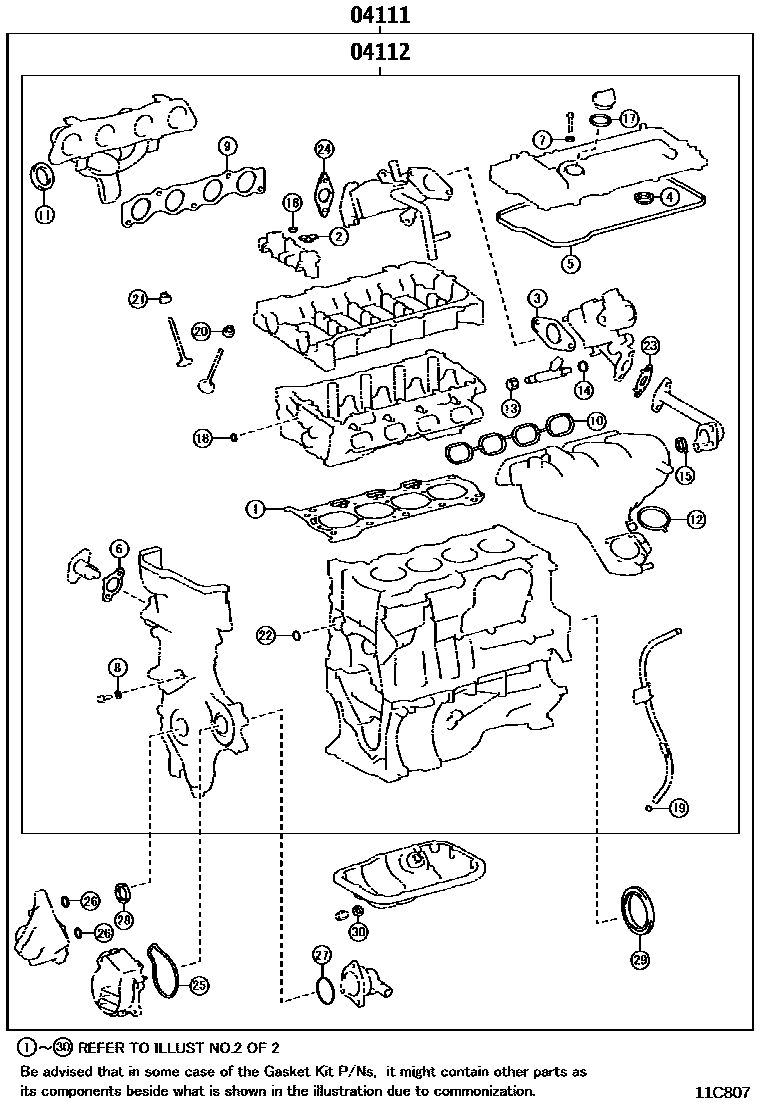

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1ENGINE-2ZR-FXE(MADE IN UK) 0004 1ENGINE-2ZR-FXE(MADE IN UK) 0005 1ENGINE-2ZR-FXE(E25) 0006 1ENGINE-2ZR-FXE(E25)

04111GASKET KIT, ENGINE OVERHAUL

main04111-37310i2ZRFXE..ZVW30..ARL,EUR200904-201110

sub04111-37312

main04111-37312i2ZRFXE..ZVW30..ARL,EUR201110-201202

sub04111-37313

main04111-37313i2ZRFXE..ZVW30..TH201203-201408

sub04111-37314

main04111-37314i2ZRFXE..ZVW30..TH201408-201502

sub04111-37315

main04111-37315i2ZRFXE..ZVW30..ARL,EUR201502

sub04111-37316

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37250i2ZRFXE..ZVW30..ARL,EUR200904-201110

sub04112-37251

main04112-37251i2ZRFXE..ZVW30..ARL,EUR201110-201202

sub04112-37252

main04112-37252i2ZRFXE..ZVW30..ARL,EUR201203-201502

sub04112-37253

main04112-37253i2ZRFXE..ZVW30..TH201502

sub04112-37254

2 parts on this diagram · 6 diagrams in section
