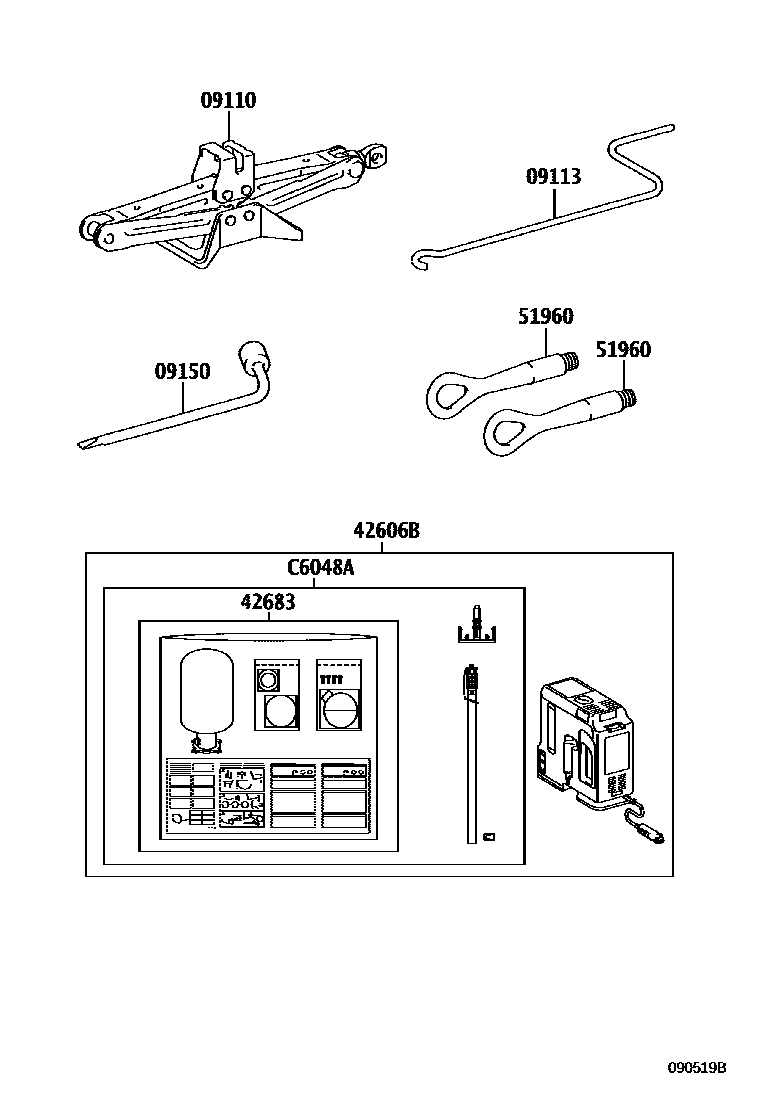

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09110-47020iZVW30..ARL200904-201009

sub09110-47030

main09110-47030iZVW30..ARL201010-201207

main09110-47050iZVW30..ARL201208

main09111-30190iZVW30..TH201208

main09111-33030iZVW30..EUR201010-201210

sub09111-76010

main09111-50051iZVW30..EUR200904-201009

sub09111-76011

09113HANDLE, JACK

main09113-52030iZVW30..ARL,EUR200904-201112

main09113-52031iZVW30..ARL,EUR201112-201204

09150WRENCH, HUB NUT BOX

main09150-35070iZVW30..TH200904-201303

main09150-76010iZVW30..ARL,EUR201304

42606BREPAIR KIT, TUBELESS TIRE

42683SEAL, TIRE REPAIR

main42683-50020

51960HOOK ASSY, FRONT

main51961-50040iZVW30..TH200904-201210

sub51961-50042

main51961-50041iZVW30..ARL,EUR201106-201305

sub51961-50042

main51961-50042iZVW30..ARL,EUR201211

C6048REPAIR SET, TIRE

mainC6048-50020

mainC6048-74043

C6048ASEALANT, REPAIR TIRE

8 parts on this diagram · 2 diagrams in section
