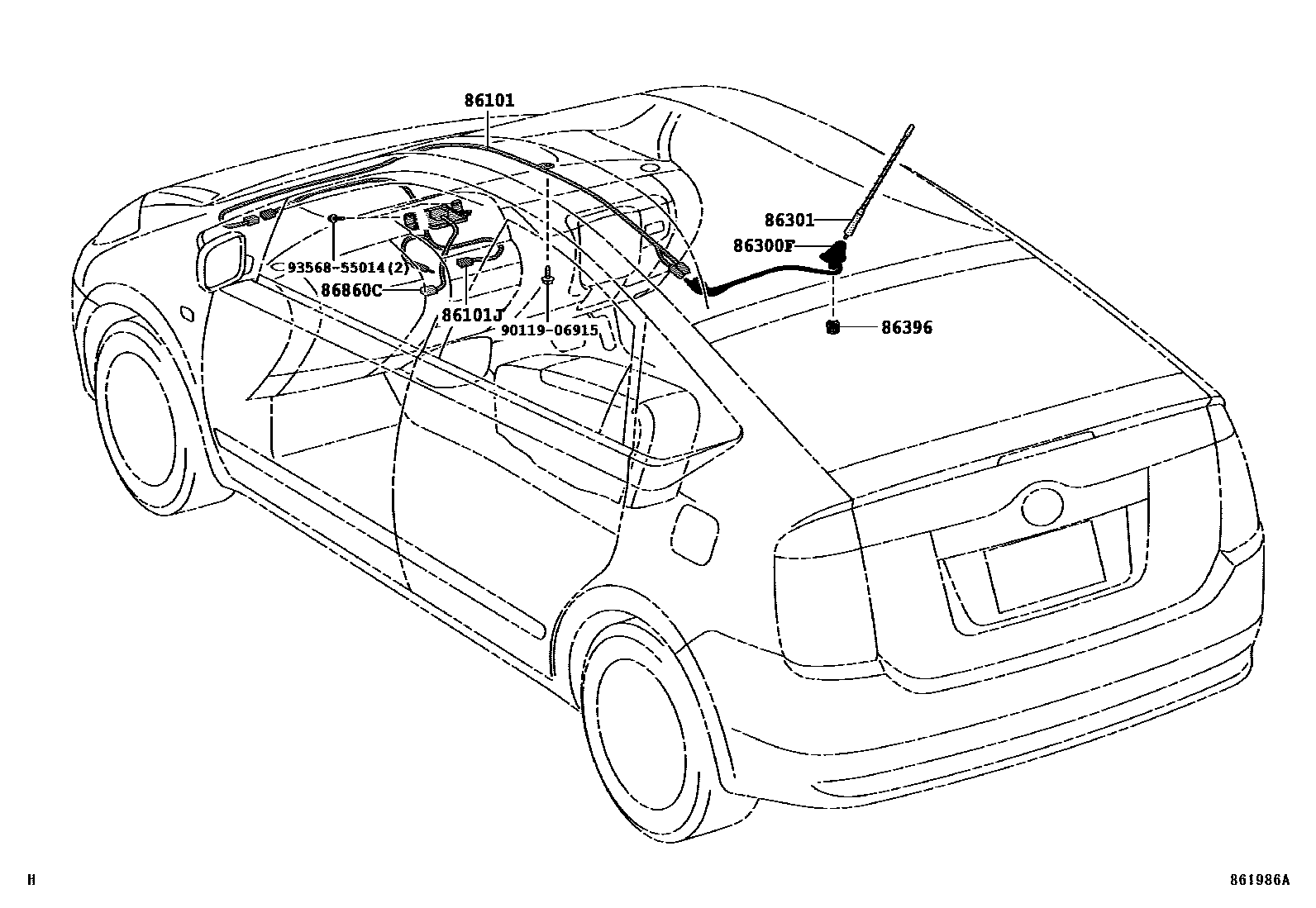

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-47090iNHW20200308-200511

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47100iNHW20200308-200511

main86101-47110iNHW20200511-200903

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-47030iNHW20..ARL; NHW20..RHD..EUR200308-200511

HONG KONG SPEC; SINGAPORE SPEC

main86300-47040iNHW20..EUR200308-200511

86301POLE SUB-ASSY, ANTENNA

main86309-52040iNHW20200308-200511

86396NUT, ANTENNA

main86396-20040iNHW20200511-200903

86860CANTENNA ASSY, NAVIGATION

main86860-47060iNHW20..ARL; NHW20..EUR200308-200511

EMV(W/NAVIGATION SYSTEM)-WITH(EUROPE); W(VSC)

9011906915

main90119-06915

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
