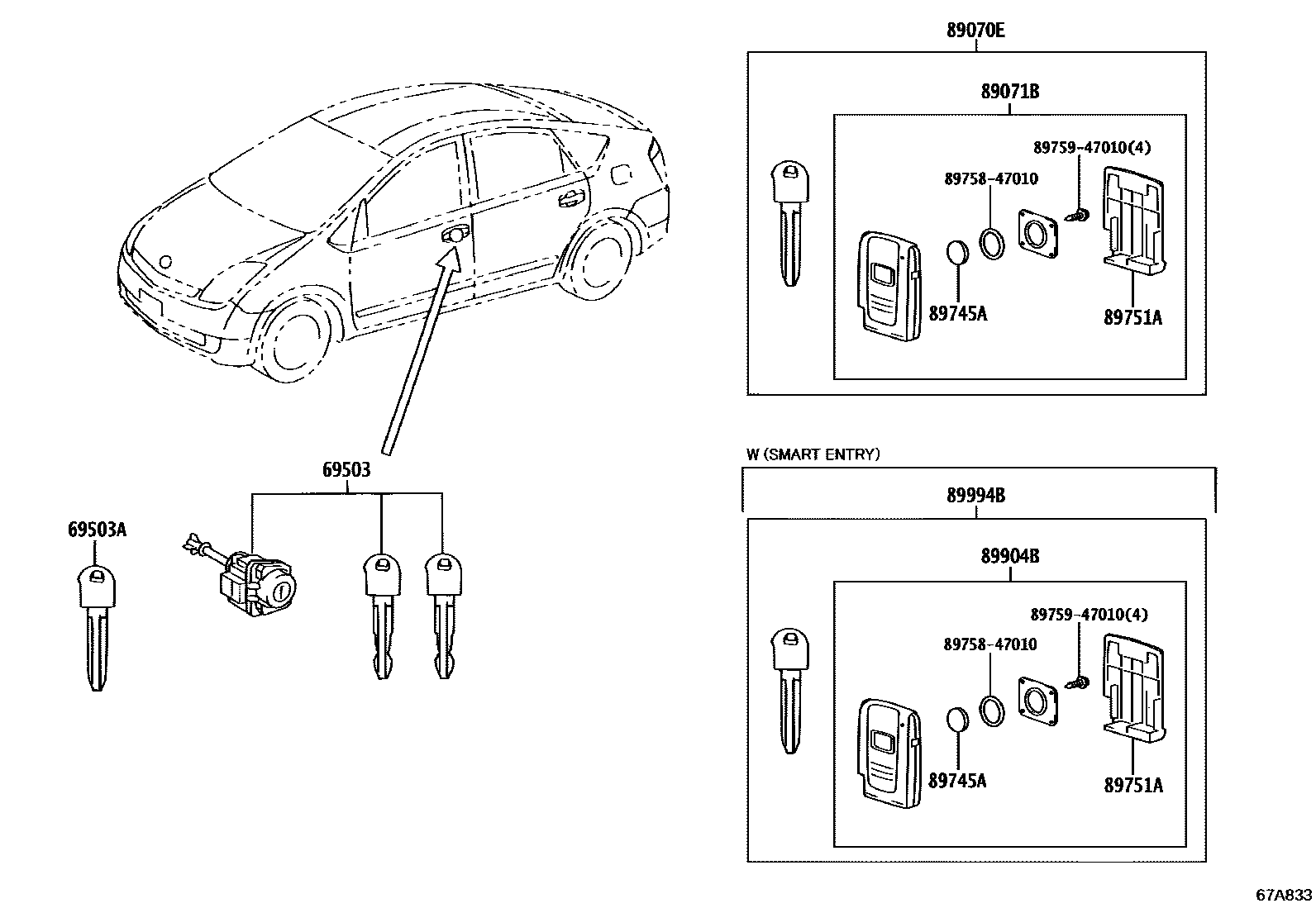

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-47070iNHW20..ARL200308-200903

main69005-47090iNHW20..RHD..EUR200308-200903

main69005-47100iNHW20..LHD200308-200903

69503AKEY, BLANK

main69515-47010iNHW20200308-200903

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-47190iNHW20200511-200608

W(SMART ENTRY)

main89070-47190iNHW20200308-200511

main89070-47190iNHW20200511-200608

WITH(VSC)&W(SMART ENTRY)

main89070-47280iNHW20200608-200610

WITH(VSC)&W(SMART ENTRY)

main89070-47280iNHW20200608-200610

W(SMART ENTRY)

main89070-47281iNHW20200611-200903

W(SMART ENTRY)

main89070-47281iNHW20200611-200903

WITH(VSC)&W(SMART ENTRY)

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-47040iNHW20200308-200608

W(SMART ENTRY)

main89071-47040iNHW20200308-200511

W(VSC)

main89071-47040iNHW20200511-200608

WITH(VSC)&W(SMART ENTRY)

main89071-47140iNHW20200608-200610

WITH(VSC)&W(SMART ENTRY)

main89071-47140iNHW20200608-200610

W(SMART ENTRY)

main89071-47141iNHW20..LHD200611-200808

W(SMART ENTRY)

main89071-47141iNHW20200611-200808

WITH(VSC)&W(SMART ENTRY)

main89071-47151iNHW20200808-200903

WITH(VSC)&W(SMART ENTRY)

main89071-47151iNHW20200808-200903

W(SMART ENTRY)

89745ABATTERY, TRANSMITTER

main89745-47010iNHW20200308-200903

W(SMART ENTRY)

main89745-47010iNHW20200308-200511

W(VSC)

main89745-47010iNHW20200308-200511

W(VSC)&W(SMART ENTRY)

main89745-47010iNHW20200511-200903

WITH(VSC)&W(SMART ENTRY)

89751ACOVER, TRANSMITTER HOUSING

main89751-47020iNHW20200308-200903

W(SMART ENTRY)

main89751-47020iNHW20200308-200511

W(VSC)

main89751-47020iNHW20200511-200903

WITH(VSC)&W(SMART ENTRY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

89994BTRANSMITTER, ELECTRICAL KEY

8975847010PACKING, DOOR CONTROL TRANSMITTER

main89758-47010

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

10 parts on this diagram · 2 diagrams in section
