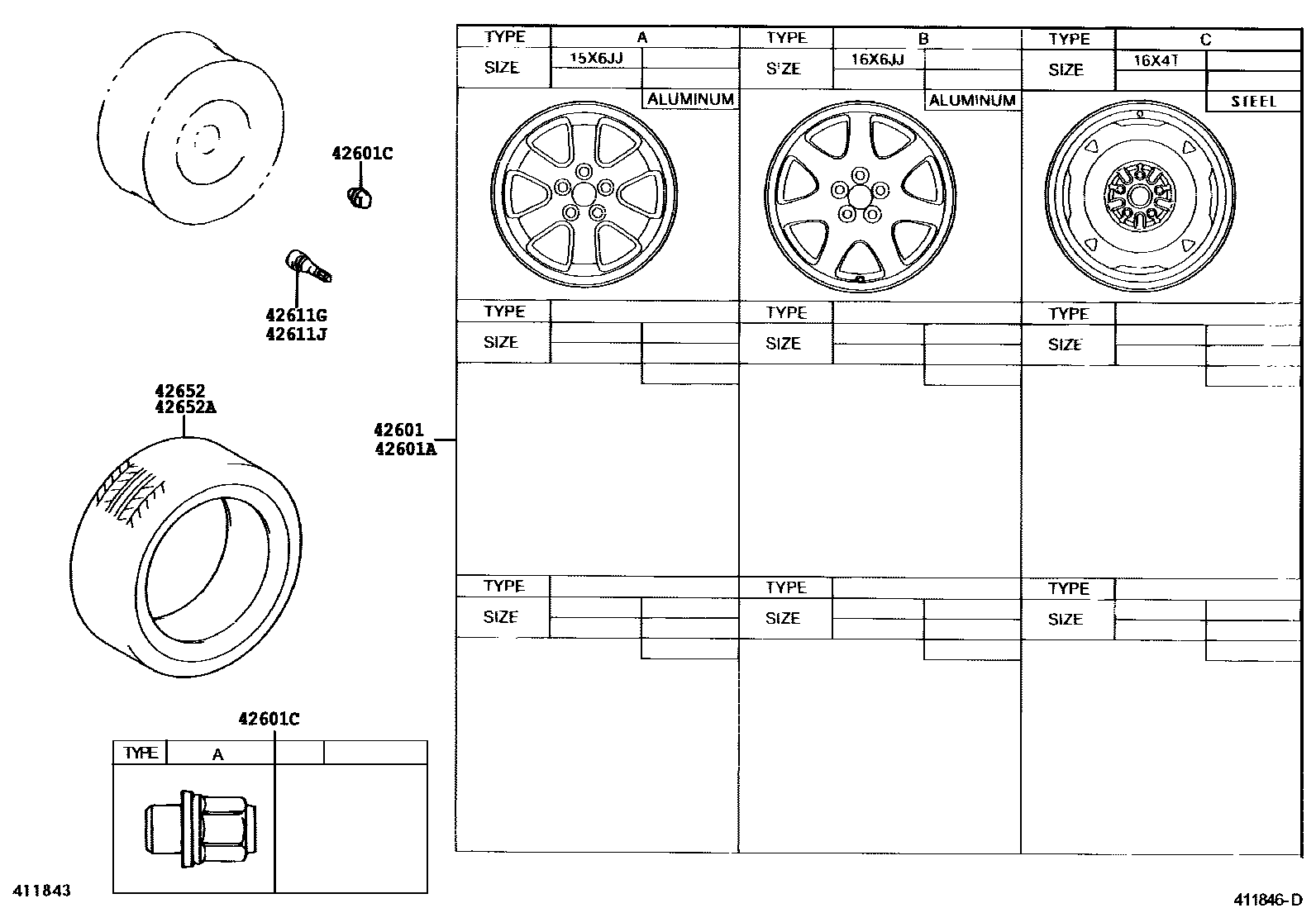

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-47050iNHW20..ARL200308-200903

15X6JJ,#,TYPE A:REFER ILLUST.

main42611-47060iNHW20..EUR200308-200411

16X6JJ,#,TYPE B:REFER ILLUST.

main42611-47070iNHW20..EUR200412-200703

16X6JJ,#,TYPE B:REFER ILLUST.

main42611-47080iNHW20..EUR200704-200707

16X6JJ,#,TYPE B:REFER ILLUST.

main42611-47190iNHW20..EUR200708-200903

16X6JJ,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iNHW20200308-200903

16X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iNHW20200308-200903

TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNHW20200308-200903

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNHW20200308-200903

42652TIRE

main42652-02751iNHW20..LHD200412-200903

195/55R16,MICHELIN

42652ATIRE (FOR SPARE)

main42652-47080iNHW20..LHD200508-200511

T125/70D16 96M,CHINA SPEC

7 parts on this diagram · 3 diagrams in section
