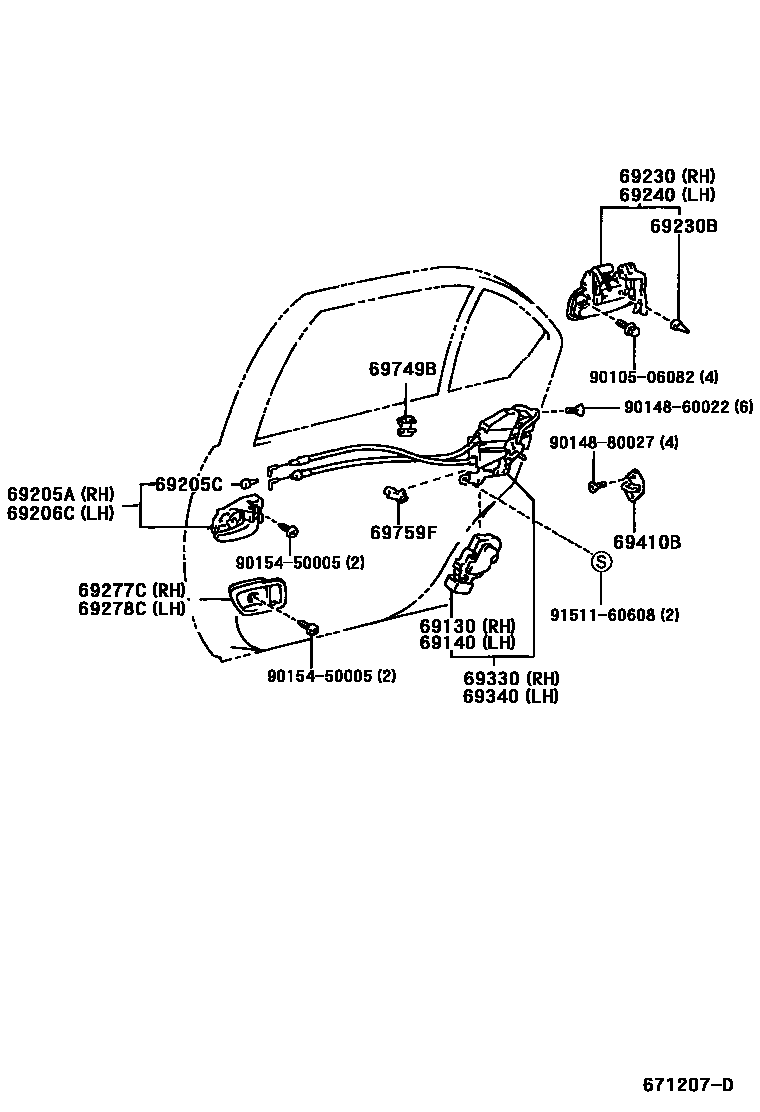

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
HONG KONG SPEC
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
HONG KONG SPEC
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SILVER ME.GR.,1C5
BLACK,202
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.GR.,1C5
BLACK,202
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
LT.AMETHYST,TRIM9#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69330LOCK ASSY, REAR DOOR, RH
HONG KONG SPEC
69340LOCK ASSY, REAR DOOR, LH
HONG KONG SPEC
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69749BCLAMP, REAR DOOR LOCK LINK
9010506082
main90105-06082
9014860022
main90148-60022
9014880027
main90148-80027
9015450005
main90154-50005
9151160608
main91511-60608
20 parts on this diagram · 1 diagram in section
