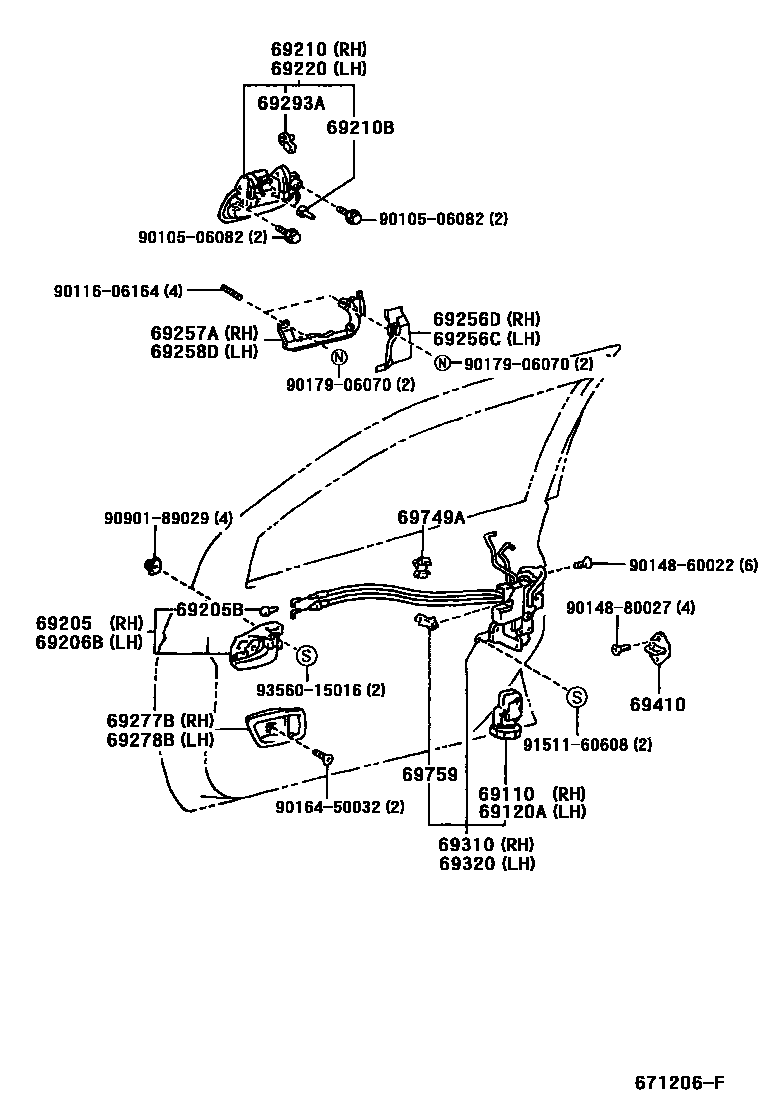

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
HONG KONG SPEC
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
HONG KONG SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.GR.,1C5
BLACK,202
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.GR.,1C5
BLACK,202
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
69256DPROTECTOR, DOOR OUTSIDE HANDLE, RH
69257APROTECTOR, DOOR OUTSIDE HANDLE, NO.2 RH
69258DPROTECTOR, DOOR OUTSIDE HANDLE, NO.2 LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
LT.AMETHYST,TRIM9#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
HONG KONG SPEC
69320LOCK ASSY, FRONT DOOR, LH
HONG KONG SPEC
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
9010506082
main90105-06082
9011606164
main90116-06164
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9017906070
main90179-06070
9090189029
main90901-89029
9151160608
main91511-60608
9356015016
main93560-15016
29 parts on this diagram · 1 diagram in section
