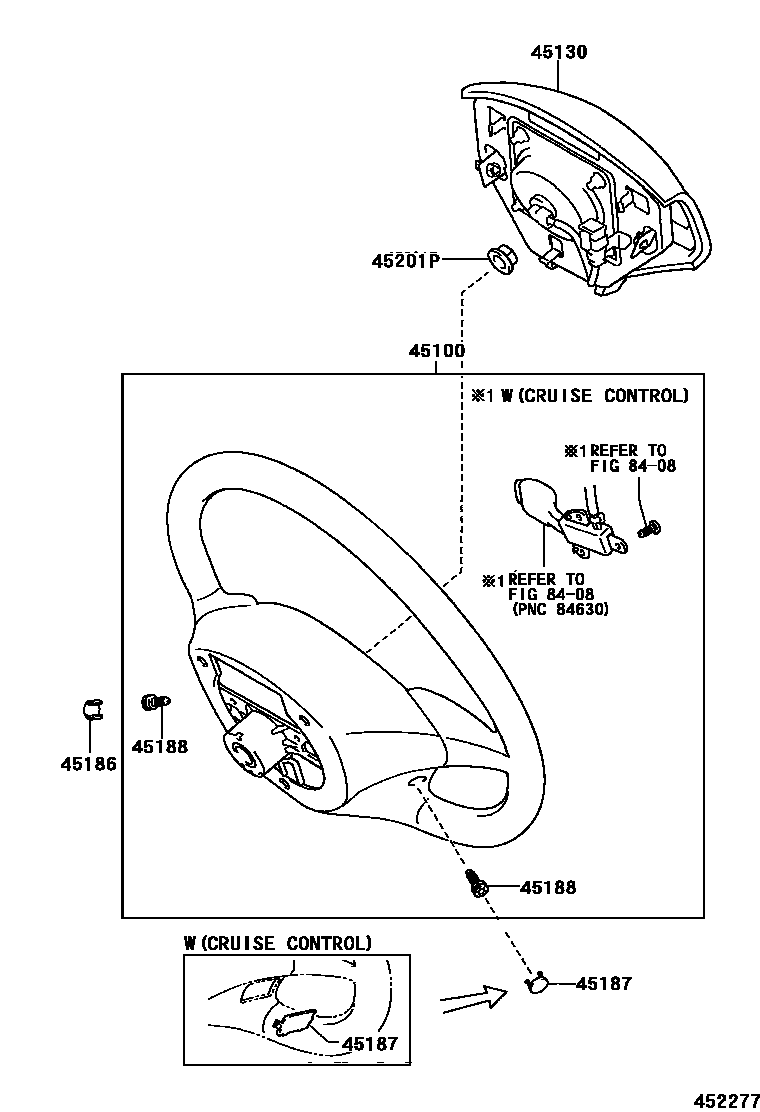

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47010-B0iNHW11200005-200007

3-SPOKE,URETHANE,LT.AMETHYST,TRIM9#

main45100-47011-B0iNHW11200007

3-SPOKE,URETHANE,LT.AMETHYST,TRIM9#

main45100-47020-B0iNHW11200005-200007

3-SPOKE,URETHANE,W(CRUISE CONTROL),LT.AMETHYST,TRIM9#

main45100-47021-B0iNHW11..EUR200007

3-SPOKE,URETHANE,W(CRUISE CONTROL),LT.AMETHYST,TRIM9#

45130BUTTON ASSY, HORN

main45130-47020-B0iNHW11..ARL200201

LT.AMETHYST,TRIM9#

main45130-47030-B0iNHW11200005-200006

LT.AMETHYST,TRIM9#

main45130-47050-B0iNHW11..EUR200201

LT.AMETHYST,TRIM9#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B7iNHW11200005

LT.AMETHYST,TRIM9#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-44010-B7iNHW11200005

LT.AMETHYST,TRIM9#

main45187-30060-B3iNHW11..EUR200005

W(CRUISE CONTROL),LT.AMETHYST,TRIM9#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iNHW11200005

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iNHW11200005

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 1 diagram in section
