ENGINE OVERHAUL GASKET KIT

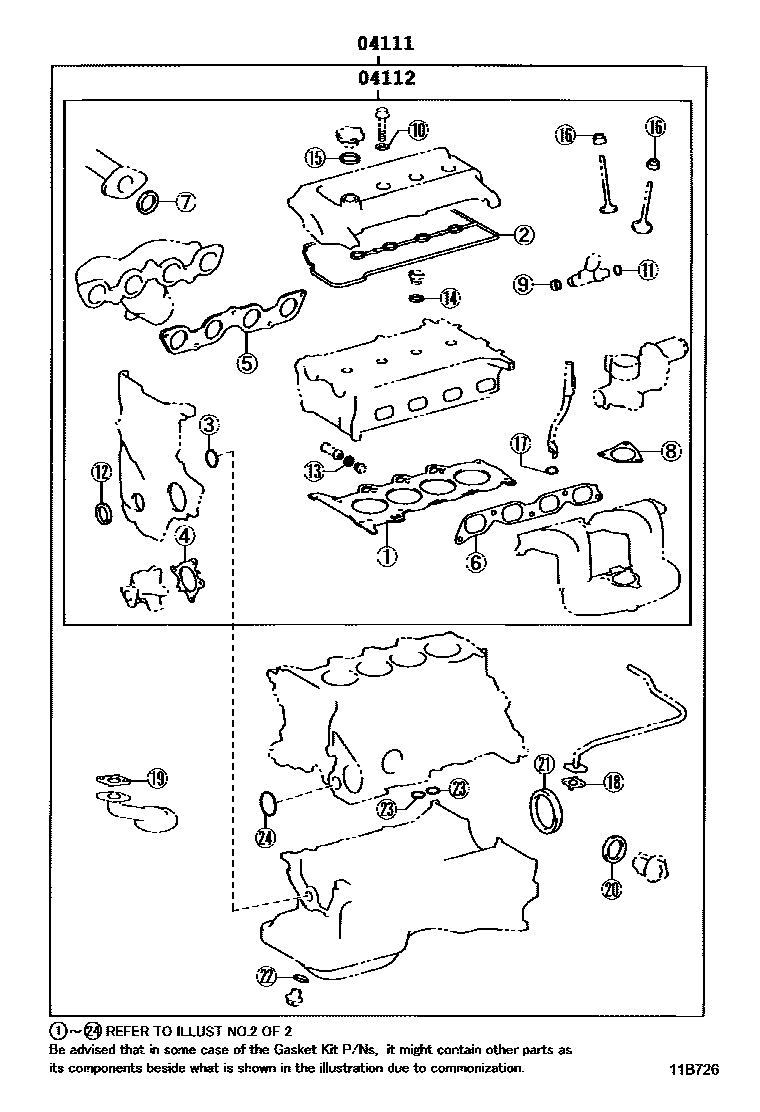

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21050i200005-200302
sub04111-21051
main04111-21051i200302-200305
sub04111-21052
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21050i200005-200302
sub04112-21051
main04112-21051i200302-200305
sub04112-21052

2 parts on this diagram · 2 diagrams in section
