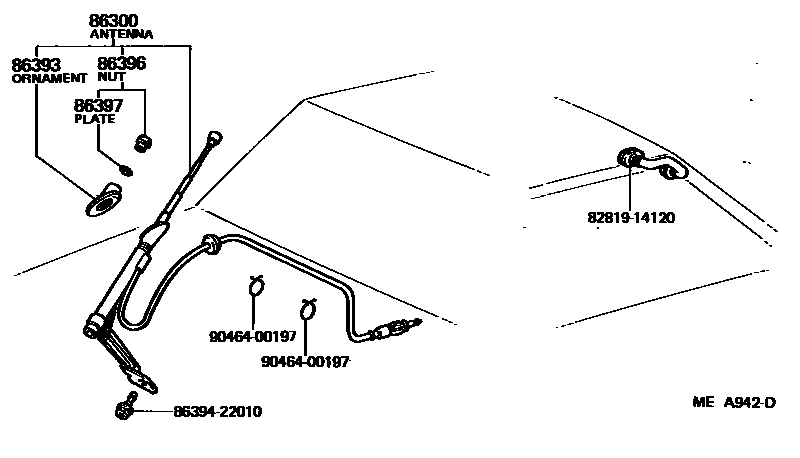

ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-14210iCA60,TA6#..RHD..(DLX,GL)198108-198309

main86300-14220iTA62..LHD..GL;CA60,TA60..(SED,WG)..LHD198108-198208

main86300-14221iCA60,TA6#..(SED,WG)..LHD198208-198309

main86300-14300iTA6#..RHD..XE198108-198309

main86300-14310iTA6#..CP..LHD198108-198309

86393ORNAMENT, ANTENNA

main86392-14010iCA60,TA60..SED,WG;TA62..(DLX,GL)..(EUG,SDZ)198108-198309

main86392-14020iTA6#..CP198108-198309

86396NUT, ANTENNA

main86396-14010iCA60,TA60;TA62..EUG,SDZ198108-198309

86397PLATE, ANTENNA EARTH

main86397-14010iCA60,TA60;TA62..EUG,SDZ198108-198309

8281914120GROMMET, WIRING HARNESS

main82819-14120

8639422010

main86394-22010

9046400197

main90464-00197

7 parts on this diagram · 1 diagram in section
