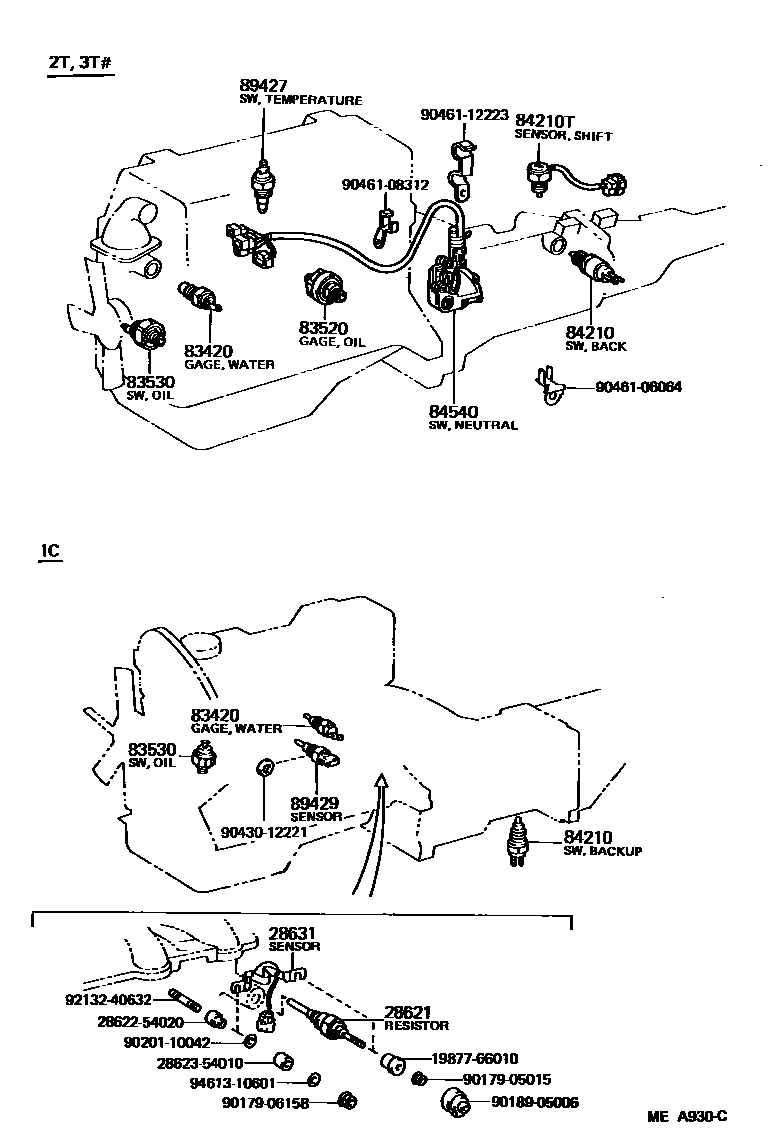

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28621RESISTOR, GLOW PLUG

main28621-64011i1C..CA60198204-198309

28631SENSOR, GLOW PLUG CURRENT

main28631-64010i1C..CA60198204-198309

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iCA60,TA6#198108-198309

DENSO

sub83420-20020

main83420-20020iCA60,TA6#198108-198309

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iTA6#..RHD..(GL,XE)..EUG198108-198309

sub83520-14022

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTA62..SDN,SDZ198108-198309

sub83530-14030

main83530-36011iCA60198204-198309

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTA6#..MTM198108-198309

main84210-14010iCA60198204-198309

84210TSENSOR ASSY, SHIFT POINT

main84220-12010iTA62..5F..(SDN,SDZ)198108-198309

84540SWITCH ASSY, NEUTRAL START

main84540-14080iTA6#..3FC198108-198309

89427SWITCH, TEMPERATURE DETECT

main89427-12030iTA62..SDN,SDZ198108-198309

89429SENSOR, OIL TEMPERATURE

main89422-30020iCA60198204-198309

sub89422-12010

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9046106064

main90461-06064

9046108312

main90461-08312

9046112223

main90461-12223

9213240632

main92132-40632

9461310601

main94613-10601

23 parts on this diagram · 5 diagrams in section
