REAR SEAT & SEAT TRACK

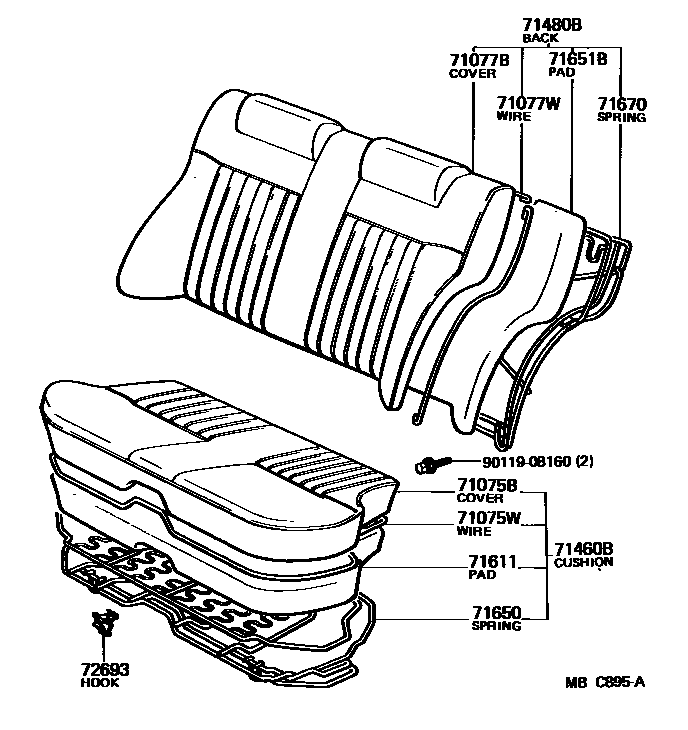

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-1B370-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71075-1B370-04i198108-198305
FB,BLUE,BLUE,TRIM8#
main71075-1B370-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71075-1B371-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71075-1B371-04i198305-198309
FB,BLUE,BLUE,TRIM8#
main71075-1B371-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
main71075-1B390-01i198108-198309
FB,BLACK,BLACK,TRIM2#
main71075-1B390-04i198108-198309
FB,BLUE,BLUE,TRIM8#
main71075-1B390-05i198108-198309
FB,BEIGE,BEIGE,TRIM4#
main71075-1B410-03i198108-198205
PF,GRAY,GRAY,TRIM2#
main71075-1B410-04i198108-198205
PF,BLUE,BLUE,TRIM8#
main71075-1B410-05i198108-198205
PF,BEIGE,BEIGE,TRIM4#
main71075-1B411-03i198205-198305
PF,GRAY,GRAY,TRIM2#
main71075-1B411-04i198205-198305
PF,BLUE,BLUE,TRIM8#
main71075-1B411-05i198205-198305
PF,BEIGE,BEIGE,TRIM4#
main71075-1B412-03i198305-198309
PF,GRAY,GRAY,TRIM2#
main71075-1B412-14i198305-198309
PF,BLUE,BLUE,TRIM8#
main71075-1B412-15i198305-198309
PF,BEIGE,BEIGE,TRIM4#
main71075-1B661-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71075-1B661-04i198305-198309
FB,BLUE,BLUE,TRIM8#
main71075-1B661-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
main71075-1B670-03i198108-198309
FB,GRAY,GRAY,TRIM2#
main71075-1B670-04i198108-198309
FB,BLUE,BLUE,TRIM8#
main71075-1B670-05i198108-198309
FB,BEIGE,BEIGE,TRIM4#
main71075-1B710-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71075-1B710-04i198108-198305
FB,BLUE,BLUE,TRIM8#
main71075-1B710-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71075-1B730-03i198108-198205
PF,GRAY,GRAY,TRIM2#
main71075-1B730-04i198108-198205
PF,BLUE,BLUE,TRIM8#
main71075-1B730-05i198108-198205
PF,BEIGE,BEIGE,TRIM4#
main71075-1B731-03i198205-198309
PF,GRAY,GRAY,TRIM2#
main71075-1B731-04i198205-198309
PF,BLUE,BLUE,TRIM8#
main71075-1B731-05i198205-198309
PF,BEIGE,BEIGE,TRIM4#
main71075-91C05-03i198108-198208
PF,GRAY,GRAY,TRIM2#
main71075-91C05-05i198108-198208
PF,BEIGE,BEIGE,TRIM4#
main71075-91C06-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71075-91C06-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71075-91C07-03i198208-198305
PF,GRAY,GRAY,TRIM2#
main71075-91C07-05i198208-198305
PF,BEIGE,BEIGE,TRIM4#
main71075-91C11-03i198305-198309
PF,GRAY,GRAY,TRIM2#
main71075-91C11-05i198305-198309
PF,BEIGE,BEIGE,TRIM4#
main71075-91C12-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71075-91C12-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
71075WWIRE, REAR SEAT CUSHION COVER
main90580-20007i198108-198309
L=1200
main90580-20116i198108-198309
L=960
main90580-20125×2i198108-198309
L=370
main90580-20131i198305-198309
L=990
main90580-20132i198108-198309
L=1000
main90580-20133×2i198305-198309
L=1240
main90580-20165×2i198108-198309
L=470
main90580-20168i198108-198309
L=1300
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-1B310-03i198108-198205
PF,GRAY,GRAY,TRIM2#
main71077-1B310-04i198108-198205
PF,BLUE,BLUE,TRIM8#
main71077-1B310-05i198108-198205
PF,BEIGE,BEIGE,TRIM4#
main71077-1B311-03i198205-198309
PF,GRAY,GRAY,TRIM2#
main71077-1B311-04i198205-198305
PF,BLUE,BLUE,TRIM8#
main71077-1B311-05i198205-198305
PF,BEIGE,BEIGE,TRIM4#
main71077-1B311-14i198305-198309
PF,BLUE,BLUE,TRIM8#
main71077-1B311-15i198305-198309
PF,BEIGE,BEIGE,TRIM4#
main71077-1B320-01i198108-198309
FB,BLACK,BLACK,TRIM2#
main71077-1B320-04i198108-198309
FB,BLUE,BLUE,TRIM8#
main71077-1B320-05i198108-198309
FB,BEIGE,BEIGE,TRIM4#
main71077-1B330-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71077-1B330-04i198108-198305
FB,BLUE,BLUE,TRIM8#
main71077-1B330-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71077-1B331-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71077-1B331-04i198305-198309
FB,BLUE,BLUE,TRIM8#
main71077-1B331-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
71077WWIRE, REAR SEATBACK COVER
main90580-20007i198108-198309
L=1200
main90580-20011×2i198108-198309
L=360
main90580-20020×2i198108-198309
L=420
main90580-20032×2i198108-198309
L=320
main90580-20033×2i198108-198309
L=670
main90580-20126×2i198305-198309
L=380
main90580-20131i198108-198309
L=990
main90580-20161×2i198108-198309
L=180
main90580-20171×2i198108-198309
L=510
main90580-25015×2i198305-198309
L=350
main90580-25030×2i198305-198309
L=530
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-1B400-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71460-1B400-04i198108-198305
FB,BLUE,BLUE,TRIM8#
main71460-1B400-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71460-1B401-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71460-1B401-04i198305-198309
FB,BLUE,BLUE,TRIM8#
main71460-1B401-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
main71460-1B420-01i198108-198309
FB,BLACK,BLACK,TRIM2#
main71460-1B420-04i198108-198309
FB,BLUE,BLUE,TRIM8#
main71460-1B420-05i198108-198309
FB,BEIGE,BEIGE,TRIM4#
main71460-1B440-03i198108-198205
PF,GRAY,GRAY,TRIM2#
main71460-1B440-04i198108-198205
PF,BLUE,BLUE,TRIM8#
main71460-1B440-05i198108-198205
PF,BEIGE,BEIGE,TRIM4#
main71460-1B441-03i198205-198305
PF,GRAY,GRAY,TRIM2#
main71460-1B441-04i198205-198305
PF,BLUE,BLUE,TRIM8#
main71460-1B441-05i198205-198305
PF,BEIGE,BEIGE,TRIM4#
main71460-1B442-03i198305-198309
PF,GRAY,GRAY,TRIM2#
main71460-1B442-14i198305-198309
PF,BLUE,BLUE,TRIM8#
main71460-1B442-15i198305-198309
PF,BEIGE,BEIGE,TRIM4#
main71460-1B701-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71460-1B701-04i198305-198309
FB,BLUE,BLUE,TRIM8#
main71460-1B701-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
main71460-1B710-03i198108-198309
FB,GRAY,GRAY,TRIM2#
main71460-1B710-04i198108-198309
FB,BLUE,BLUE,TRIM8#
main71460-1B710-05i198108-198309
FB,BEIGE,BEIGE,TRIM4#
main71460-1B750-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71460-1B750-04i198108-198305
FB,BLUE,BLUE,TRIM8#
main71460-1B750-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71460-1B770-03i198108-198205
PF,GRAY,GRAY,TRIM2#
main71460-1B770-04i198108-198205
PF,BLUE,BLUE,TRIM8#
main71460-1B770-05i198108-198205
PF,BEIGE,BEIGE,TRIM4#
main71460-1B771-03i198205-198309
PF,GRAY,GRAY,TRIM2#
main71460-1B771-04i198205-198309
PF,BLUE,BLUE,TRIM8#
main71460-1B771-05i198205-198309
PF,BEIGE,BEIGE,TRIM4#
main71460-91C05-03i198108-198208
PF,GRAY,GRAY,TRIM2#
main71460-91C05-05i198108-198208
PF,BEIGE,BEIGE,TRIM4#
main71460-91C06-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71460-91C06-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71460-91C07-03i198208-198305
PF,GRAY,GRAY,TRIM2#
main71460-91C07-05i198208-198305
PF,BEIGE,BEIGE,TRIM4#
main71460-91C11-03i198305-198309
PF,GRAY,GRAY,TRIM2#
main71460-91C11-05i198305-198309
PF,BEIGE,BEIGE,TRIM4#
main71460-91C12-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71460-91C12-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-1B300-01i198108-198305
FB,BLACK,BLACK,TRIM2#
main71480-1B300-04i198108-198305
FB,BLUE,BLUE,TRIM8#
main71480-1B300-05i198108-198305
FB,BEIGE,BEIGE,TRIM4#
main71480-1B301-03i198305-198309
FB,GRAY,GRAY,TRIM2#
main71480-1B301-04i198305-198309
FB,BLUE,BLUE,TRIM8#
main71480-1B301-05i198305-198309
FB,BEIGE,BEIGE,TRIM4#
main71480-1B370-03i198108-198205
PF,GRAY,GRAY,TRIM2#
main71480-1B370-04i198108-198205
PF,BLUE,BLUE,TRIM8#
main71480-1B370-05i198108-198205
PF,BEIGE,BEIGE,TRIM4#
main71480-1B371-03i198205-198309
PF,GRAY,GRAY,TRIM2#
main71480-1B371-04i198205-198305
PF,BLUE,BLUE,TRIM8#
main71480-1B371-05i198205-198305
PF,BEIGE,BEIGE,TRIM4#
main71480-1B371-14i198305-198309
PF,BLUE,BLUE,TRIM8#
main71480-1B371-15i198305-198309
PF,BEIGE,BEIGE,TRIM4#
main71480-1B380-01i198108-198309
FB,BLACK,BLACK,TRIM2#
main71480-1B380-04i198108-198309
FB,BLUE,BLUE,TRIM8#
main71480-1B380-05i198108-198309
FB,BEIGE,BEIGE,TRIM4#
71611PAD, REAR SEAT CUSHION
main71611-14120i198108-198309
main71611-14170i198108-198309
main71611-91C01i198108-198309
71650SPRING ASSY, REAR SEAT CUSHION
main71650-14050i198108-198309
main71650-14070i198108-198309
main71650-91C01i198108-198309
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-14040i198108-198309
main71651-14210i198108-198309
71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)
main71670-14080i198108-198309
72693HOOK, REAR SEAT CUSHION LOCK
main72693-14030×2i198108-198309
9011908160
main90119-08160

12 parts on this diagram · 2 diagrams in section
