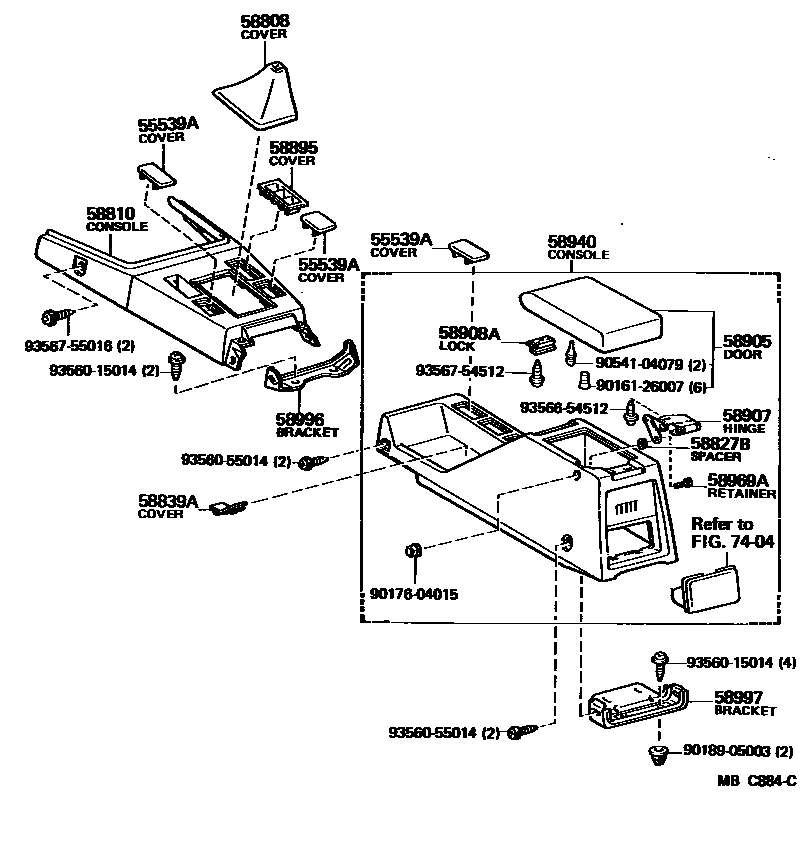

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-01×4iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

main55539-24010-04×4iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

main55539-24010-06×4iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14120-01iTA6#..MTM198108-198309

BLACK,BLACK,TRIM2#

main58808-14120-04iTA6#..MTM198108-198309

BLUE,BLUE,TRIM8#

main58808-14120-16iTA6#..MTM198108-198309

DARK BROWN,BROWN,TRIM4#

main58808-14130-01iCA60198204-198309

BLACK,BLACK,TRIM2#

main58808-14130-04iCA60198204-198309

BLUE,BLUE,TRIM8#

main58808-14130-16iCA60198204-198309

DARK BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58811-14190-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

main58811-14190-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

main58811-14190-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iTA6#..GL,XE198108-198201

58839ACOVER, CONSOLE BOX HOLE

main58839-14010-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

main58839-14010-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

main58839-14010-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

58895COVER, SWITCH HOLE, NO.1

main55528-14030-01iCA60,TA6#198108-198309

W/COIN POCKET,BLACK,BLACK,TRIM2#

main55528-14030-04iCA60,TA6#..CP,SED198108-198309

W/COIN POCKET,BLUE,BLUE,TRIM8#

main55528-14030-06iCA60,TA6#198108-198309

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14040-01iTA6#..GL,XE198108-198201

BLACK,BLACK,TRIM2#

main58905-14040-04iTA6#..XE198201-198309

BLUE,BLUE,TRIM8#

main58905-14040-06iTA62..GL198201-198208

DARK BROWN,BROWN,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14010iTA6#..GL,XE198108-198201

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-22010iTA62..GL198201-198208

58940CONSOLE ASSY, REAR

main58901-14040-01iCA60,TA6#..DLX198108-198309

BLACK,BLACK,TRIM2#

main58901-14040-04iTA60..GL198201-198309

BLUE,BLUE,TRIM8#

main58901-14040-06iTA60..GL198201-198309

DARK BROWN,BROWN,TRIM4#

main58901-14050-01iTA6#..XE198201-198309

BLACK,BLACK,TRIM2#

main58901-14050-04iTA62..GL198201-198208

BLUE,BLUE,TRIM8#

main58901-14050-06iTA62..GL198201-198208

DARK BROWN,BROWN,TRIM4#

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iTA6#..GL,XE198108-198201

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58902-14030iCA60,TA6#198108-198309

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-24010iCA60,TA6#198108-198309

7404ASH RECEPTACLE

→ Go to FIG 74-04

9016126007

main90161-26007

9017604015

main90176-04015

9018905003

main90189-05003

9054104079

main90541-04079

9356015014

main93560-15014

9356055014

main93560-55014

9356654512

main93566-54512

9356754512

main93567-54512

9356755016

main93567-55016

23 parts on this diagram · 1 diagram in section
