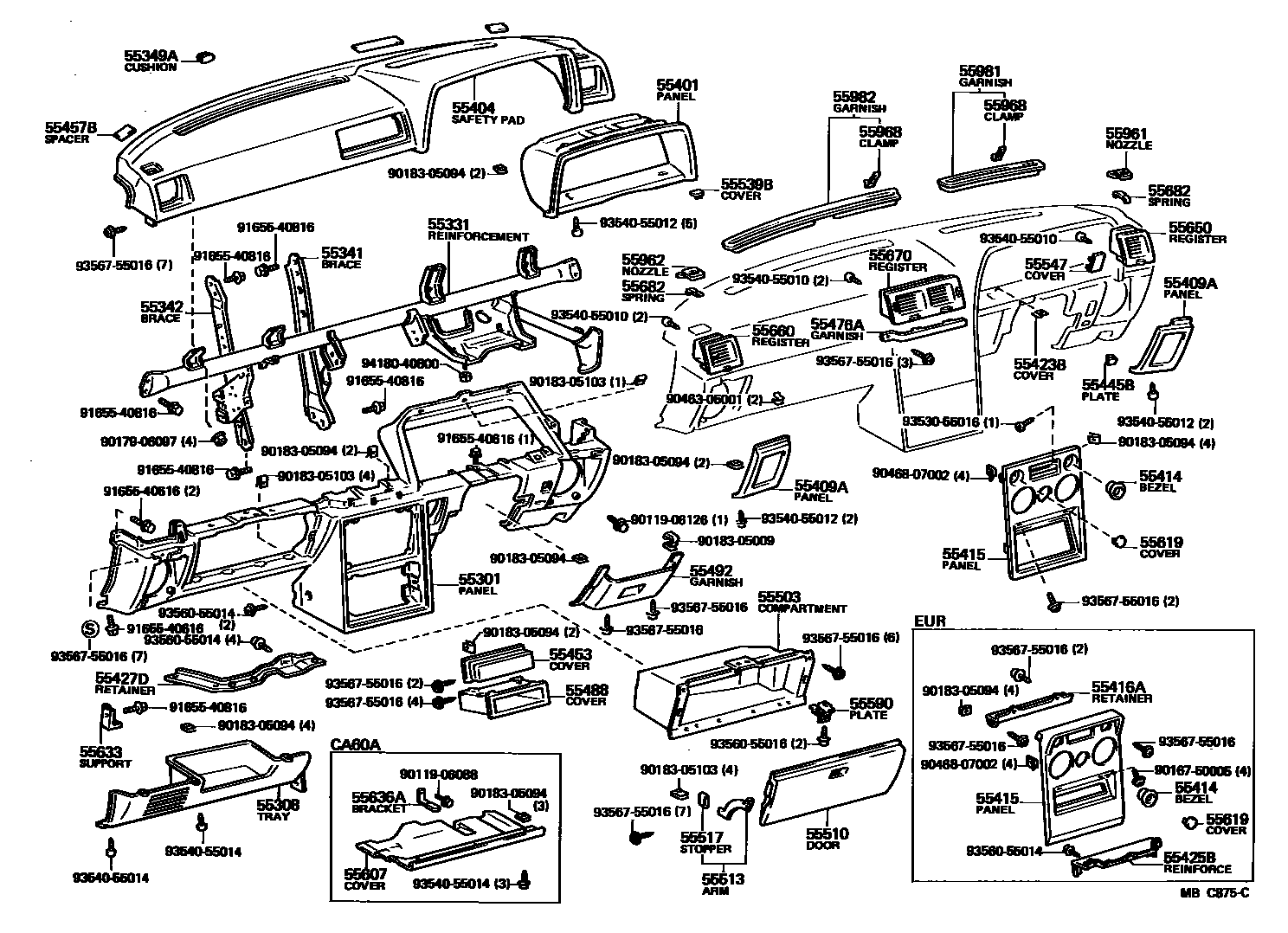

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55312-14060-01iCA60,TA6#..RHD198108-198305

BLACK,BLACK,TRIM2#

sub55312-14061

main55312-14060-04iCA60,TA6#..(CP,SED)..RHD198108-198305

BLUE,BLUE,TRIM8#

sub55312-14061

main55312-14060-06iCA60,TA6#..RHD198108-198305

DARK BROWN,BROWN,TRIM4#

sub55312-14061

main55312-14061-01iCA60,TA6#..RHD198305-198309

BLACK,BLACK,TRIM2#

main55312-14061-04iCA60,TA6#..(CP,SED)..RHD198305-198309

BLUE,BLUE,TRIM8#

main55312-14061-06iCA60,TA6#..RHD198305-198309

DARK BROWN,BROWN,TRIM4#

main55312-14070-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

main55312-14070-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

main55312-14070-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14160-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

sub55601-14160

main55601-14160-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

sub55601-14160

main55601-14160-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55601-14160

main55601-14170-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

sub55601-14170

main55601-14170-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

sub55601-14170

main55601-14170-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55601-14170

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-14060iCA60,TA6#..RHD198108-198309

main55305-14070iCA60,TA6#..LHD198108-198309

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14070iCA60,TA6#..RHD198108-198309

main55306-14080iCA60,TA6#..LHD198108-198309

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14110iCA60,TA6#..RHD198108-198309

main55307-14120iCA60,TA6#..LHD198108-198309

55349ACUSHION, INSTRUMENT PANEL

main55349-14050iCA60,TA6#198108-198309

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-14490iCA60,TA6#..RHD198108-198309

main55404-14500iCA60,TA6#..LHD198108-198309

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14400-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

sub55401-14400

main55401-14400-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

sub55401-14400

main55401-14400-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55401-14400

main55401-14410-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

main55401-14410-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

main55401-14410-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55408-14060-01iCA60,TA6#..RHD198108-198309

RH,BLACK,BLACK,TRIM2#

main55408-14060-04iCA60,TA6#..(CP,SED)..RHD198108-198309

RH,BLUE,BLUE,TRIM8#

main55408-14060-06iCA60,TA6#..RHD198108-198309

RH,DARK BROWN,BROWN,TRIM4#

main55408-14080-01iCA60,TA6#..LHD198108-198309

LH,BLACK,BLACK,TRIM2#

main55408-14080-04iCA60,TA6#..(CP,SED)..LHD198108-198309

LH,BLUE,BLUE,TRIM8#

main55408-14080-06iCA60,TA6#..LHD198108-198309

LH,DARK BROWN,BROWN,TRIM4#

main55409-14060-01iCA60,TA6#..RHD198108-198309

LH,BLACK,BLACK,TRIM2#

main55409-14060-04iCA60,TA6#..(CP,SED)..RHD198108-198309

LH,BLUE,BLUE,TRIM8#

main55409-14060-06iCA60,TA6#..RHD198108-198309

LH,DARK BROWN,BROWN,TRIM4#

main55409-14080-01iCA60,TA6#..LHD198108-198309

RH,BLACK,BLACK,TRIM2#

main55409-14080-04iCA60,TA6#..(CP,SED)..LHD198108-198309

RH,BLUE,BLUE,TRIM8#

main55409-14080-06iCA60,TA6#..LHD198108-198309

RH,DARK BROWN,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14050iCA60,TA6#198108-198309

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14050iCA60,TA6#..RHD..EUG198108-198309

main55405-14060iCA60,TA6#..LHD..EUR198108-198208

W/SOFT PAD

main55405-14060iCA60,TA60..LHD..EUG198208-198309

main55412-14070iTA60..GEN;CA60,TA6#..LHD..EUR198108-198309

55416ARETAINER, METER HOOD, NO.1

main55416-14050iCA60,TA6#..EUR198108-198309

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-14070iCA60,TA6#198108-198309

55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

main55425-14030iCA60,TA6#..(DLX,GL)..EUG198108-198309

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55427-14020iTA6#..RHD..(DLX,GL)..EUG198108-198309

*IPM

main55427-14030iCA60,TA6#..(SED,WG)..LHD..EUG198108-198309

*IPM

55445BPLATE, INSTRUMENT PANEL FINISH

main55548-14020iTA6#..XE198108-198309

55453COVER, RADIO TUNER OPENING

main55522-14070iCA60,TA6#..EUG198108-198309

main55522-14080iTA60..GEN;CA60,TA6#..LHD..EUR198108-198309

W/SOFT PAD

sub55522-20070

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iCA60,TA6#198108-198309

55476AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3

main55476-14010-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

main55476-14010-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

main55476-14010-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

55488COVER, STEREO OPENING

main55521-14050iTA60..GEN;CA60,TA6#..LHD..EUR198108-198309

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-14140-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

main55432-14140-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

main55432-14140-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

main55432-14150-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

main55432-14150-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

main55432-14150-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-14180iCA60,TA6#..RHD198108-198309

main55581-14190iCA60,TA6#..LHD198108-198309

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14150-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

main55550-14150-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

main55550-14150-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14090iCA60,TA6#198108-198309

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iCA60,TA6#198108-198309

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-12050iCA60,TA6#..RHD198108-198309

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-14030-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

sub55547-14030

main55547-14030-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

sub55547-14030

main55547-14030-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55547-14030

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-14010iCA60,TA6#198108-198309

sub55590-14020

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14060iCA60..RHD198204-198309

main55607-14070iCA60..LHD198204-198309

55619COVER, SWITCH HOLE

main55477-10010iCA60,TA6#198108-198309

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55633-14040iCA60,TA6#..RHD198108-198309

main55633-14050iCA60,TA6#..LHD198108-198309

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-24010iCA60198204-198309

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14090-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

sub55650-14090

main55650-14090-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

sub55650-14090

main55650-14090-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55650-14090

main55650-14100-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

sub55650-14100

main55650-14100-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

sub55650-14100

main55650-14100-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55650-14100

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14090-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

sub55660-14090

main55660-14090-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

sub55660-14090

main55660-14090-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

sub55660-14090

main55660-14100-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

main55660-14100-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

main55660-14100-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22060-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

sub55670-22060

main55670-22060-14iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

sub55670-22060

main55670-22060-16iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

sub55670-22060

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-14030iCA60,TA6#198108-198309

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14060-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

sub55961-14060

main55961-14060-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

sub55961-14060

main55961-14060-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

sub55961-14060

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14040-01iCA60,TA6#198108-198309

BLACK,BLACK,TRIM2#

sub55962-14040

main55962-14040-04iCA60,TA6#..CP,SED198108-198309

BLUE,BLUE,TRIM8#

sub55962-14040

main55962-14040-06iCA60,TA6#198108-198309

DARK BROWN,BROWN,TRIM4#

sub55962-14040

55968CLAMP, DEFROSTER NOZZLE

main55968-14020iCA60,TA6#..LHD198108-198309

LH

main55968-14020iCA60,TA6#..LHD198108-198309

RH

main55968-14030iCA60,TA6#..RHD198108-198309

LH

main55968-14030iCA60,TA6#..RHD198108-198309

RH

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-14030-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

main55981-14030-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

main55981-14030-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

main55981-14040-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

main55981-14040-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

main55981-14040-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-14030-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

main55982-14030-04iCA60,TA6#..(CP,SED)..RHD198108-198309

BLUE,BLUE,TRIM8#

main55982-14030-06iCA60,TA6#..RHD198108-198309

DARK BROWN,BROWN,TRIM4#

main55982-14040-01iCA60,TA6#..LHD198108-198309

BLACK,BLACK,TRIM2#

main55982-14040-04iCA60,TA6#..(CP,SED)..LHD198108-198309

BLUE,BLUE,TRIM8#

main55982-14040-06iCA60,TA6#..LHD198108-198309

DARK BROWN,BROWN,TRIM4#

9011906088

main90119-06088

9011906126

main90119-06126

9016750005

main90167-50005

9017906097

main90179-06097

9018305009

main90183-05009

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9046807002

main90468-07002

9165540616

main91655-40616

9165540816

main91655-40816

9353055016

main93530-55016

9354055010

main93540-55010

9354055012

main93540-55012

9354055014

main93540-55014

9356055014

main93560-55014

9356055016

main93560-55016

9356755016

main93567-55016

9418040800

main94180-40800

60 parts on this diagram · 2 diagrams in section
