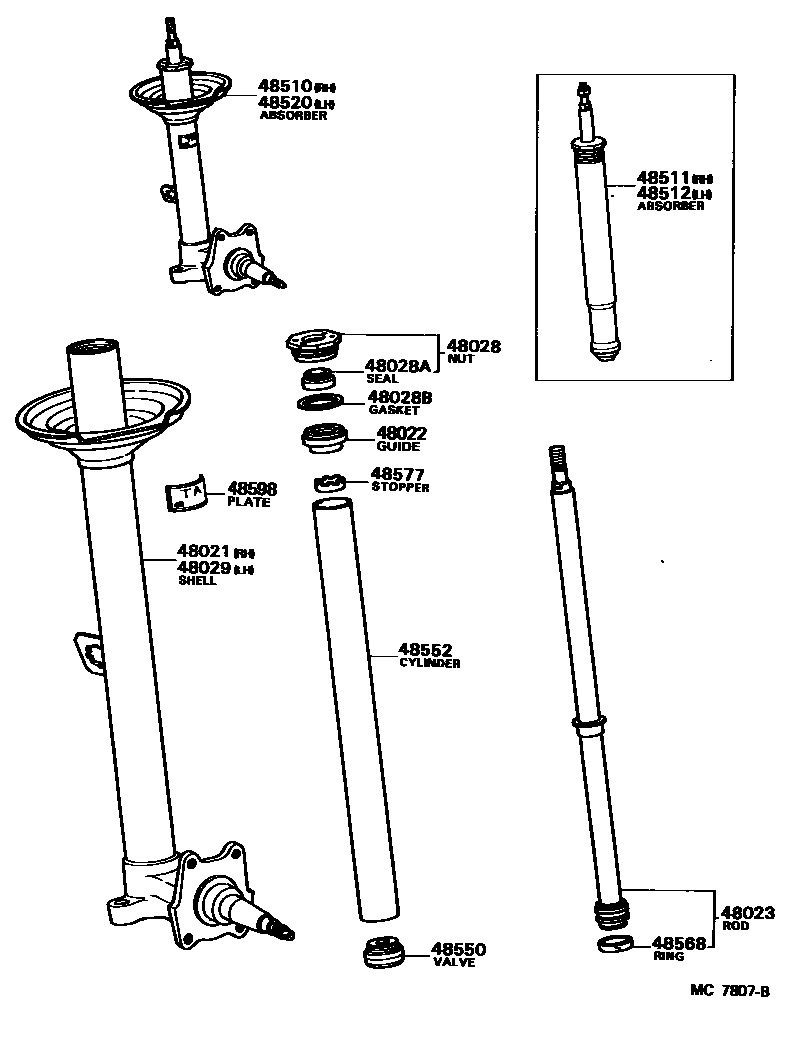

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14060iCA60,TA6#198108-198309

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-14010iCA60,TA6#198108-198309

sub48022-22040

sub90430-42001

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-14052iCA60,TA6#..WG198108-198309

main48023-14100iCA60,TA6#..CP,SED198108-198309

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011iCA60,TA6#198108-198309

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001iCA60,TA6#198108-198309

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206iCA60,TA6#198108-198309

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-14010iCA60,TA6#198108-198309

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-14150iCA60,TA6#..WG198108-198309

sub48510-14160

main48510-14160iCA60,TA6#..CP,SED198108-198309

sub48510-14161

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-14140iCA60,TA6#..WG198108-198309

main48511-14150iCA60,TA6#..CP,SED198108-198309

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-14140iCA60,TA6#..WG198108-198309

main48511-14150iCA60,TA6#..CP,SED198108-198309

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-14010iCA60,TA6#..WG198108-198309

sub48520-14020

main48520-14020iCA60,TA6#..CP,SED198108-198309

sub48520-14021

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-14050iCA60,TA6#..WG198108-198309

main48550-14060iCA60,TA6#..CP,SED198108-198309

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-14010iCA60,TA6#198108-198309

48568RING, SHOCK ABSORBER PISTON

main48568-22020iCA60,TA6#198108-198307

main48568-22021iCA60,TA6#198307-198309

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011iCA60,TA6#198108-198309

48598PLATE, ABSORBER NAME

main48598-14270iCA60,TA6#..WG198108-198309

RH

main48598-14280iCA60,TA6#..WG198108-198309

LH

main48598-14290iCA60,TA6#..CP,SED198108-198309

RH

main48598-14300iCA60,TA6#..CP,SED198108-198309

LH

16 parts on this diagram · 2 diagrams in section
