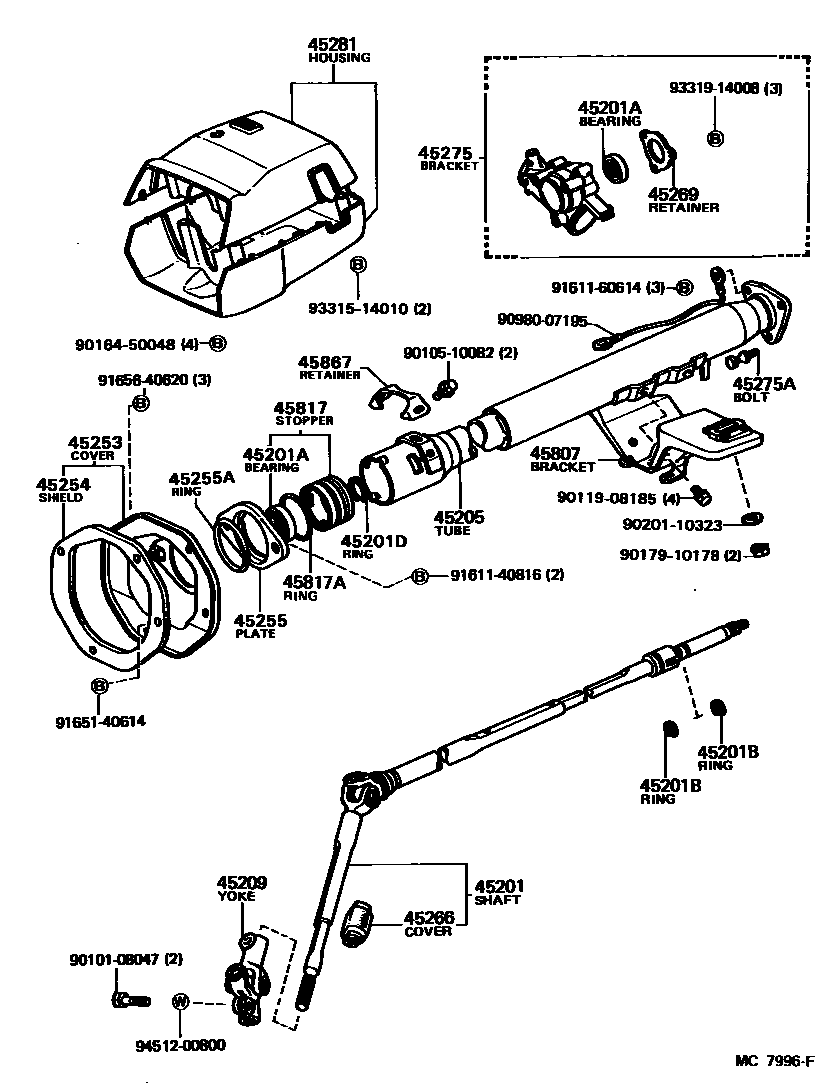

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-14010iTA6#..RHD198108-198304

sub45210-14H00

main45210-14020iTA60..RHD..GEN198201-198305

sub45210-14H00

main45210-14021iCA60,TA6#..RHD198305-198309

main45210-14050iCA60,TA60..LHD;TA62..LHD..EUG198108-198305

sub45210-14H01

main45210-14051iCA60,TA60..LHD198305-198309

main45210-14080iTA62..SDN,SDZ198108-198309

main45210-22050iCA60,TA60;TA62..EUG198108-198309

W/TILT STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCA60,TA60;TA62..EUG198108-198309

UPR,W/TILT STEERING

main90363-18038iCA60,TA6#198108-198309

UPR

main90363-28001iCA60,TA60;TA62..EUG198108-198309

CTR,W/TILT STEERING

main90363-30007iCA60,TA60;TA62..EUG198108-198309

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCA60,TA6#198108-198309

T=1.20,T=1.2

main90520-17196iCA60,TA6#198108-198309

T=1.35-1.45,T=1.4

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iCA60,TA60;TA62..EUG198108-198309

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-14100iCA60,TA60;TA62..EUG198108-198309

main45870-14110iCA60,TA60;TA62..EUG198108-198309

W/TILT STEERING

main45870-14130iTA62..SDN,SDZ198108-198309

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14010iCA60,TA60..LHD;TA62..LHD..EUG198108-198305

sub45209-14060

sub45209-32010

main45209-14030iCA60,TA6#..RHD198108-198305

main45209-32010iCA60,TA60;TA62..EUG198305-198309

sub45209-10020

45253COVER, STEERING COLUMN HOLE

main45025-14100iCA60,TA6#..RHD198108-198309

main45025-14110iCA60,TA60..LHD;TA62..LHD..EUG198108-198309

main45025-14140iTA62..SDN,SDZ198108-198309

45254SHIELD, STEERING COLUMN HOLE

main45254-24011iCA60,TA6#198108-198309

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iTA62..SDN,SDZ198108-198309

main45255-12030iCA60,TA60;TA62..EUG198108-198309

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iTA62..SDN,SDZ198108-198309

main90301-59001iCA60,TA60;TA62..EUG198201-198309

main90301-60122iTA60;TA62..EUG198108-198201

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iCA60,TA60;TA62..EUG198108-198309

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iCA60,TA6#..LHD198211-198305

main45269-20010iCA60,TA6#..LHD198108-198309

sub45269-35010

main45269-35010iCA60,TA6#..RHD198108-198309

45275BRACKET, STEERING COLUMN, UPPER

main45280-14010iCA60,TA6#..LHD198108-198211

sub45280-14011

main45280-14011iCA60,TA6#..LHD198211-198309

main45280-14020iCA60,TA6#..LHD198108-198211

W/TILT STEERING

sub45280-14021

main45280-14021iCA60,TA6#..LHD198211-198309

W/TILT STEERING

sub45280-14041

main45280-24011iCA60,TA6#..RHD198108-198209

W/TILT STEERING

sub45280-24012

main45280-24012iCA60,TA6#..RHD198209-198309

W/TILT STEERING

main45280-24030iCA60,TA6#..RHD198108-198209

sub45280-24031

main45280-24031iCA60,TA6#..RHD198209-198309

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iCA60,TA6#..EUR;TA60..LHD..GEN198108-198309

main45897-14010iCA60,TA60;TA62..EUG198108-198309

W/TILT STEERING

sub45897-12030

45281HOUSING, STEERING COLUMN

main45286-14922-01iCA60,TA6#..RHD198108-198309

BLACK,W/TILT STEERING,BLACK,TRIM2#

sub45286-14922

main45286-14922-04iCA60,TA6#..(CP,SED)..RHD198208-198309

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-14922

main45286-14922-06iCA60,TA6#..RHD198208-198309

DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45286-14922

main45286-14923-01iCA60,TA6#..LHD198108-198307

BLACK,BLACK,TRIM2#

sub45286-14926

main45286-14923-04iCA60,TA6#..(CP,SED)..LHD198208-198307

BLUE,BLUE,TRIM8#

sub45286-14926

main45286-14923-06iCA60,TA6#..LHD198208-198307

DARK BROWN,BROWN,TRIM4#

sub45286-14926

main45286-14924-01iCA60,TA60..LHD;TA62..LHD..EUG198108-198305

BLACK,W/TILT STEERING,BLACK,TRIM2#

sub45286-14925

main45286-14924-04iCA60,TA6#..(CP,SED)..LHD198208-198305

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-14925

main45286-14924-06iCA60,TA6#..LHD198208-198305

DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45286-14925

main45286-14926-01iCA60,TA6#..LHD198307-198309

BLACK,BLACK,TRIM2#

sub45286-14926

main45286-14926-04iCA60,TA6#..(CP,SED)..LHD198307-198309

BLUE,BLUE,TRIM8#

sub45286-14926

main45286-24900-01iCA60,TA6#..RHD198108-198309

BLACK,BLACK,TRIM2#

sub45286-24900

main45286-24900-04iCA60,TA6#..(CP,SED)..RHD198208-198309

BLUE,BLUE,TRIM8#

sub45286-24900

main45286-24900-06iCA60,TA6#..RHD198208-198309

DARK BROWN,BROWN,TRIM4#

sub45286-24900

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-14030iCA60,TA60..LHD;TA62..LHD..EUG198108-198309

W/TILT STEERING

main45082-14050iCA60,TA6#..RHD198108-198309

W/TILT STEERING

main45807-14100iCA60,TA6#..LHD198108-198309

main45807-24011iCA60,TA6#..RHD198108-198309

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iCA60,TA60;TA62..EUG198108-198309

sub45808-12030

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iCA60,TA60;TA62..EUG198108-198309

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iCA60,TA60;TA62..EUG198108-198309

9010108047

main90101-08047

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140816

main91611-40816

9161160614

main91611-60614

9165140614

main91651-40614

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

33 parts on this diagram · 6 diagrams in section
