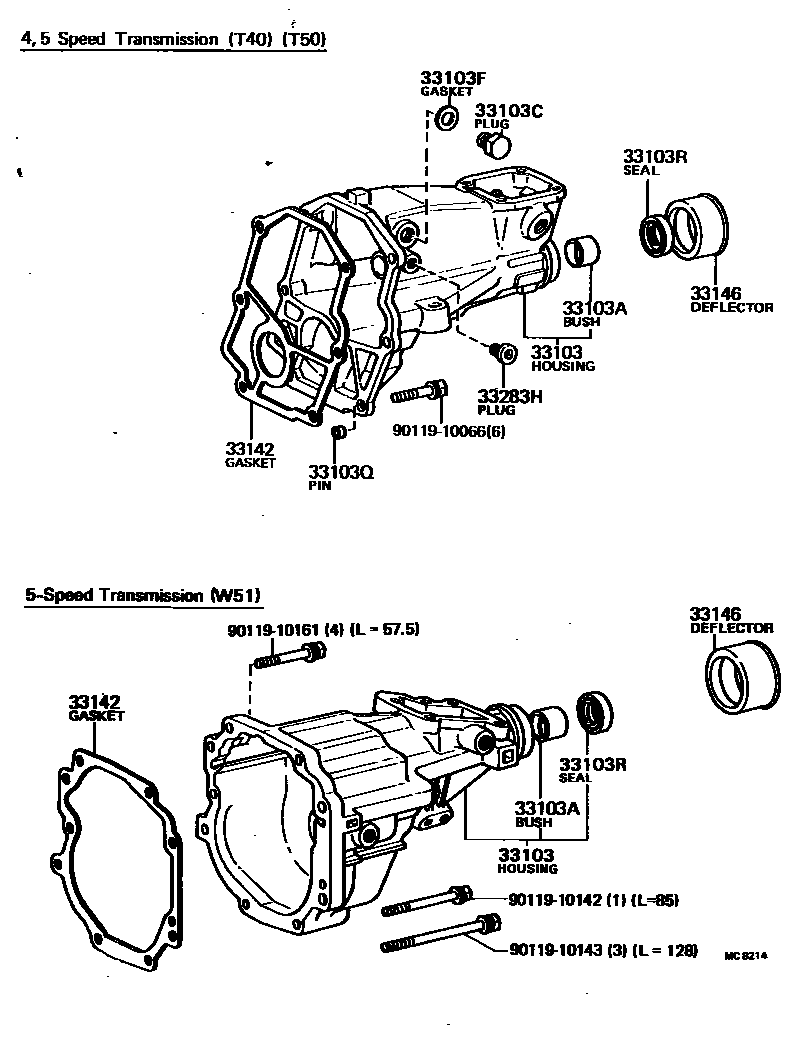

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-14030iTA60..4F198108-198309

main33103-14040iTA6#..5F198108-198309

main33103-20100iCA60198204-198306

main33103-20101iCA60198306-198309

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iTA6#..MTM198108-198309

main90999-73062iCA60198204-198309

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90109-18001iTA60..4F198108-198309

main90341-18006iTA60..5F;TA62..EUG198308-198309

main90341-18049iTA60..5F;TA62..5F..EUG198108-198308

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18007iTA60..MTM;TA62..5F..EUG198108-198108

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iTA6#..MTM198108-198309

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iTA6#..MTM198109-198309

main90311-32086iTA6#..MTM198108-198109

main90311-38043iCA60198204-198309

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iTA6#..MTM198108-198309

main33142-20020iCA60198204-198309

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iTA6#..MTM198108-198309

main33146-30010iCA60198204-198309

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iTA6#..5F198108-198309

9011910066

main90119-10066

9011910142

main90119-10142

9011910143

main90119-10143

9011910161

main90119-10161

13 parts on this diagram · 1 diagram in section
