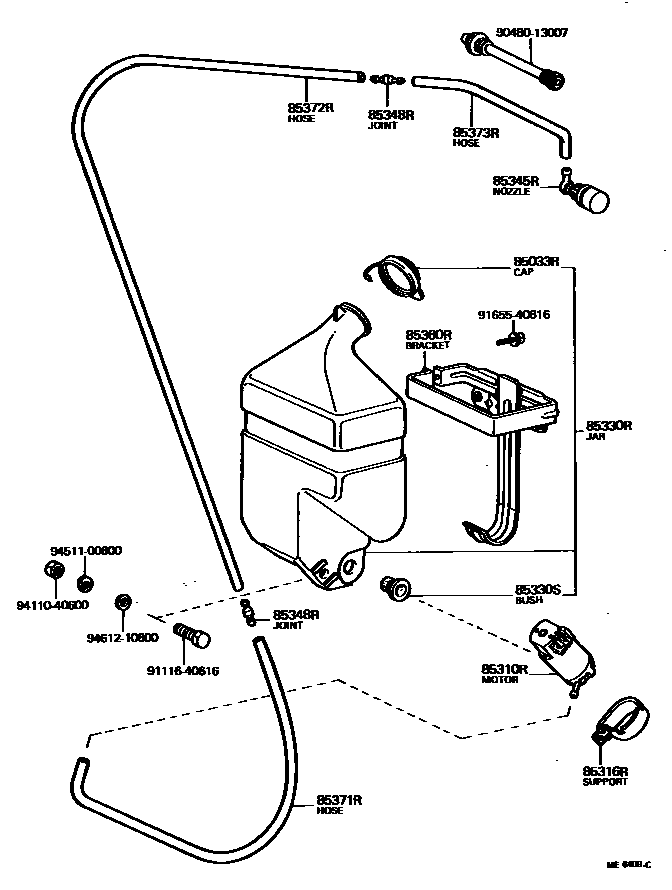

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120iTA4#..WG197708-198107

85310RMOTOR ASSY, REAR WASHER

main85310-20100iTA4#..WG197708-198107

85316RSUPPORT, REAR WASHER MOTOR

main85316-23010iTA4#..WG197708-198107

85330RJAR ASSY, REAR WASHER

main85330-23011iTA4#..WG197708-198107

85330SBUSH, REAR WASHER JAR

main90099-32089iTA4#..WG197708-198107

85345RNOZZLE, REAR WASHER

main85035-15010iTA40..WG197708-197906

main85035-91255iTA4#..WG197906-198107

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201×2iTA4#..WG197708-198107

85360RBRACKET ASSY, REAR WASHER

main85360-15010iTA4#..WG197708-198107

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06286iTA4#..WG197708-198107

L=1000(*H,L=400)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33315iTA4#..WG197708-198107

L=1450(*H,L=900)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33032iTA4#..WG197708-198107

L=1000(*H,L=300)

9048013007

main90480-13007

9111640616

main91116-40616

9165540616

main91655-40616

9411040600

main94110-40600

9451100600

main94511-00600

9461210600

main94612-10600

17 parts on this diagram · 1 diagram in section
