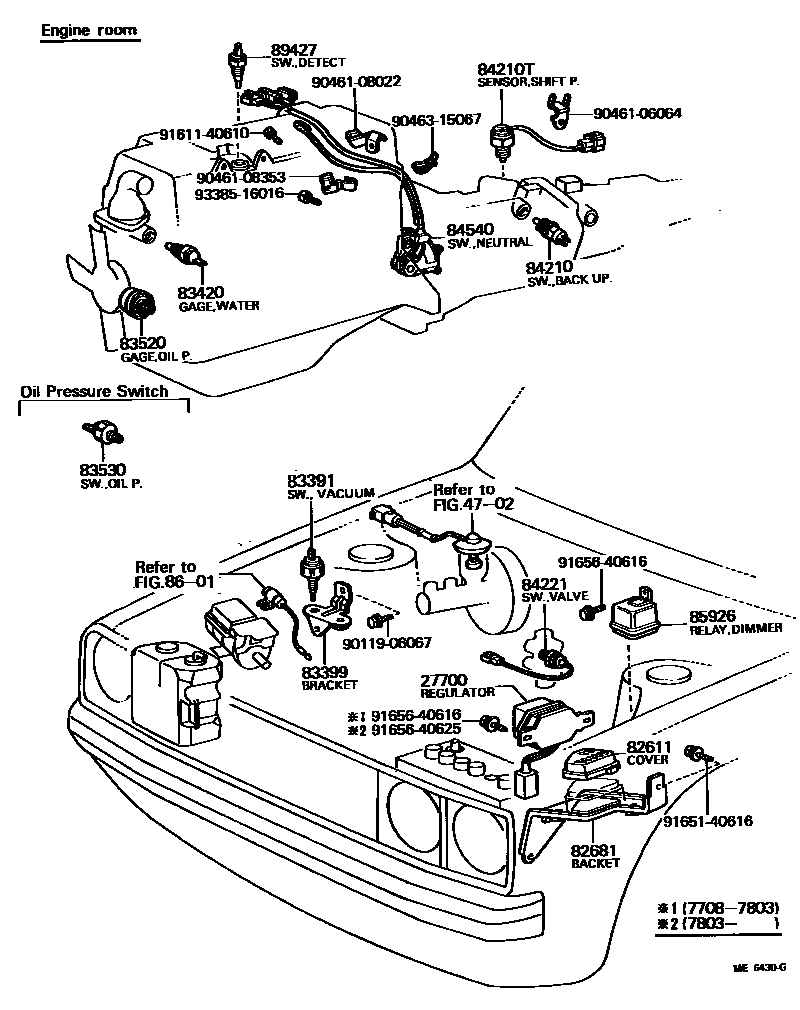

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-27010i2T#..TA40197708-197803

sub27700-27050

main27700-27040i2T#..TA40197803-197908

sub27700-27050

main27700-27050i2T#,3T#..TA4#197908-198010

sub27700-54030

main27700-54030i2T#,3T#..TA4#198010-198107

sub27700-54040

4702

82611COVER, FUSE BLOCK

main82611-14030iTA4#197908-198107

82681BRACKET, FUSE HOLDER

main82681-14030iTA4#197908-198107

83391SWITCH, VACUUM

main83391-12060iTA47..MTM..SDN197908-198107

MARK=400M

sub83391-10080

83399BRACKET, VACUUM SWITCH

main83399-14050iTA47..MTM..SDN197908-198107

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iTA40197708-197908

main83420-16010iTA4#197908-198107

DENSO

sub83420-20020

main83420-20020iTA4#197908-198107

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14020iTA40..ST197708-197906

sub83520-14021

main83520-14021iTA40..ST197906-198107

sub83520-14022

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTA4#..DLX,GL,STD197708-198107

sub83530-14030

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTA40..MTM197708-198107

main84210-60010iTA47..MTM..EUG198008-198107

84210TSENSOR ASSY, SHIFT POINT

main84220-12010iTA47..MTM..SDN197908-198107

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-12030iTA40..GEN197708-198107

84540SWITCH ASSY, NEUTRAL START

main84540-14060iTA4#..3FC197908-198008

main84540-14061iTA4#..3FC198008-198107

main84540-22140iTA40..3FC197708-197908

85926RELAY, HEADLAMP DIMMER

main85926-14010iTA40197802-197908

main85926-30020iTA4#197908-198107

8601

89427SWITCH, TEMPERATURE DETECT

main89427-12030iTA47..SDN197908-198107

MARK=60-105

9011906067

main90119-06067

9046106064

main90461-06064

9046108022

main90461-08022

9046108353

main90461-08353

9046315067

main90463-15067

9161140610

main91611-40610

9165140616

main91651-40616

9165640616

main91656-40616

9165640625

main91656-40625

9338516016

main93385-16016

26 parts on this diagram · 4 diagrams in section
