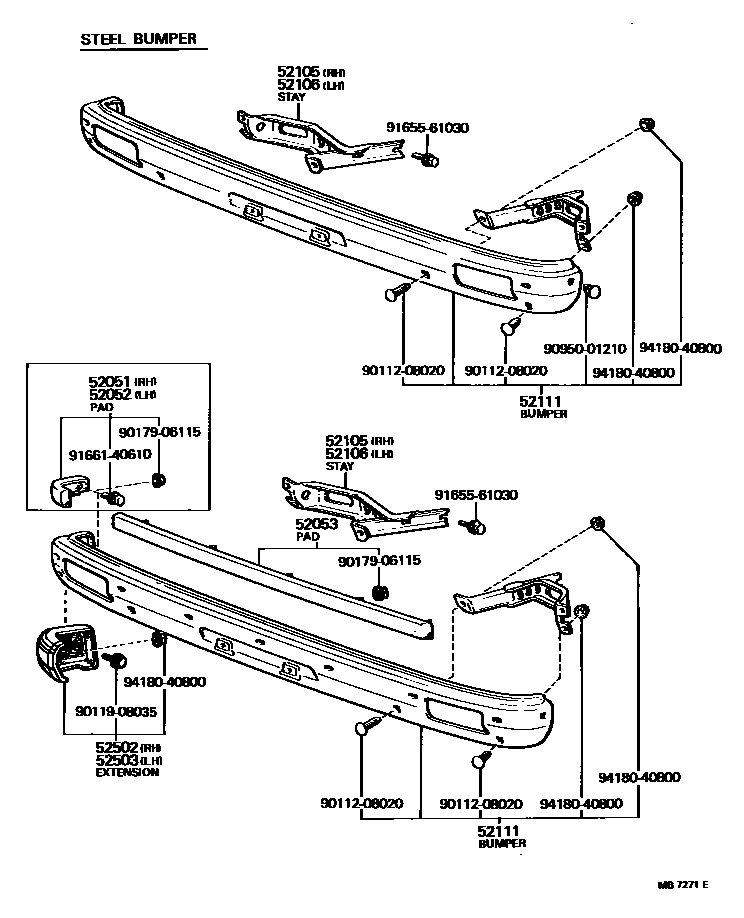

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-19035iTA40197708-197908

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-19035iTA40197708-197908

52053PAD SUB-ASSY, FRONT BUMPER

main52051-19095iTA4#197908-198107

main52053-19015iTA40197708-197908

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-14090iTA40197708-197908

main52011-14091iTA4#197908-198107

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-14090iTA40197708-197908

main52012-14091iTA4#197908-198107

52111BUMPER ASSY, FRONT

main52111-19295iTA40..RHD;TA40..LHD..GEN;TA40..LHD..EUG197708-197908

main52111-19305iTA40..RHD;TA40..LHD..GEN;TA40..LHD..EUG197708-197908

W/BUMPER PAD

main52111-19345iTA40..SDN197801-197908

W/BUMPER PAD,*HC

main52111-19555iTA4#197908-198107

W/BUMPER PAD

main52111-19565iTA40..(DLX,STD)..GEN;TA40..LHD..(DLX,STD)..EUG197908-198107

52502EXTENSION SUB-ASSY, FRONT BUMPER, RH

52503EXTENSION SUB-ASSY, FRONT BUMPER, LH

9011208020

main90112-08020

9011908035

main90119-08035

9017906115

main90179-06115

9095001210

main90950-01210

9165561030

main91655-61030

9166140610

main91661-40610

9418040800

main94180-40800

15 parts on this diagram · 3 diagrams in section
