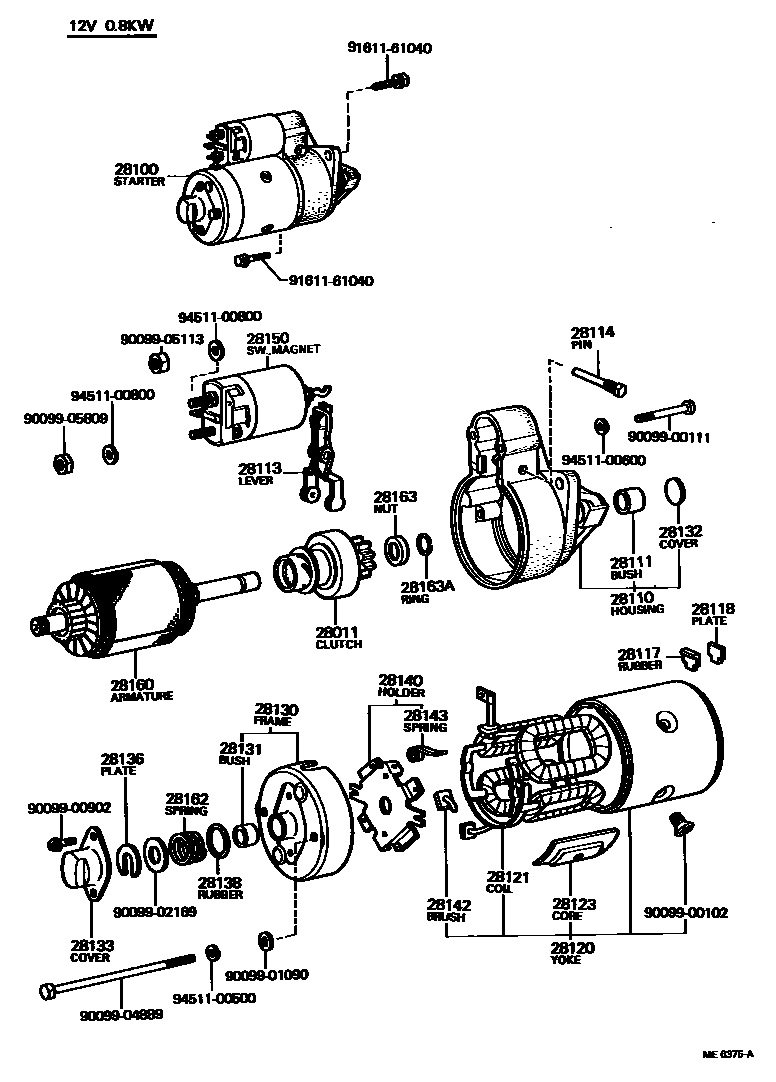

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-15010i198008-198107
12V 0.8KW
main28011-22022i197708-198008
12V 0.8KW
sub28011-22020
main28011-26041i197801-197908
12V 1.0KW
main28011-26042i197908-198107
12V 1.0KW
main28011-41020i197708-198008
12V 1.0KW
28100STARTER ASSY
main28100-25021i197708-197808
12V 1.0KW
main28100-26063i197801-197908
12V 1.0KW
sub28100-27010
main28100-26070i197908-198008
12V 1.0KW,12V 1.0KW
main28100-26080i197708-198008
12V 0.8KW
sub28100-26142
main28100-26150i197808-198008
12V 1.0KW
sub28100-25032
main28100-26160i198008-198107
12V 0.8KW
sub28100-27020
main28100-27030i198008-198107
12V 1.0KW,12V 1.0KW
main28100-27050i198008-198107
12V 1.0KW,12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
main28110-25011i197708-198008
12V 0.8KW
main28110-25020i197708-198008
12V 1.0KW
main28110-26040i197801-197908
12V 1.0KW
main28110-26070i197908-198008
12V 1.0KW
main28110-27020i198008-198107
12V 0.8KW
main28110-27030i198008-198107
12V 1.0KW
28111BUSH(FOR STARTER HOUSING)
main28111-51011i197708-198008
12V 0.8KW,1.0KW
28113LEVER, STARTER PINION DRIVE
main28113-15011i198008-198107
12V 0.8KW
main28113-25010i197708-198008
12V 0.8KW
main28113-41011i197708-198008
12V 1.0KW
28114PIN, STARTER DRIVE LEVER SET
main28114-25010i197708-198008
12V 0.8KW
main28114-41011i197708-198008
12V 1.0KW
28117RUBBER(FOR STARTER YOKE)
main28117-25010i197708-198008
12V 0.8KW
sub28117-25011
sub28118-25011
main28117-41020i197708-198008
12V 1.0KW
28118PLATE(FOR STARTER YOKE)
main28118-25010i197708-198008
12V 0.8KW
28120YOKE ASSY, STARTER
main28120-15010i198008-198107
12V 0.8KW
main28120-25011i197708-198008
12V 0.8KW
main28120-25021i197708-197808
12V 1.0KW
main28120-26041i197801-197908
12V 1.0KW
main28120-26070i198008-198107
12V 1.0KW
sub28120-26071
main28120-26150i197808-198008
12V 1.0KW
28121COIL, STARTER FIELD
main28121-25012i197708-198008
12V 0.8KW
sub28121-36040
main28121-34070i197808-198008
12V 1.0KW
main28121-41020i197708-197808
12V 1.0KW
28123CORE, STARTER POLE
main28123-40012×4i197708-198008
12V 0.8KW
main28123-41020×4i197708-198008
12V 1.0KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-21011i197708-198008
12V 0.8KW
main28130-26070i198008-198107
12V 1.0KW
main28130-37010i198008-198107
12V 0.8KW
main28130-41020i197708-198008
12V 1.0KW
28131BUSH, COMMUTATOR END FRAME
main28131-20010i197708-198008
12V 0.8KW,1.0KW,STD
main90099-10039i197708-198008
12V 0.8KW,1.0KW,U/S 0.3
main90099-10040i197708-198008
12V 0.8KW,1.0KW,U/S 0.5
28132COVER, STARTER BEARING(FOR DRIVE HOUSING)
main28166-41011i197708-198008
12V 0.8KW,1.0KW
28133COVER, BEARING(FOR END FRAME)
main28132-15010i198008-198107
12V 0.8KW
sub28132-15011
main28132-40010i197708-198008
12V 1.0KW
main28132-41011i197708-198008
12V 0.8KW
28136PLATE, STARTER LOCK
main28136-15010i198008-198107
12V 0.8KW
main28136-40010i197708-198008
12V 1.0KW
main28136-41011i197708-198008
12V 0.8KW
28138RUBBER(FOR STARTER BEARING COVER)
main28138-15010i198008-198107
12V 0.8KW
main28138-40010i197708-198008
12V 1.0KW
sub28138-26030
main28138-41011i197708-198008
12V 0.8KW
28140HOLDER ASSY, STARTER BRUSH
main28140-15010i198008-198107
12V 0.8KW
main28140-25010i197708-198008
12V 0.8KW
sub28140-25011
main28140-25020i197708-198008
12V 1.0KW
main28140-26070i197908-198107
12V 1.0KW
main28140-34030i197801-197908
12V 1.0KW
28142BRUSH, STARTER
main28142-25010×2i197708-198008
12V 0.8KW
main28142-25011×2i197808-198008
12V 1.0KW,FOR HOLDER
main28142-25020×2i197708-198008
12V 1.0KW,FOR YOKE
28143SPRING, STARTER BRUSH
main28143-40010×4i197708-197808
12V 0.8KW,1.0KW
main28143-40040×4i197808-198008
12V 1.0KW
main90099-17112×4i197801-198107
12V 1.0KW
28150SWITCH ASSY, MAGNET STARTER
main28150-22011i197708-198008
12V 0.8KW
main28150-25010i197708-197807
12V 1.0KW
sub28150-25030
main28150-25020i197807-198008
12V 1.0KW
main28150-26062i197801-197908
12V 1.0KW
main28150-26070i197908-198008
12V 1.0KW
sub28150-27051
main28150-26160i198008-198107
12V 0.8KW
main28150-27030i198008-198107
12V 1.0KW
sub28150-27031
sub28199-27031
main28150-27050i198008-198107
12V 1.0KW
sub28150-27051
28160ARMATURE ASSY, STARTER
main28160-15010i198008-198107
12V 0.8KW
main28160-22021i197708-198008
12V 0.8KW
main28160-26040i197801-197908
12V 1.0KW
main28160-26070i197908-198107
12V 1.0KW
sub28160-26071
main28160-41020i197708-198008
12V 1.0KW
28162SPRING, STARTER BRAKE
main28162-15010i198008-198107
12V 0.8KW
main28162-41011i197708-198008
12V 0.8KW
main28162-41022i197708-198008
12V 1.0KW
28163NUT OR COLLAR, PINION STOP, STARTER
main28163-40011i197708-198008
12V 0.8KW,1.0KW
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
main90099-07047i197708-198008
12V 0.8KW,1.0KW
9009900102
main90099-00102
9009900111
main90099-00111
9009900902
main90099-00902
9009901090
main90099-01090
9009902169
main90099-02169
9009904889
main90099-04889
9009905113
main90099-05113
9009905809
main90099-05809
9161161040
main91611-61040
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800

37 parts on this diagram · 5 diagrams in section
