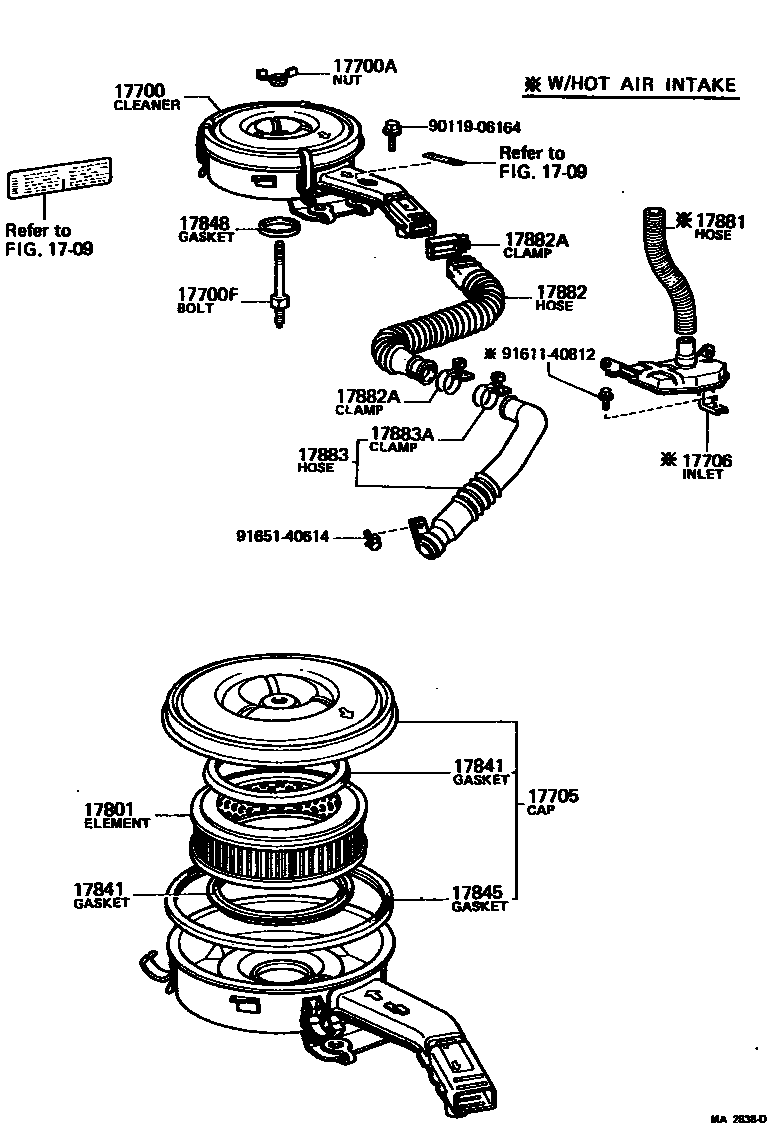

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1709

17700CLEANER ASSY, AIR

main17700-26180i2TB..TA40197708-198107

W/O HOT AIR INTAKE

main17700-26190i2TB..TA40197708-198107

W/HOT AIR INTAKE

main17700-26201i2T,3T..TA4#197708-198107

W/O HOT AIR INTAKE

sub17700-26290

main17700-26211i2T,3T..TA4#197708-198107

W/HOT AIR INTAKE

main17700-26220i2TC..TA40197801-197908

main17700-28030i3TC..TA47197908-198008

main17700-28031i3TC..TA47198008-198107

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2T,2TC,3T#..TA4#197708-198107

main94271-00600×2i2TB..TA40197708-198107

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06142i2TB..TA40197708-198107

RR CARBURETOR

main90116-06222i2T,2TC,3T#..TA4#197708-198107

main90116-06230i2TB..TA40197708-198107

FR CARBURETOR

17705CAP SUB-ASSY, AIR CLEANER

main17705-25012i2T,2TC,3TC..TA4#197708-198008

main17705-25013i2T,3T#..TA4#198008-198107

sub17705-26080

main17705-26011i2TB..TA40197708-198107

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17752-25010i2T,2TB,3T..TA4#197708-198107

W/HOT AIR INTAKE

main17752-26021i3TC..TA47197908-198008

W/HOT AIR INTAKE

main17901-28010i3TC..TA47198008-198107

W/HOT AIR INTAKE

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-24020×2i2TB..TA40197708-198107

main17801-25010i2T,2TC,3T#..TA4#197708-198107

17841GASKET, FILTER ELEMENT

main17841-24011×4i2TB..TA40197708-198107

main17841-31020×2i2T,2TC,3T#..TA4#197708-198107

17845GASKET, AIR CLEANER CAP

main17845-25010i2T,2TC,3T#..TA4#197708-198107

sub17845-42010

main17845-26010i2TB..TA40197708-198107

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63187×2i2T#,3TC..TA4#197708-198008

17881HOSE, AIR CLEANER, NO.1

main17881-26010i2T,3T..TA4#197708-198010

W/HOT AIR INTAKE

sub17881-34040

main17881-26020i2TB,2TC,3TC..TA4#197708-198010

W/HOT AIR INTAKE

sub17881-26021

17882HOSE, AIR CLEANER, NO.2

main17882-27020i2T#..TA40197708-197805

main17882-27030i2T,2TB..TA40197805-198010

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i2T#,3T#..TA4#197708-198107

AIR CLEANER SIDE

main90460-58004i2T#,3T#..TA4#197812-198101

FENDER SIDE

sub96111-10580

main90460-58013i2T#..TA40197808-197812

FENDER SIDE

sub96111-10580

main96111-10560i2T#..TA40197708-197808

FENDER SIDE

main96111-10570i2T#,3T#..TA4#198101-198107

FENDER SIDE

17883HOSE, AIR CLEANER, NO.3

main17883-26010i2T#,3TC..TA4#197708-198008

main53299-20031i2T#,3T#..TA4#198008-198107

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-60001i2T#,3T#..TA4#197708-198107

9011906164

main90119-06164

9161140812

main91611-40812

9165140614

main91651-40614

18 parts on this diagram · 4 diagrams in section
