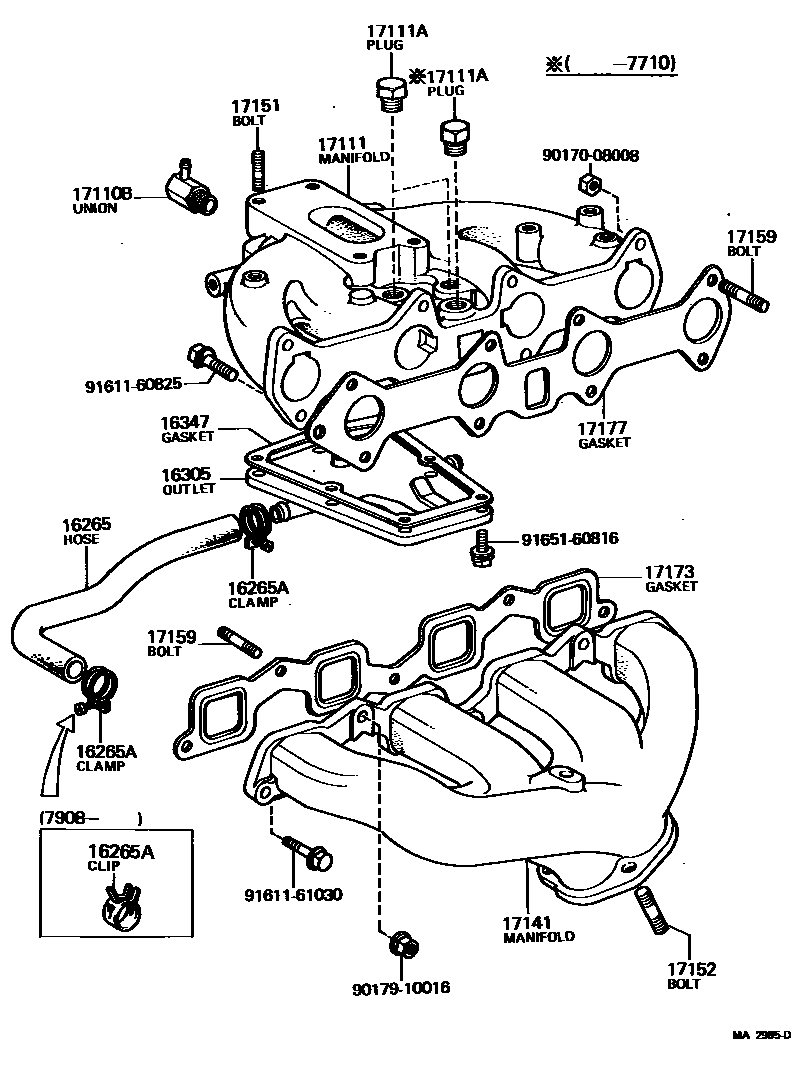

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
16305OUTLET SUB-ASSY, WATER BY-PASS
16347GASKET, WATER BY-PASS
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
17111MANIFOLD, INTAKE
17111APLUG, NO.1
L=9,P=1/8
L=14,P=3/8
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
FR
RR
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=44,S=14&21
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=37.4,S=13.7&13.7
L=40,S=15&15
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9017008008
main90170-08008
9017910016
main90179-10016
9161160825
main91611-60825
9161161030
main91611-61030
9165160816
main91651-60816
18 parts on this diagram · 4 diagrams in section
