INDICATOR

0001 1 0002 1

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-22011iTA12,14..3FC197012-197707

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iTA12,14..3FC197012-197707

12V 1.7W,12V 1.7W

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-14030iTA14..RHD..(DLX,ST)197510-197707

main81930-14040iTA14..LHD..(DLX,ST)197510-197707

main81930-14050iTA14..RHD..(DLX,ST)197510-197707

BOOST VENTILATOR ONLY

main81930-14060iTA14..LHD..(DLX,ST)197510-197707

BOOST VENTILATOR ONLY

main81930-14090iTA14..RHD..STD197510-197707

main81930-14100iTA14..LHD..STD197510-197707

main81930-14110iTA14..RHD..STD197510-197707

BOOST VENTILATOR ONLY

main81930-14120iTA14..LHD..STD197510-197707

BOOST VENTILATOR ONLY

main81930-22012iTA1#197012-197207

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11009iTA1#197208-197509

12V 1.5W

main90981-11010iTA1#197012-197707

12V 2W,12V 2W

81943LENS, HEATER CONTROL INDICATOR

main81943-14020iTA1#197208-197509

81945LENS, COOLER CONTROL INDICATOR LAMP

main81943-14030iTA1#197208-197509

81946CASE, LAMP

main81946-14010iTA1#197208-197509

88464BBULB, COOLER INDICATOR LAMP

main90981-11009iTA1#197208-197509

12V 1.5W

9016040018

main90160-40018

9019040018

main90190-40018

9193018010

main91930-18010

9199914010

main91999-14010

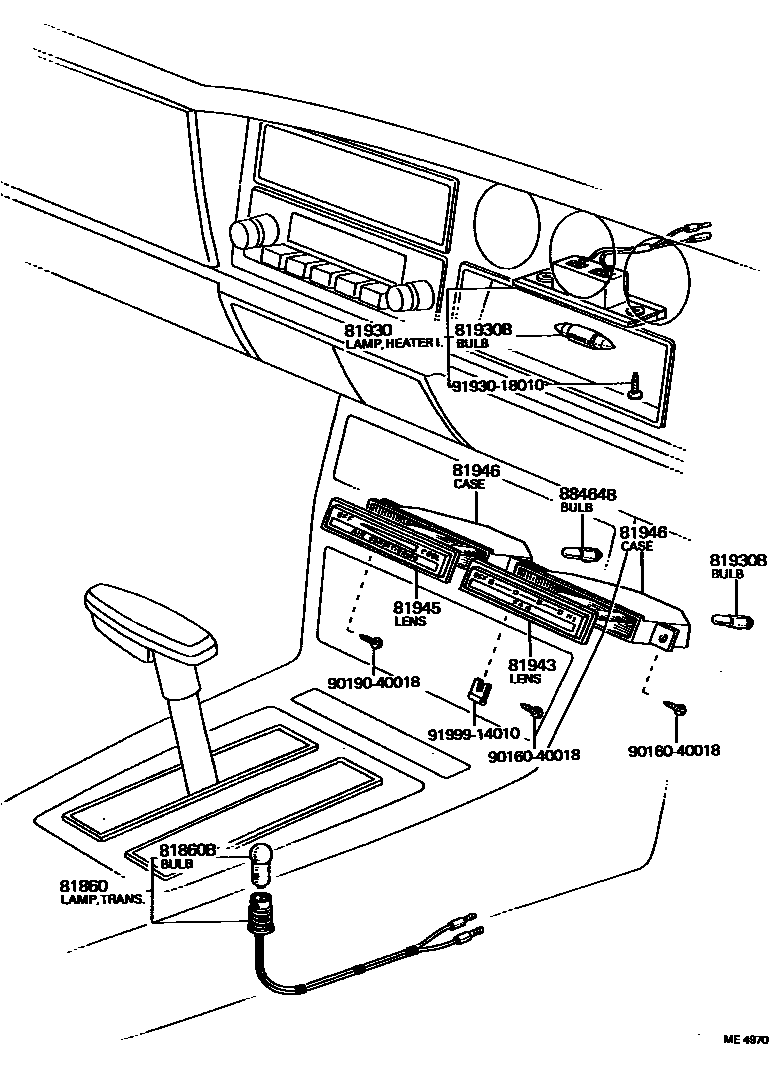

12 parts on this diagram · 2 diagrams in section
