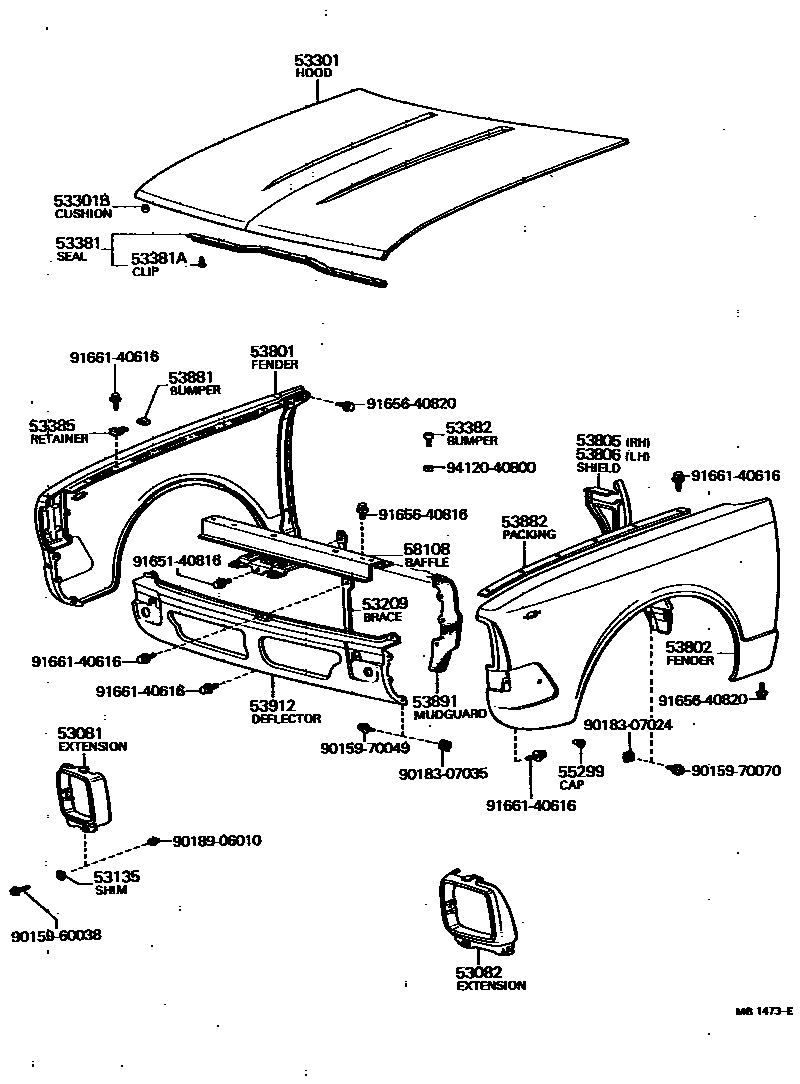

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53081EXTENSION SUB-ASSY, FRONT FENDER, RH

main53122-14020iTA1#197012-197207

main53122-19035iTA1#197208-197509

53082EXTENSION SUB-ASSY, FRONT FENDER, LH

main53123-14020iTA1#197012-197207

main53123-19035iTA1#197208-197509

53135SHIM, HEADLAMP DOOR

main90565-06009×2iTA1#197012-197207

T=1.0

main90565-06010×2iTA1#197012-197207

T=2.0

53209BRACE SUB-ASSY, HOOD LOCK

main53208-14040iTA14197510-197707

main53209-14020iTA1#197208-197509

main53217-14010iTA1#197012-197207

53301HOOD SUB-ASSY

main53301-14010iTA1#197012-197207

main53301-14011iTA1#197208-197509

main53301-14012iTA14197510-197707

53301BCUSHION, HOOD BUMPER

main90541-07075×2iTA1#197012-197207

main90541-07118×2iTA1#197208-197509

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14011iTA14197510-197707

main53381-14901iTA1#197012-197509

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-07050×9iTA1#197012-197509

main90467-08008×7iTA14197610-197707

53382BUMPER, HOOD, FRONT

main53382-20011×2iTA1#197012-197707

53385RETAINER, HOOD, BUMPER

main53385-14010×2iTA1#197012-197707

RH.

main53386-14010×2iTA1#197012-197707

LH.

53801FENDER SUB-ASSY, FRONT RH

main53801-14010iTA1#197012-197509

W/MIRROR HOLE

main53801-14011iTA14197510-197707

W/MIRROR HOLE

main53801-14020iTA1#197012-197408

L/MIRROR HOLE

main53801-14031iTA14197510-197707

L/MIRROR HOLE

main53801-14250iTA1#197408-197509

L/MIRROR HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-14010iTA1#197012-197509

W/MIRROR HOLE

main53802-14011iTA14197510-197707

W/MIRROR HOLE

main53802-14020iTA1#197012-197408

L/MIRROR HOLE

main53802-14031iTA14197510-197707

L/MIRROR HOLE

main53802-14270iTA1#197408-197509

L/MIRROR HOLE

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-14010iTA1#197012-197509

main53807-14040iTA14197510-197707

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-14010iTA1#197012-197509

main53808-14040iTA14197510-197707

53881BUMPER, FENDER TO HOOD

main53384-14010×4iTA1#197012-197707

53882PACKING, FRONT FENDER MAIN

main53882-14010×2iTA1#197012-197509

main53882-14011×2iTA14197510-197606

main53882-14040×2iTA14197608-197707

main53882-20040×2iTA14197606-197608

53891MUDGUARD, FRONT FENDER TO SIDE BAFFLE

main53891-14010×2iTA1#197012-197509

main53891-14011iTA14197510-197707

RH.

main53892-14010iTA14197510-197707

LH.

53912DEFLECTOR, FRONT BUMPER STONE

main53901-14060iTA14197510-197707

main53911-14010iTA1#197012-197207

main53911-14011iTA1#197208-197509

55299CAP, TEE NUT(FOR 6MM)

main55299-30010×2iTA1#197012-197509

58108BAFFLE SUB-ASSY, RADIATOR UPPER

main53027-14010iTA1#197208-197401

main53027-14011iTA1#197401-197509

main53209-14010iTA1#197012-197207

main53216-14012iTA14197510-197707

9015960038

main90159-60038

9015970049

main90159-70049

9015970070

main90159-70070

9018307024

main90183-07024

9018307035

main90183-07035

9018906010

main90189-06010

9165140816

main91651-40816

9165640816

main91656-40816

9165640820

main91656-40820

9166140616

main91661-40616

9412040800

main94120-40800

31 parts on this diagram · 3 diagrams in section
