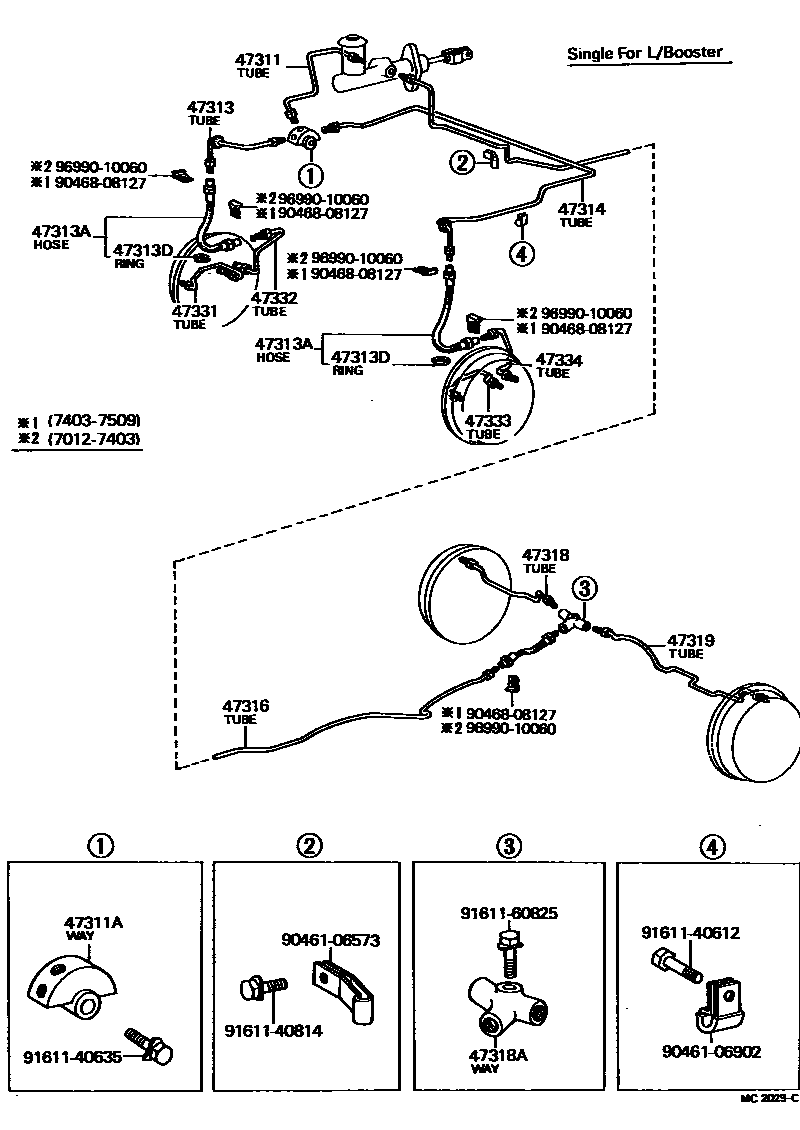

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-14010iTA12..RHD197208-197509

SINGLE M/C

main47311-14020iTA12..RHD197012-197408

TANDEM MASTER

main47311-14021iTA12..RHD197408-197509

TANDEM MASTER

main47311-14030iTA1#..LHD197012-197509

SINGLE M/C

main47311-14040iTA12..LHD197012-197207

TANDEM M/C

main47311-14041iTA14..LHD197510-197707

main47311-14060iTA1#..RHD197012-197207

FOR FRONT DISC BRAKE

main47311-14070iTA1#..LHD197208-197509

SINGLE M/C

main47311-14080iTA12..LHD197208-197509

TANDEM M/C

main47311-14110iTA14..RHD197510-197707

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iTA14197510-197707

main90413-10069iTA1#197012-197509

47313TUBE, FRONT BRAKE, NO.3

main47313-14011iTA12..RHD197208-197509

main47313-14021iTA1#..LHD197012-197207

main47313-14022iTA1#..LHD197208-197309

main47313-14023iTA1#..LHD197309-197509

main47313-14024iTA14..LHD197510-197609

FOR W/P.V.

main47313-14025iTA14..LHD197609-197707

FOR W/P.V.

main47313-14030iTA12..LHD197201-197309

SWEDEN SPEC.

main47313-14031iTA12..LHD197309-197509

SWEDEN SPEC.

main47313-14050iTA14..RHD197510-197707

main47313-14060iTA14..LHD197510-197707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02122×2iTA1#..DLX,STD197012-197403

main90947-02128×2iTA1#197012-197403

DISC BRAKE

main90947-02233×2iTA14197510-197707

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200×4iTA1#197012-197707

47314TUBE, FRONT BRAKE, NO.4

main47314-14011iTA1#..RHD197012-197401

main47314-14012iTA12..RHD197401-197509

main47314-14021iTA1#..LHD197012-197509

main47314-14022iTA14..LHD197510-197707

main47314-14030iTA12..LHD..4F..STD197111-197201

SWEDEN SPEC.

main47314-14050iTA14..RHD197510-197707

47316TUBE, FRONT BRAKE, NO.6

main47315-14020iTA12..LHD197012-197207

main47316-14010iTA1#..RHD197012-197509

main47316-14020iTA1#197208-197509

FOR W/P.V.

main47316-14021iTA14197510-197707

main47316-14030iTA1#..LHD..(DLX,STD)197012-197509

FOR L/P.V.

main47316-14050iTA12..LHD197201-197509

SWEDEN SPEC.

47318TUBE, FRONT BRAKE, NO.8

main47318-14010iTA1#197012-197509

main47318-14011iTA14197510-197703

main47318-14020iTA12..LHD..4F..STD197111-197201

SWEDEN SPEC.

main47318-14041iTA14197703-197707

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10098iTA1#197012-197707

47319TUBE, FRONT BRAKE, NO.9

main47319-14010iTA1#197012-197509

main47319-14011iTA14197510-197703

main47319-14020iTA12..LHD197201-197509

SWEDEN SPEC.

main47319-14041iTA14197703-197707

47331TUBE, REAR BRAKE, NO.10

main47331-14010iTA1#..DLX,STD197208-197509

47332TUBE, REAR BRAKE, NO.11

main47332-14011iTA1#..DLX,STD197208-197509

47333TUBE, REAR BRAKE, NO.12

main47331-14010iTA1#197012-197207

47334TUBE, REAR BRAKE, NO.13

main47334-14011iTA1#197012-197207

9046106573

main90461-06573

9046106902

main90461-06902

9046808127

main90468-08127

9161140612

main91611-40612

9161140635

main91611-40635

9161140814

main91611-40814

9161160825

main91611-60825

9699010060

main96990-10060

22 parts on this diagram · 9 diagrams in section
