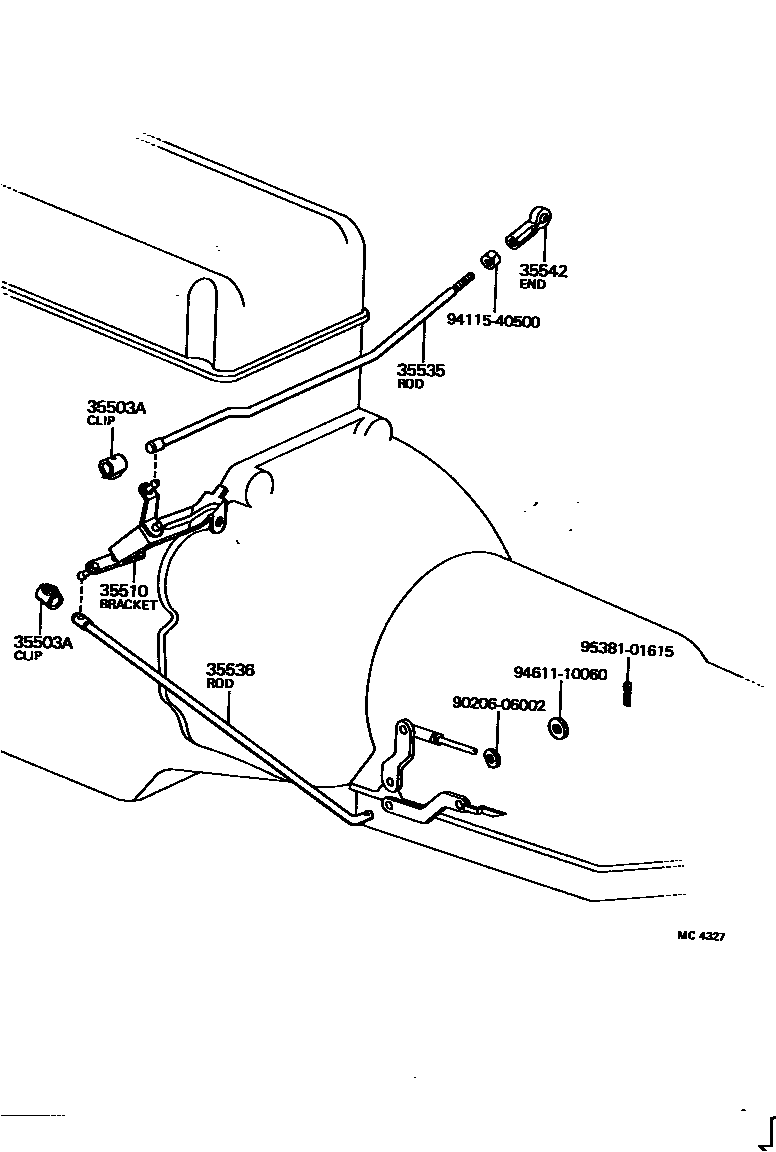

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35503ACLIP(FOR THROTTLE LINK CONNECTING ROD)

main78197-10010iTA12..3FC197012-197308

35510BRACKET ASSY, THROTTLE LINK BELLCRANK, NO.2

main35510-14010iTA12..3FC197012-197104

sub35510-14011

main35510-14011iTA12..3FC197104-197308

35535ROD, THROTTLE LINK CONNECTING, 2ND

main35535-14021iTA12..3FC197012-197308

35536ROD, THROTTLE LINK CONNECTING, 3RD

main35536-14010iTA12..3FC197012-197308

35542END, THROTTLE LINK CONNECTING ROD

main35542-14010iTA12..3FC197012-197308

9020606002

main90206-06002

9411540500

main94115-40500

9461110060

main94611-10060

9538101615

main95381-01615

9 parts on this diagram · 3 diagrams in section
