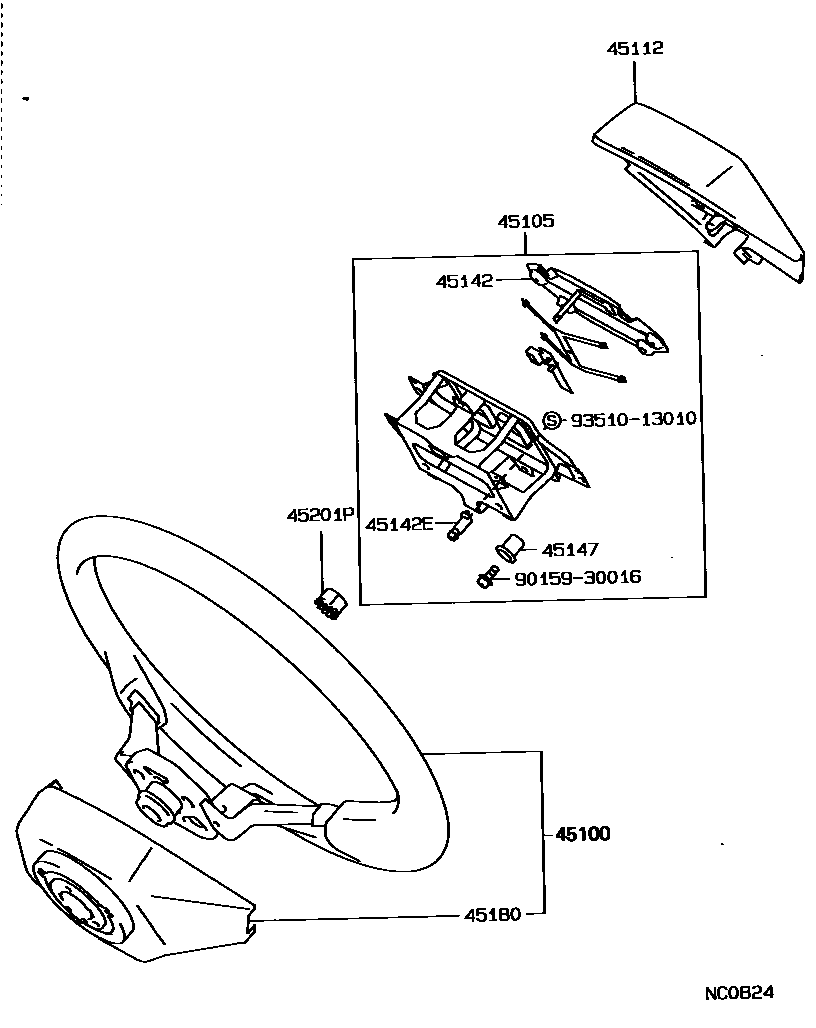

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM2#
sub45100-17250
4-SPOKE,URETHANE,W(CRUISE CONTROL),RED,TRIM3#
sub45100-17250
4-SPOKE,URETHANE,W(CRUISE CONTROL),DARK BLUE,TRIM8#
sub45100-17250
4-SPOKE,LEATHER,POWER & LUXURY & LEATHER PACKAGE,BLACK,TRIM2#
sub45100-17260
4-SPOKE,LEATHER,POWER & LUXURY & LEATHER PACKAGE,RED,TRIM3#
sub45100-17260
4-SPOKE,LEATHER,POWER & LUXURY & LEATHER PACKAGE,DARK BLUE,TRIM8#
sub45100-17260
4-SPOKE,LEATHER,LUXURY PACKAGE & W(CRUISE CONTROL),BLACK,TRIM2#
sub45100-17260
4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#
sub45100-17260
4-SPOKE,LEATHER,LUXURY PACKAGE & W(CRUISE CONTROL),RED,TRIM3#
sub45100-17260
4-SPOKE,LEATHER,W(CRUISE CONTROL),DARK BLUE,TRIM8#
sub45100-17260
4-SPOKE,LEATHER,LUXURY PACKAGE & W(CRUISE CONTROL),DARK BLUE,TRIM8#
sub45100-17260
4-SPOKE,LEATHER,POWER & LUXURY & LEATHER PACKAGE,BLACK,TRIM0#,2#
sub45100-17260
4-SPOKE,LEATHER,POWER & LUXURY & LEATHER PACKAGE,BLACK,TRIM2#
sub45100-17260
4-SPOKE,LEATHER,POWER & LUXURY & LEATHER PACKAGE,DARK BLUE,TRIM8#
sub45100-17260
4-SPOKE,LEATHER,BLACK,TRIM0#,2#
4-SPOKE,LEATHER,W(POWER,LUXURY & LEATHER PACKAGE),BLACK,TRIM0#,2#
4-SPOKE,URETHANE,BLACK,TRIM2#
4-SPOKE,URETHANE,W(*IW),BLACK,TRIM2#
4-SPOKE,LEATHER,W(*IW),BLACK,TRIM0#,2#
4-SPOKE,LEATHER,W(POWER,LUXURY,LEATHER PACKAGE & *IW),BLACK,TRIM0#,2#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
W(*IW)
45112PAD, STEERING WHEEL
45142SEAT, HORN BUTTON CONTACT, NO.1
45147SPACER, HORN BUTTON
45180COVER SUB-ASSY, STEERING WHEEL
9015930016
main90159-30016
9351013010
main93510-13010
10 parts on this diagram · 3 diagrams in section
