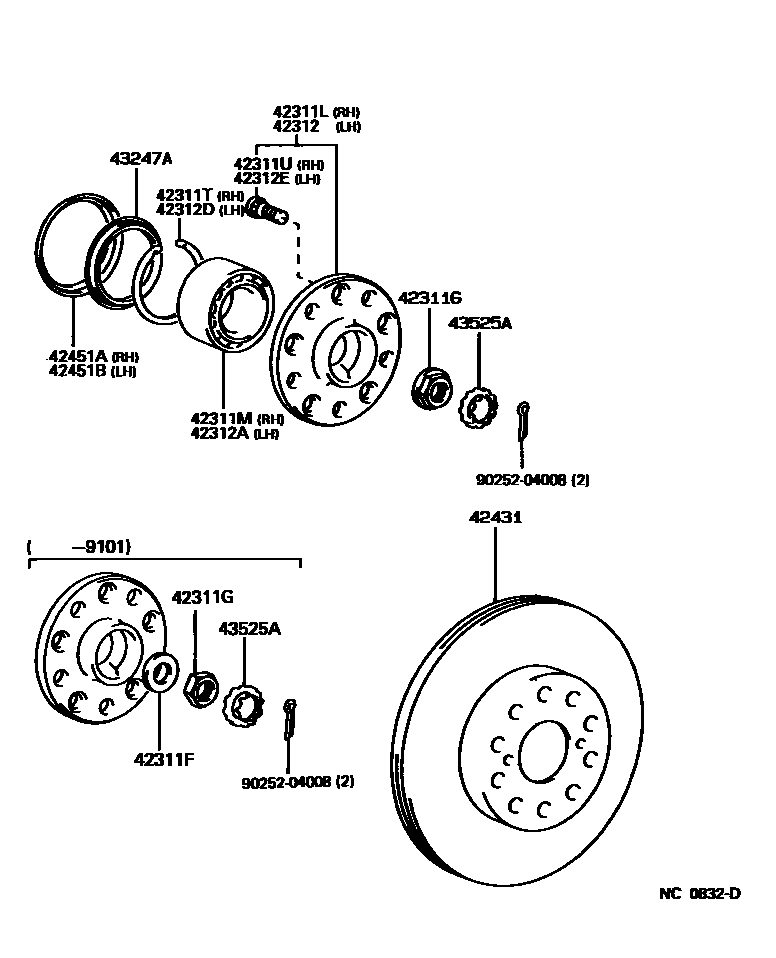

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-20012iSW21199001-199101

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iSW21199001-199101

W(*66)

main90179-22015iSW20199001-199506

main90179-22020iSW21199101-199201

W(*66)

main90179-22020iSW21199101-199506

42311LSHAFT, REAR AXLE, RH

main42301-17010iSW21199001-199506

main42301-17020iSW20199001-199506

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90369-43008iSW2#199001-199506

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90521-88001iSW2#199001-199506

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iSW2#199001-199506

42312SHAFT, REAR AXLE, LH

main42301-17010iSW21199001-199506

main42301-17020iSW20199001-199506

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90369-43008iSW2#199001-199506

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90521-88001iSW2#199001-199506

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iSW2#199001-199506

42431DISC, REAR

main42431-17030iSW21199001-199311

sub42431-17040

main42431-17040iSW21199311-199506

main42431-17060iSW20199208-199506

main42431-17070iSW20199201-199208

sub42431-17060

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main43246-17020iSW2#199001-199506

main43246-17030iSW2#199001-199506

W(*66)

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main43246-17020iSW2#199001-199506

main43246-17030iSW2#199001-199506

W(*66)

43247ADEFLECTOR, REAR WHEEL BEARING DUST, NO.2

main43247-12010iSW2#199001-199506

W(*66)

main43247-32011iSW2#199001-199106

sub43247-33010

main43247-33010iSW2#199106-199506

43525ACAP, REAR WHEEL ADJUSTING LOCK

main42428-14010iSW20199001-199506

main43525-16010iSW21199001-199101

main43525-20030iSW21199101-199506

9025204008

main90252-04008

16 parts on this diagram · 5 diagrams in section
