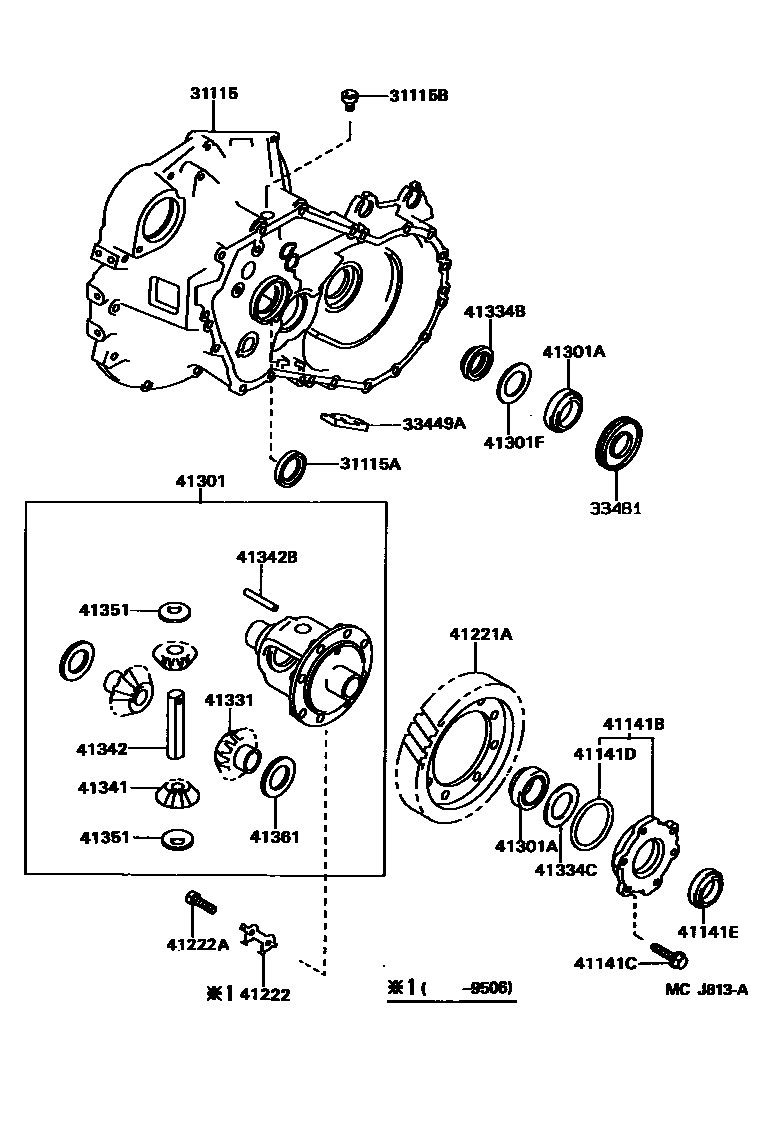

REAR AXLE HOUSING & DIFFERENTIAL
31115CASE, TRANSAXLE
sub31105-32080
sub31115-33010
sub31115-33012
31115BPLUG, TIGHT(FOR REAR TRANSAXLE CASE)
33481GEAR, SPEEDOMETER DRIVE (MTM)
W(LSD)
N=25,NO MARK
N=25
41141BRETAINER, REAR DIFFERENTIAL SIDE BEARING
41141CBOLT(FOR REAR DIFFERENTIAL SIDE BEARING RETAINER)
sub91511-C0825
41141DRING, O(FOR REAR DIFFERENTIAL SIDE BEARING RETAINER)
41221AGEAR, REAR DIFFERENTIAL RING
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
W(LSD)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
RH
LH
LH
RH
RH
41301FSHIM(FOR REAR DIFFERENTIAL CASE)
41331GEAR, REAR DIFFERENTIAL SIDE
W(LSD)
W(LSD),NO.1
W(LSD),NO.2
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.00,MARK 01
T=2.05,MARK 02
T=2.10,MARK 03
T=2.15,MARK 04
T=2.20,MARK 05
T=2.25,MARK 06
T=2.30,MARK 07
T=2.35,MARK 08
T=2.40,MARK 09
T=2.45,MARK 10
T=2.50,MARK 11
T=2.55,MARK 12
T=2.60,MARK 13
T=2.65,MARK 14
T=2.70,MARK 15
T=2.75,MARK 16
T=2.80,MARK 17
T=2.85,MARK 18
T=2.90,MARK 19
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=0.80,W(LSD)
T=0.85,W(LSD)
T=0.90,W(LSD)
T=0.95,W(LSD)
T=1.00,W(LSD)
T=1.05,W(LSD)
T=1.10,W(LSD)
T=1.15,W(LSD)
T=1.20,W(LSD)
T=1.25,W(LSD)
T=1.30,W(LSD)
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
23 parts on this diagram · 4 diagrams in section
