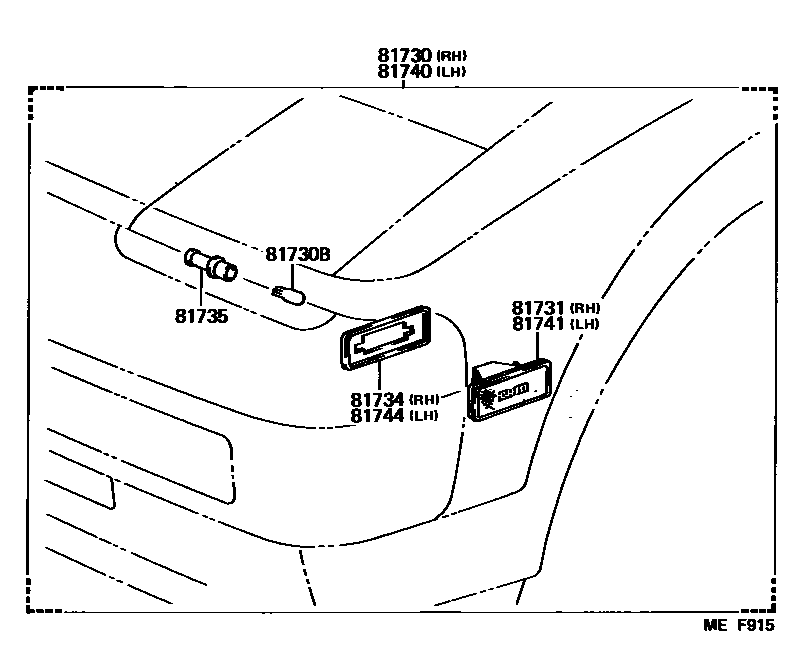

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-17020iAW11198412-198912

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11020×2iAW11198412-198803

12V 3.8W,12V 3.8W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17020iAW11198412-198912

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81734-17020iAW11198412-198803

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180×2iAW11198412-198912

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-17010iAW11198412-198912

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-17010iAW11198412-198912

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81734-17020iAW11198412-198803

8 parts on this diagram · 1 diagram in section
